Cruise Control Servo Cable: Service and Repair

SPEED CONTROL CABLE






Removal

1. Remove the accelerator cable snow shield.

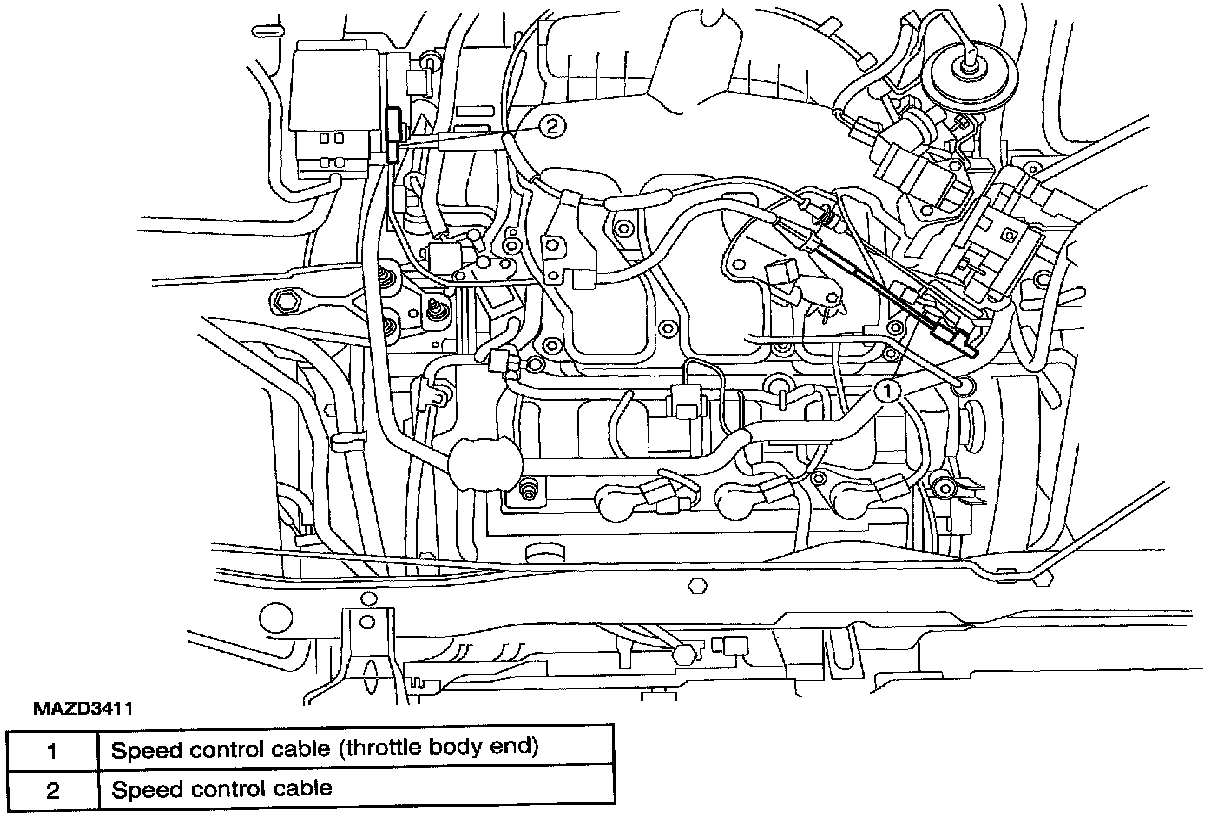

2. Disconnect the cruise control cable from the throttle body.

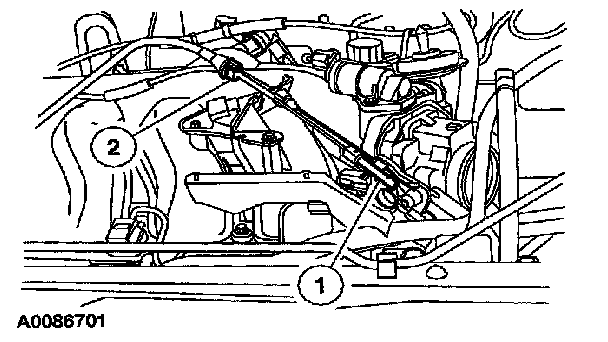

1. Disconnect the cruise control cable from the throttle lever.
2. Disconnect the cruise control cable from the accelerator cable bracket.

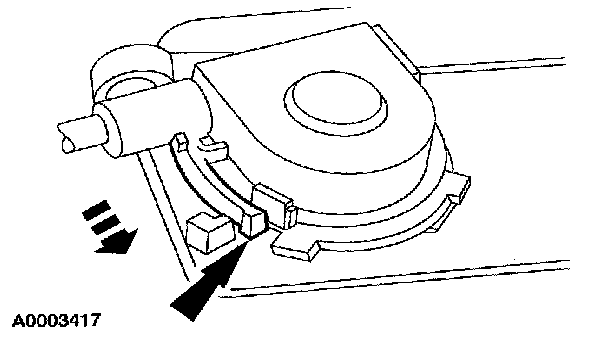

3. Press the locking tab and rotate the cruise control cable cap to remove.




4. Disconnect the cruise control cable from the cruise control actuator pulley.

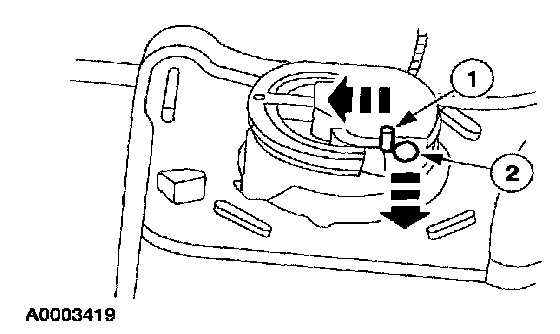

1. Gently push the retaining spring.
2. Disconnect the cruise control cable slug from the cruise control actuator pulley.

Installation




1. Insert the cruise control cable slug into the cruise control actuator pulley slot.

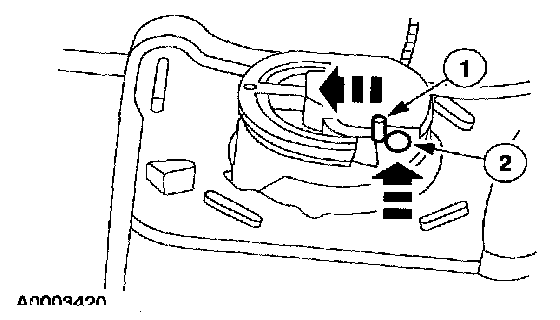

1. Gently push the retaining spring.
2. Insert the cruise control cable slug completely into the cruise control actuator pulley slot.






CAUTION: It is necessary to squarely seat the cruise control cable cap and seal around the cruise control actuator pulley.

CAUTION: Incorrect wrapping of the cruise control cable around the cruise control actuator pulley may result in high idle conditions.

NOTE: Make sure the rubber seal is fully seated onto the cruise control cable cap.

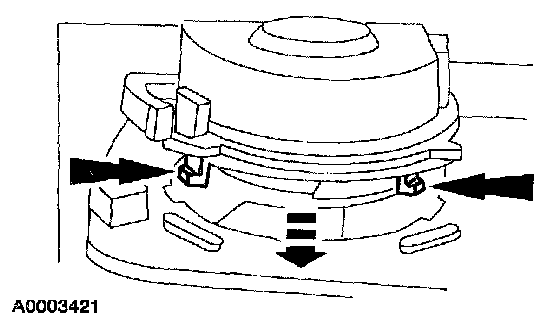

2. Align the cruise control cable cap tabs with the slots in the cruise control actuator housing.

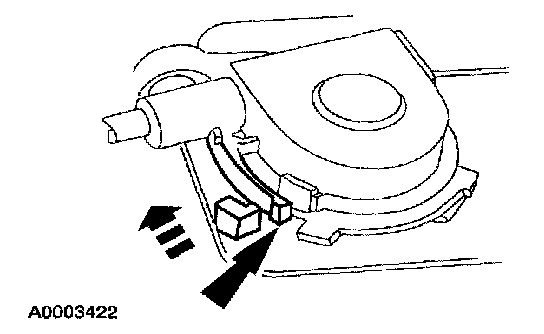

3. Rotate the cruise control cable cap until the locking tab engages.

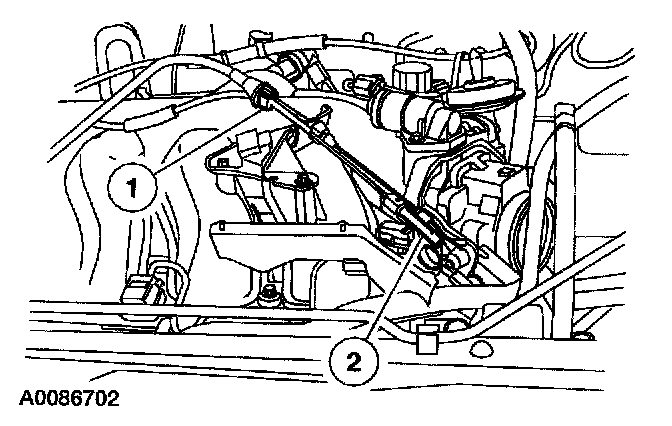

4. Connect the cruise control cable to the throttle body.
1. Connect the cruise control cable to the accelerator cable bracket.
2. Connect the cruise control cable to the throttle lever.
