Test 3: Intermittent

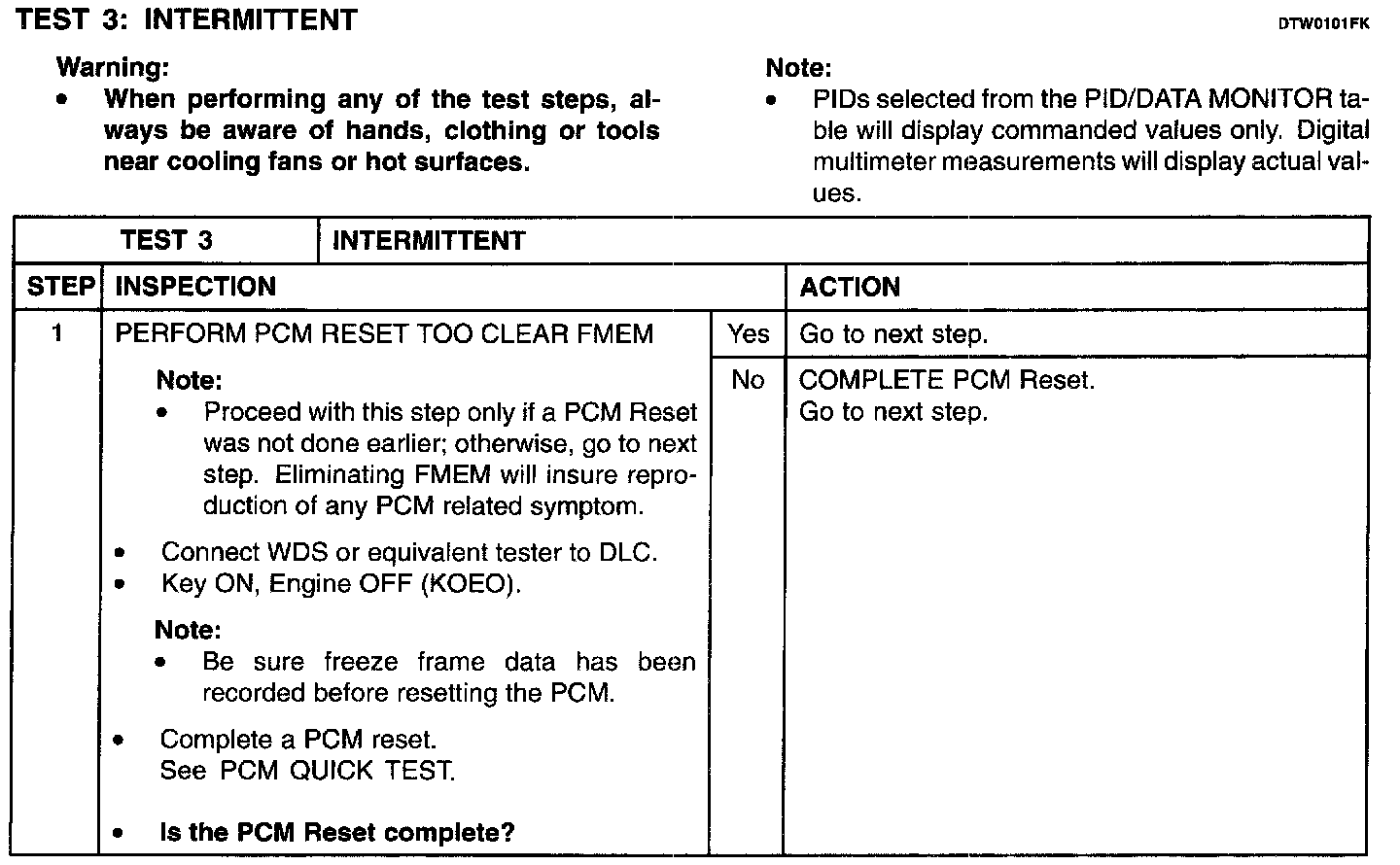

Step 1:

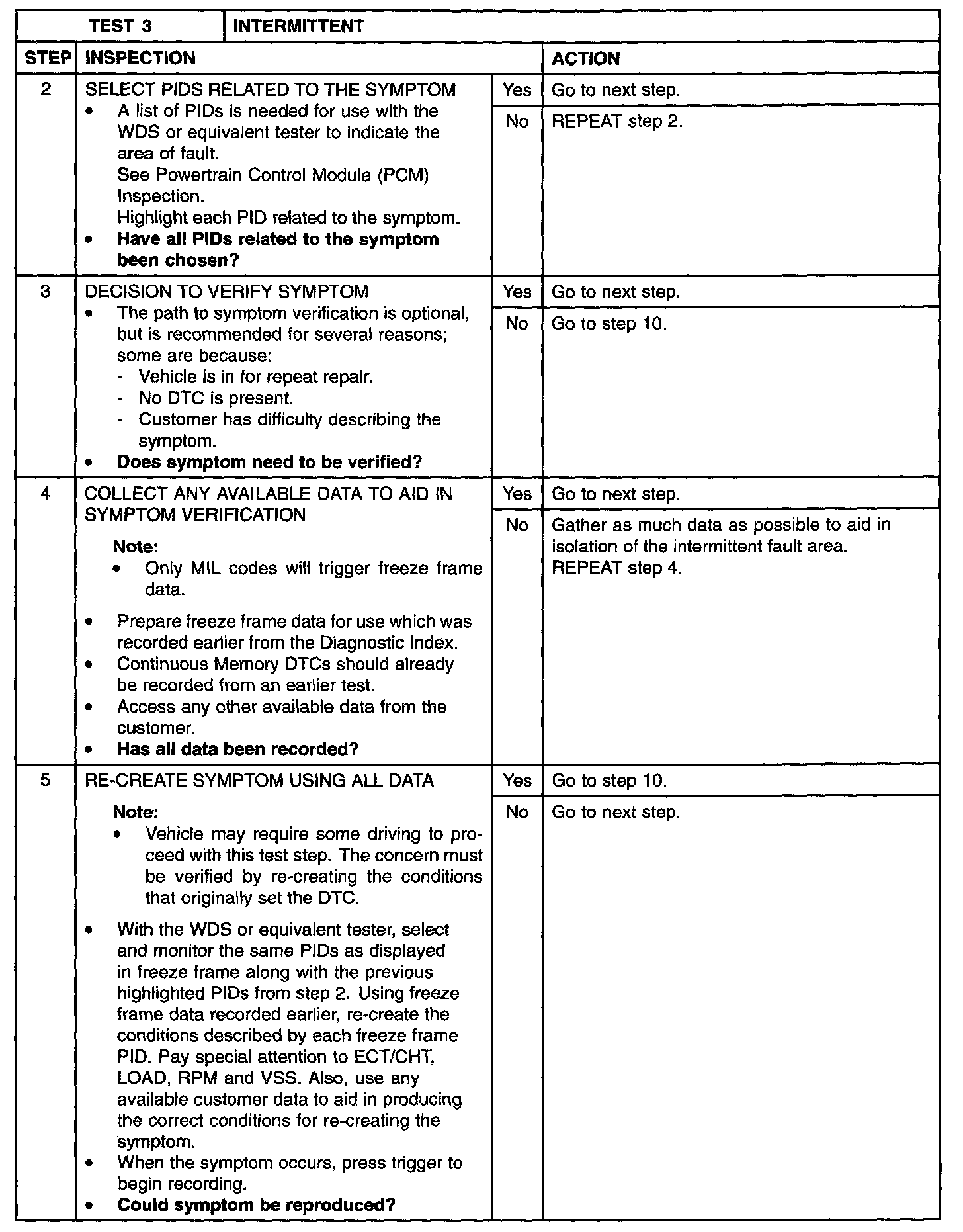

Step 2 - 5:

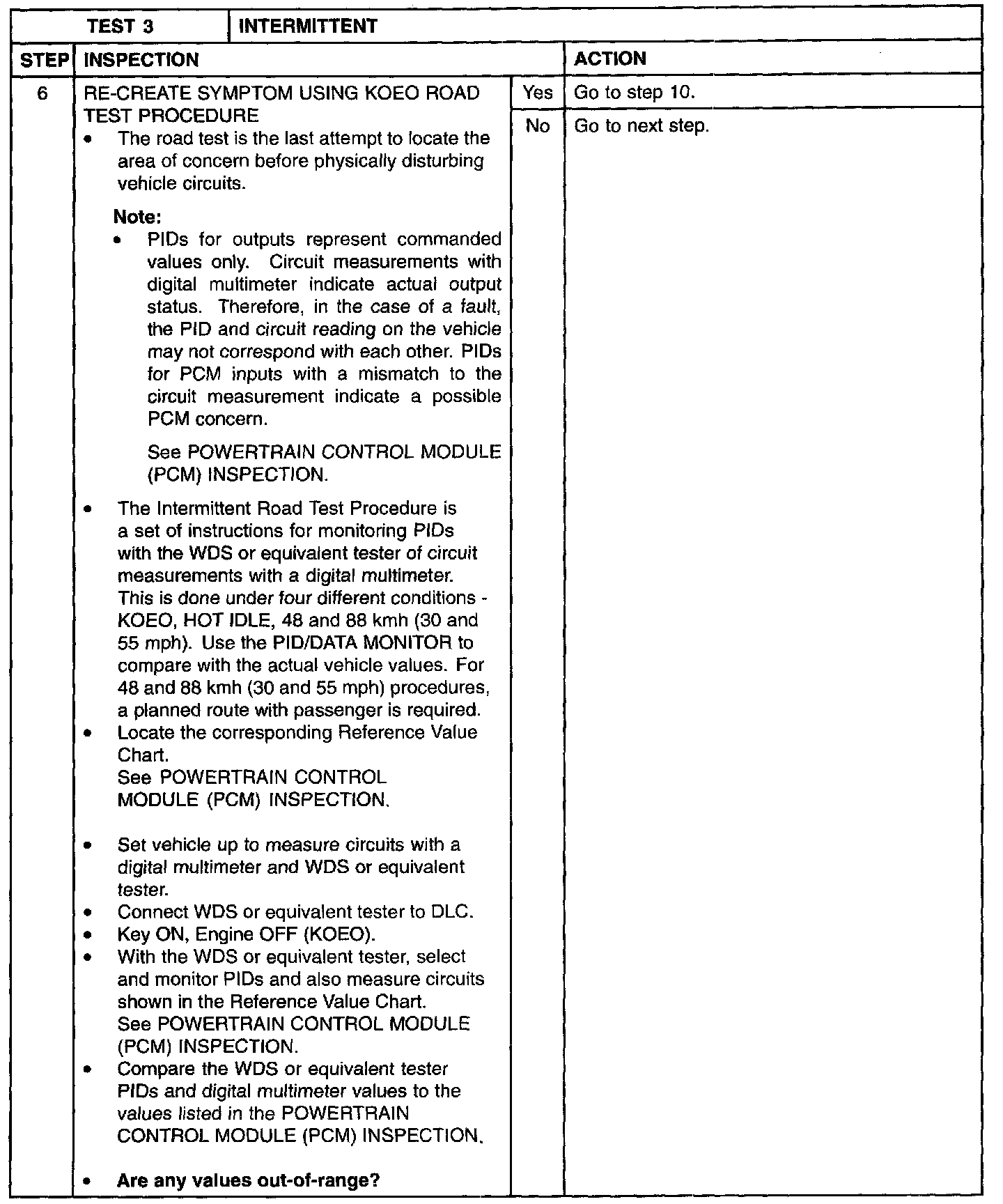

Step 6:

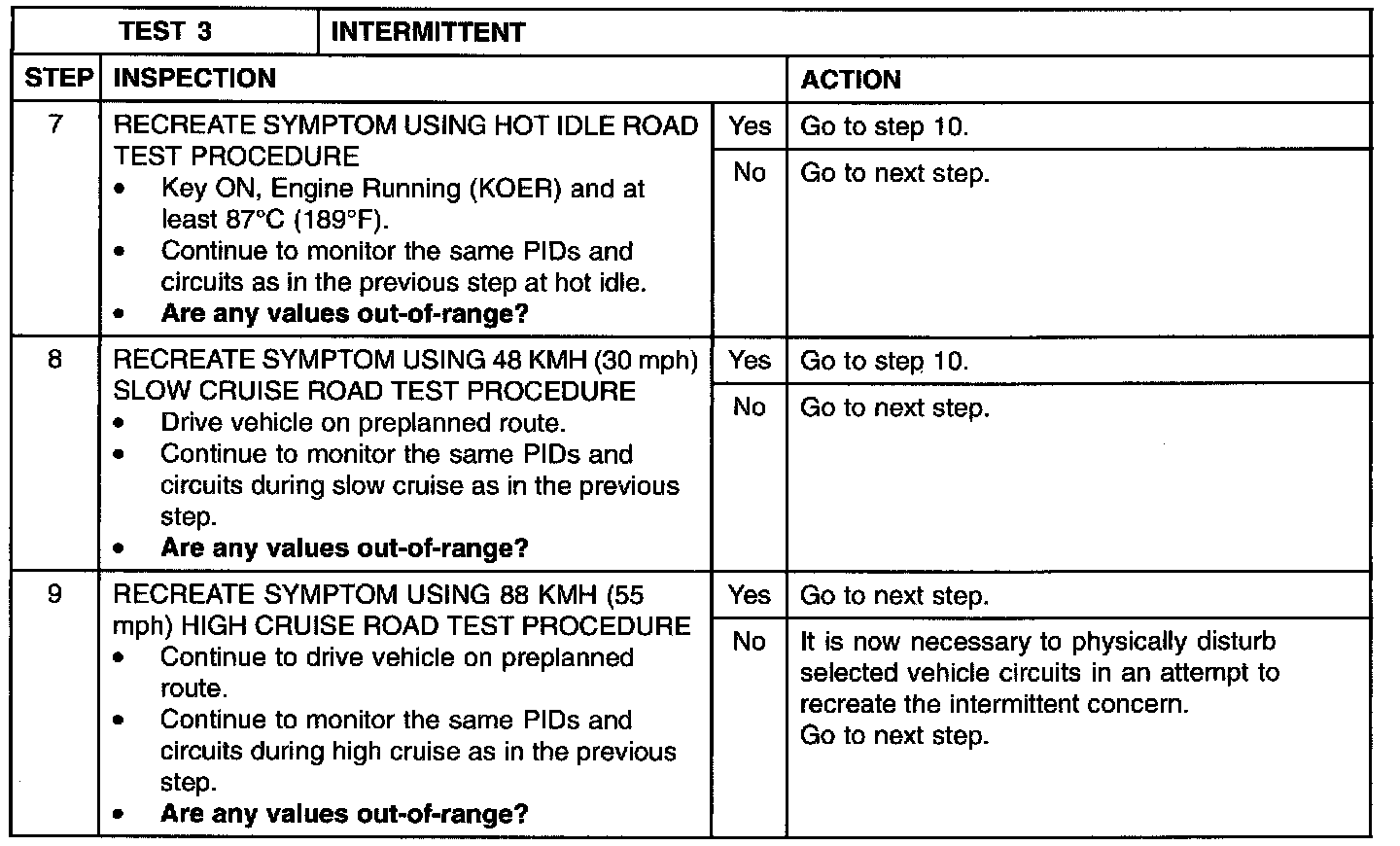

Step 7 - 9:

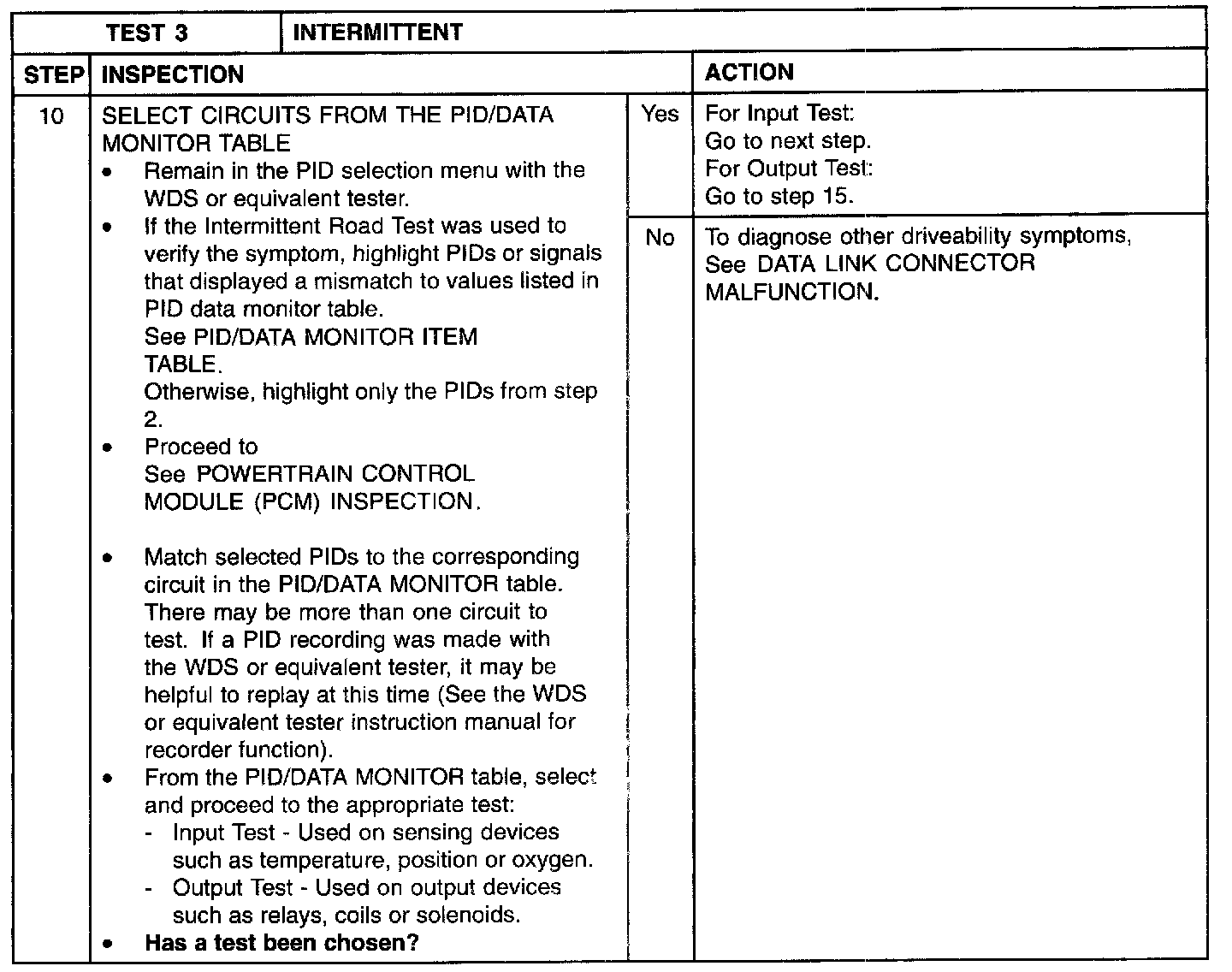

Step 10:

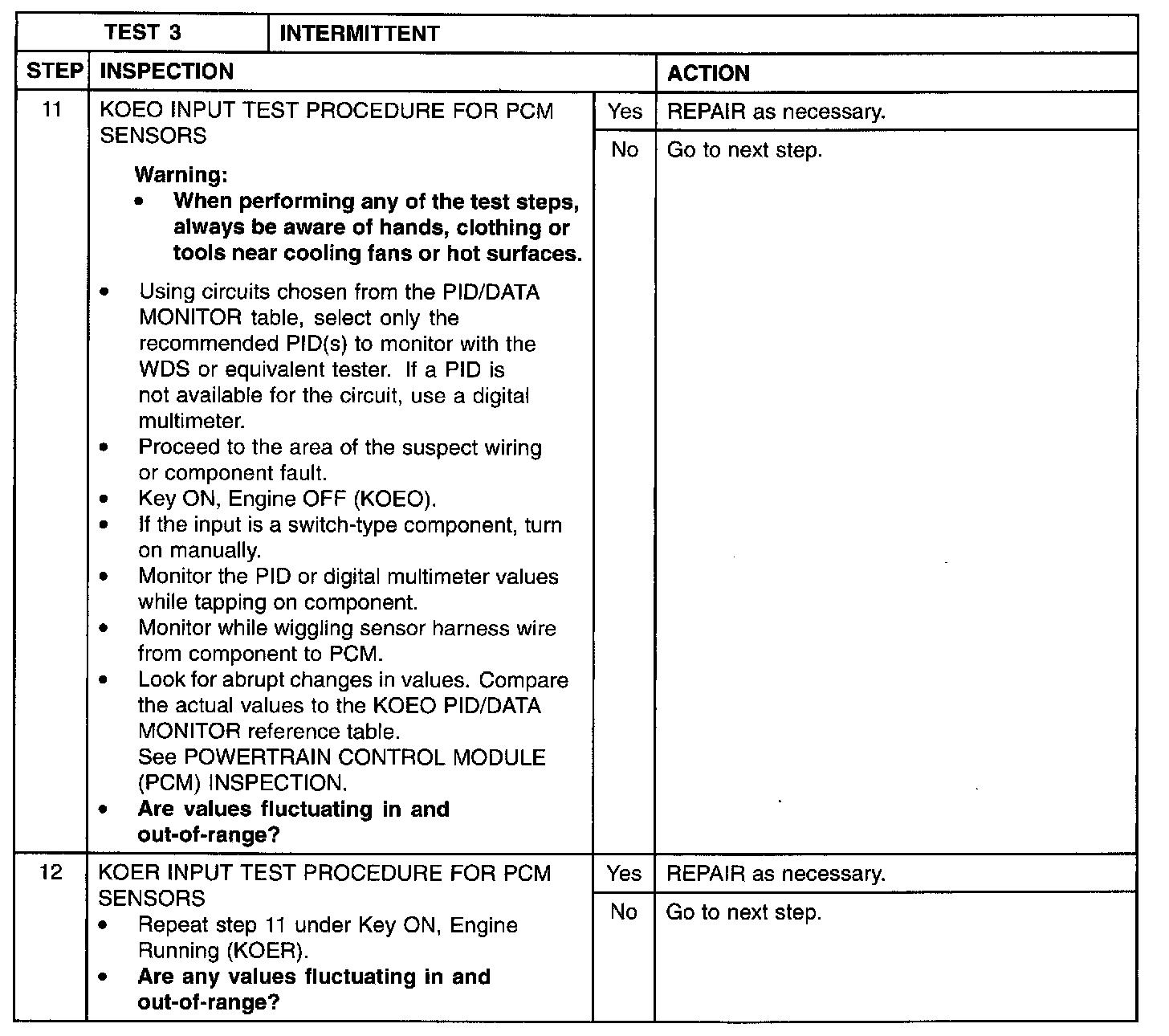

Step 11 - 12:



Step 13 - 14:

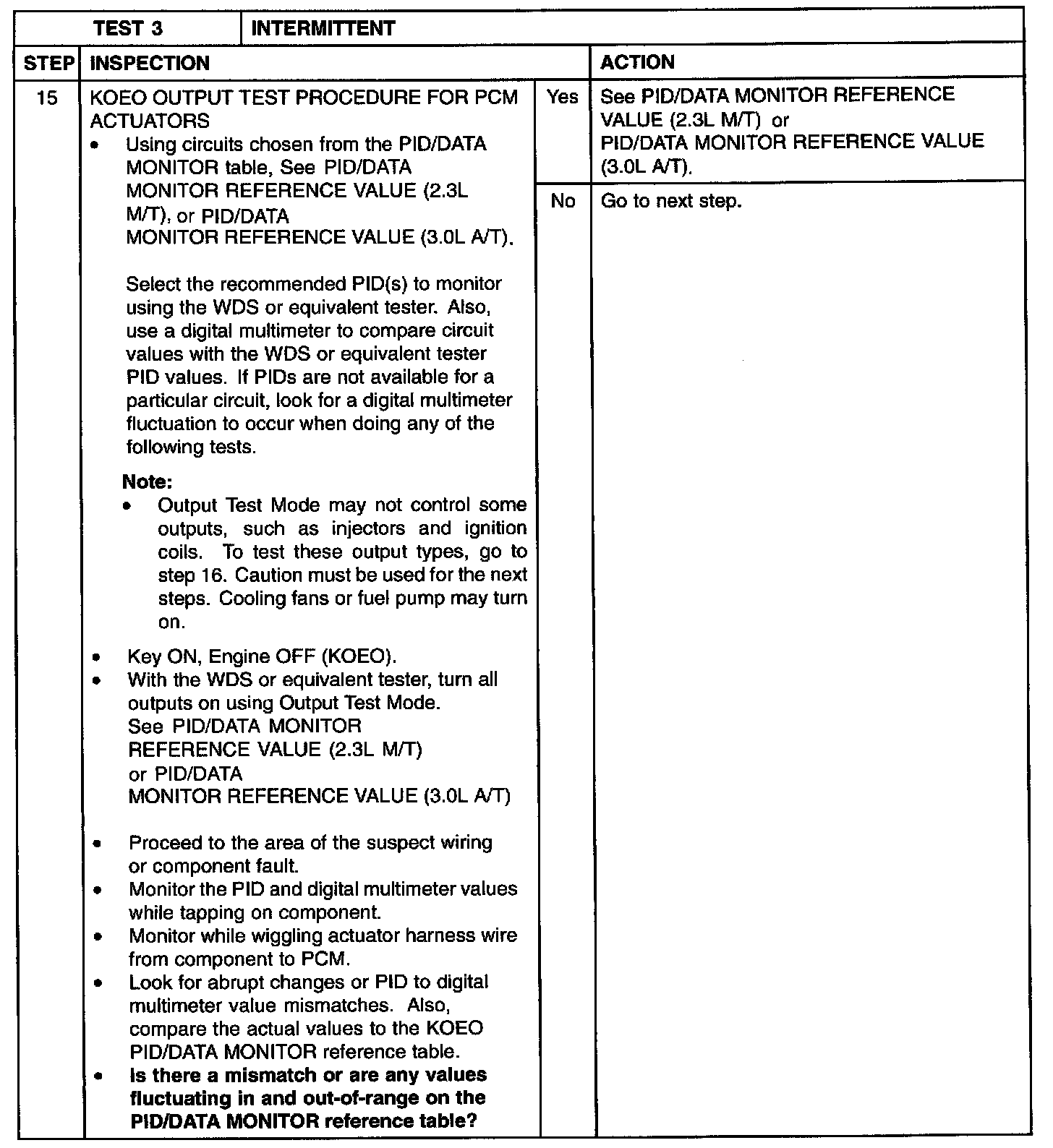

Step 15:

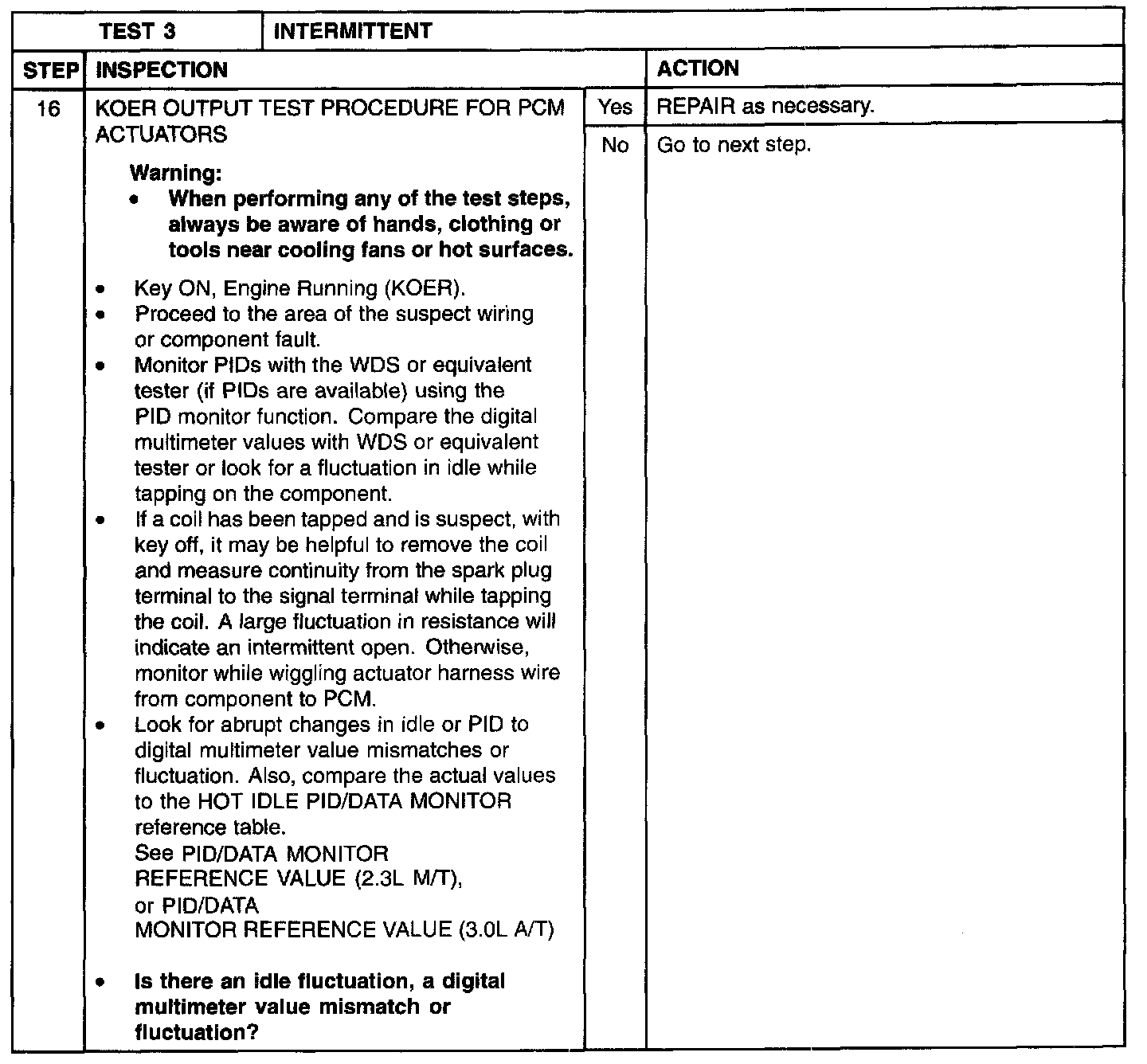

Step 16:

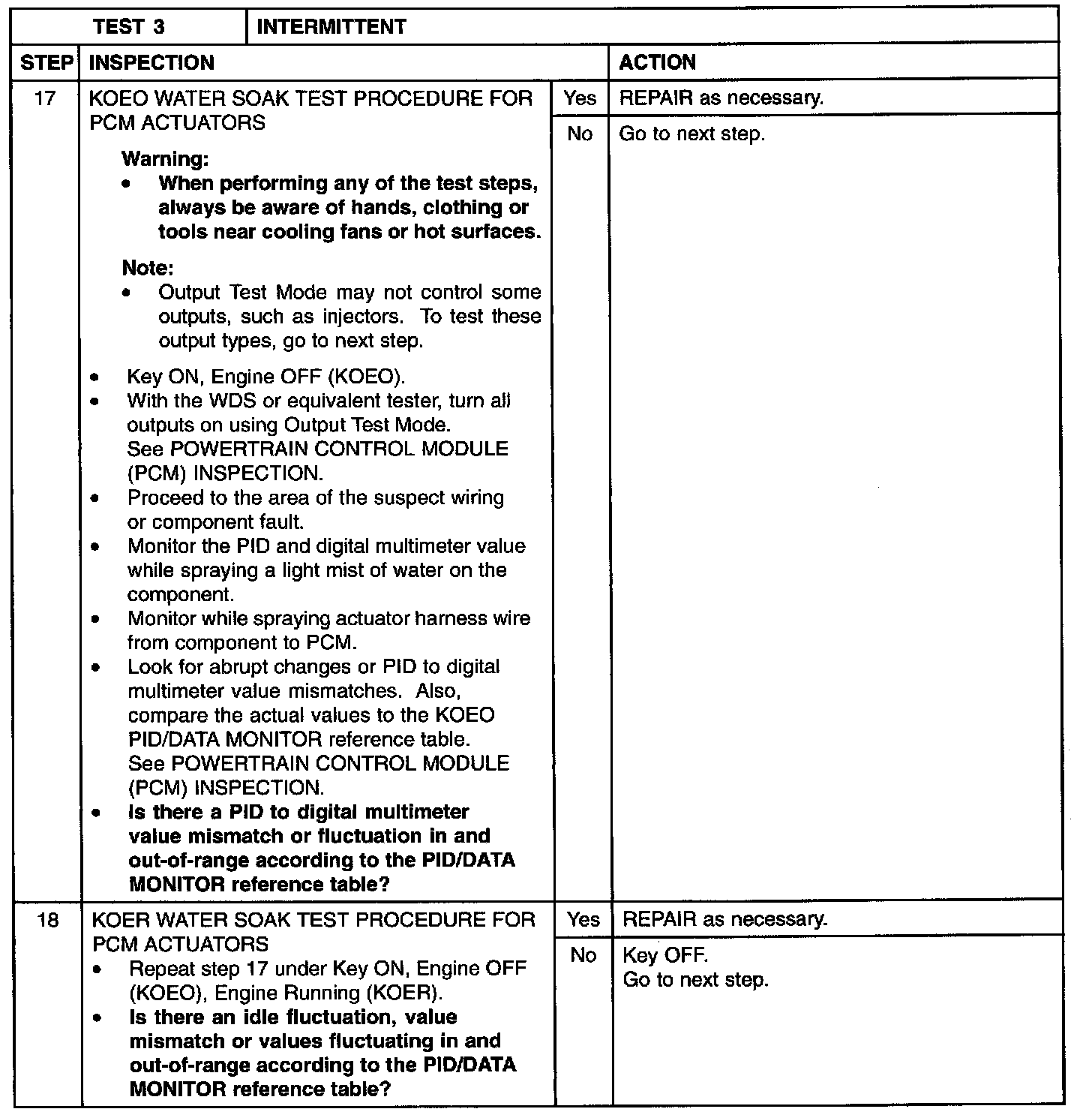

Step 17 - 18:



Step 19:
