Normal Scan Data Values

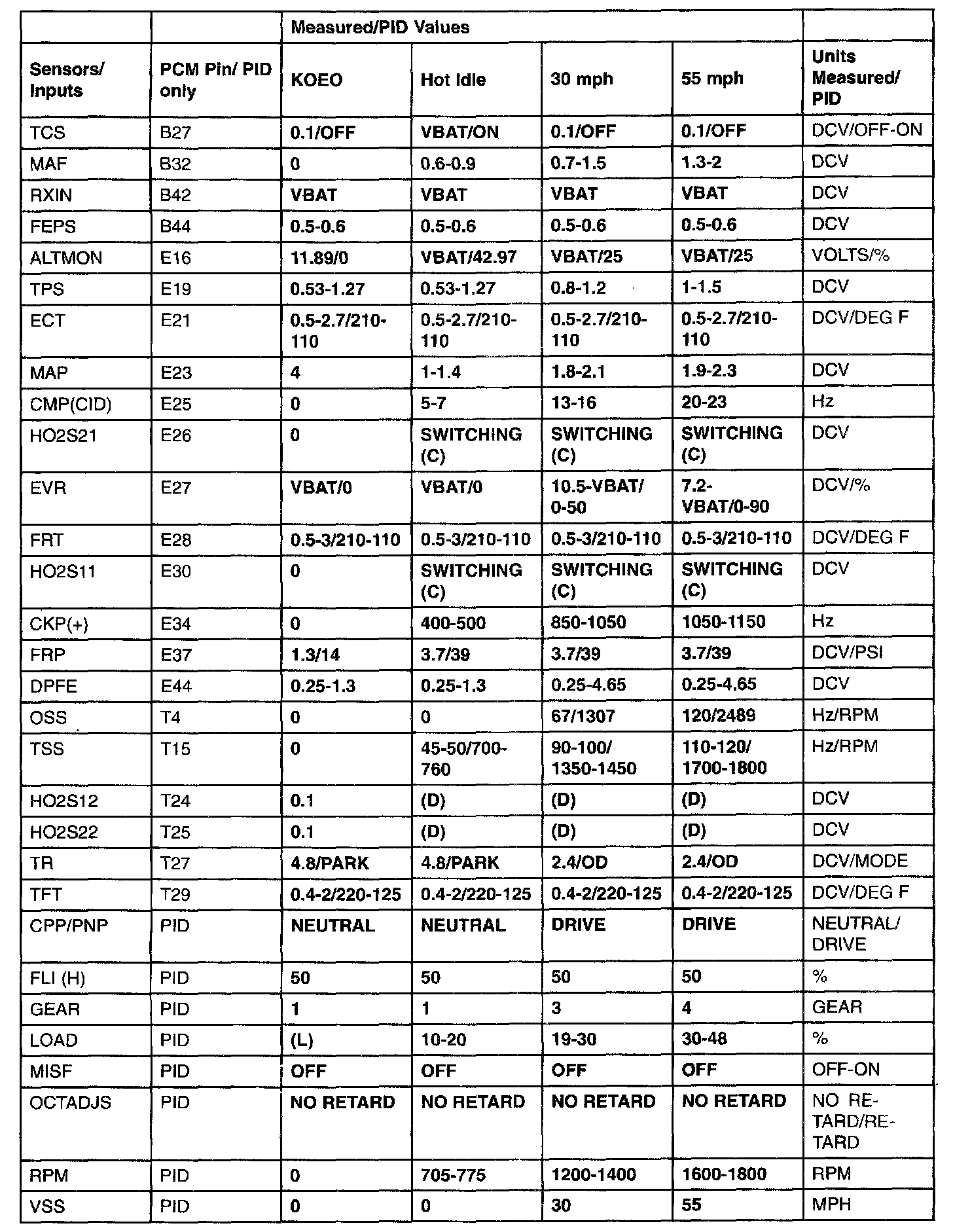

PID/Data Monitor Reference Value Part 1:
PID/Data Monitor Reference Value Part 2:

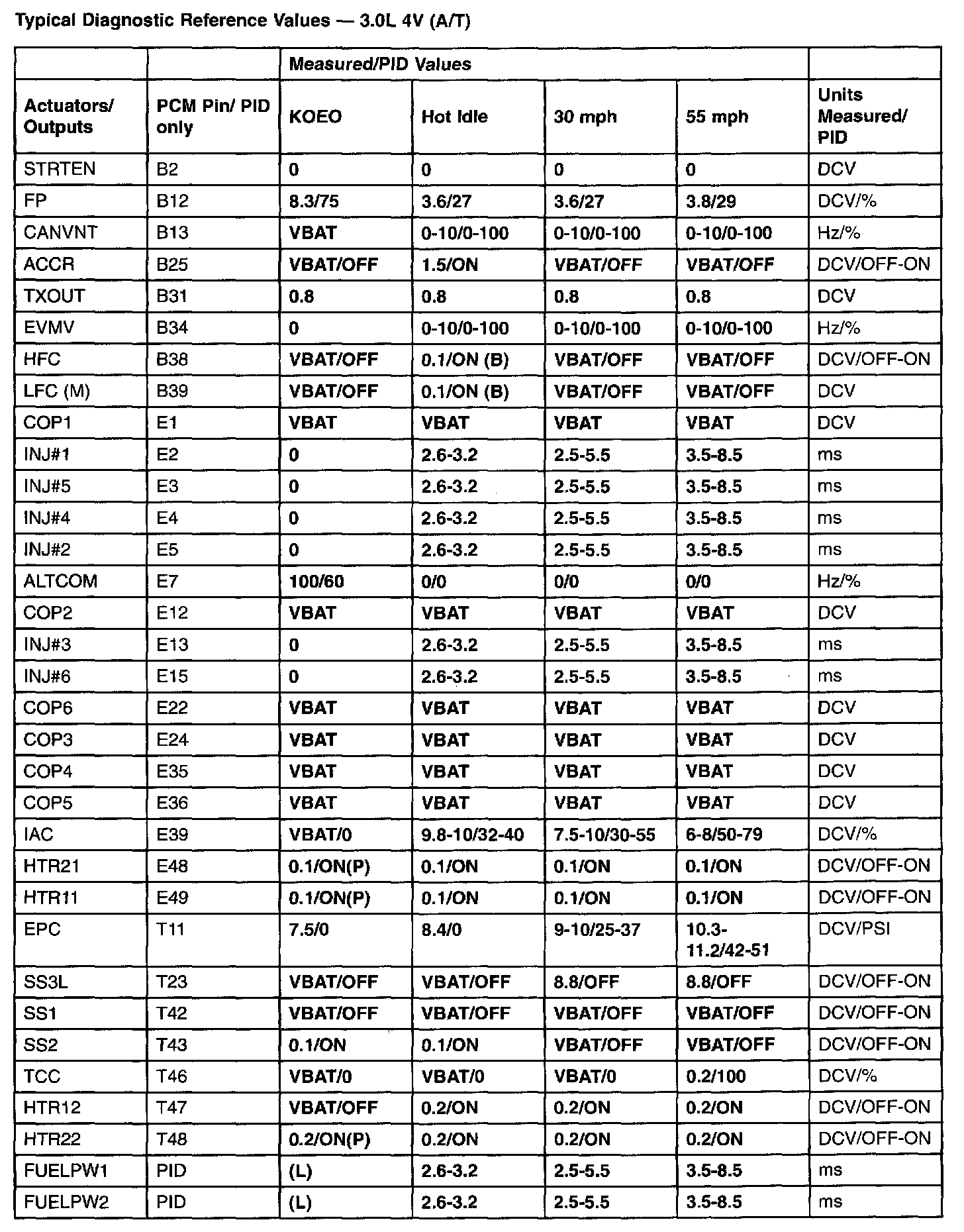

Typical Diagnostic Reference Values Part 1:

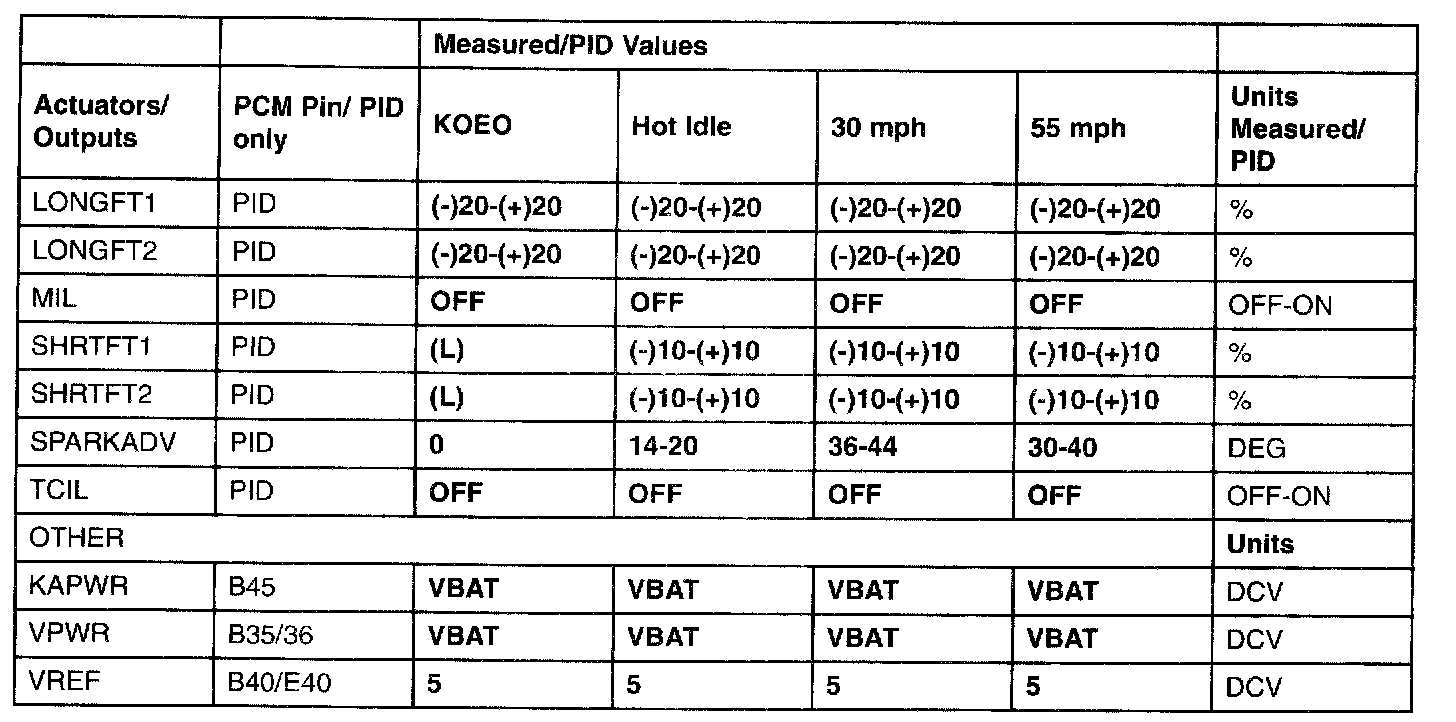

Typical Diagnostic Reference Values Part 2:

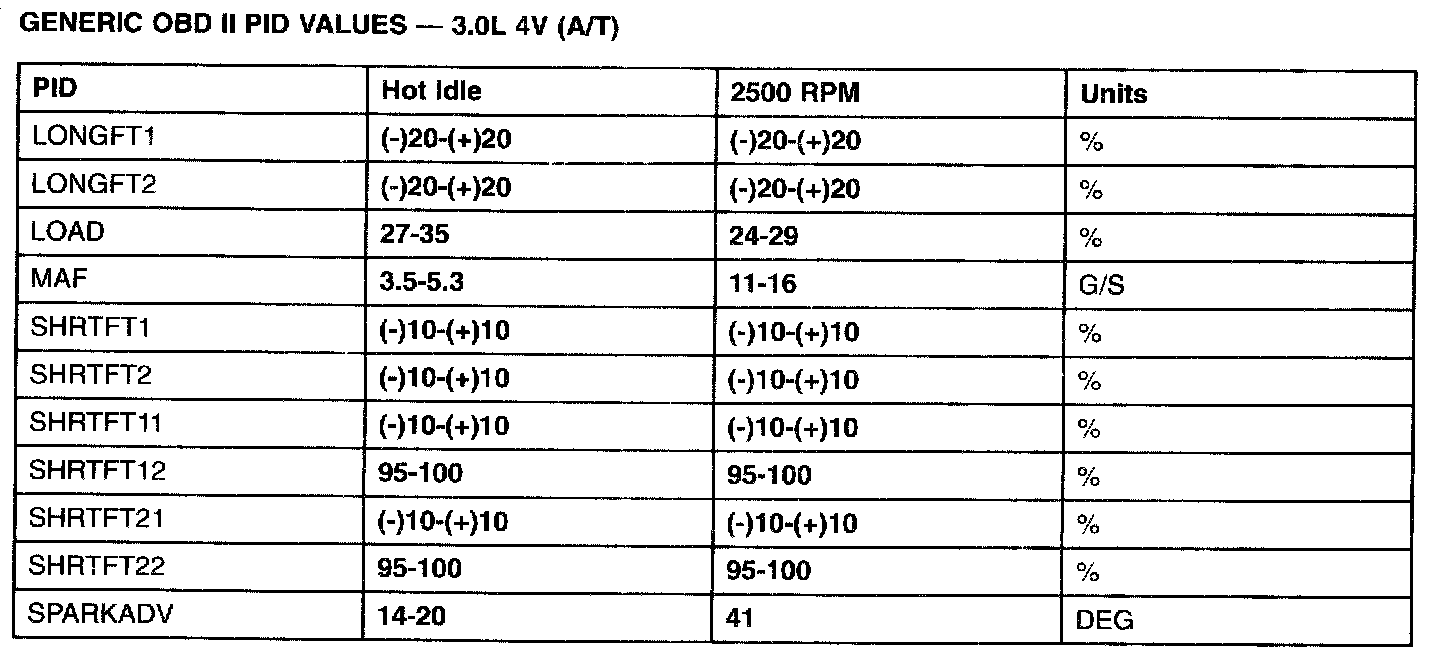

Generic OBD II PID Values:

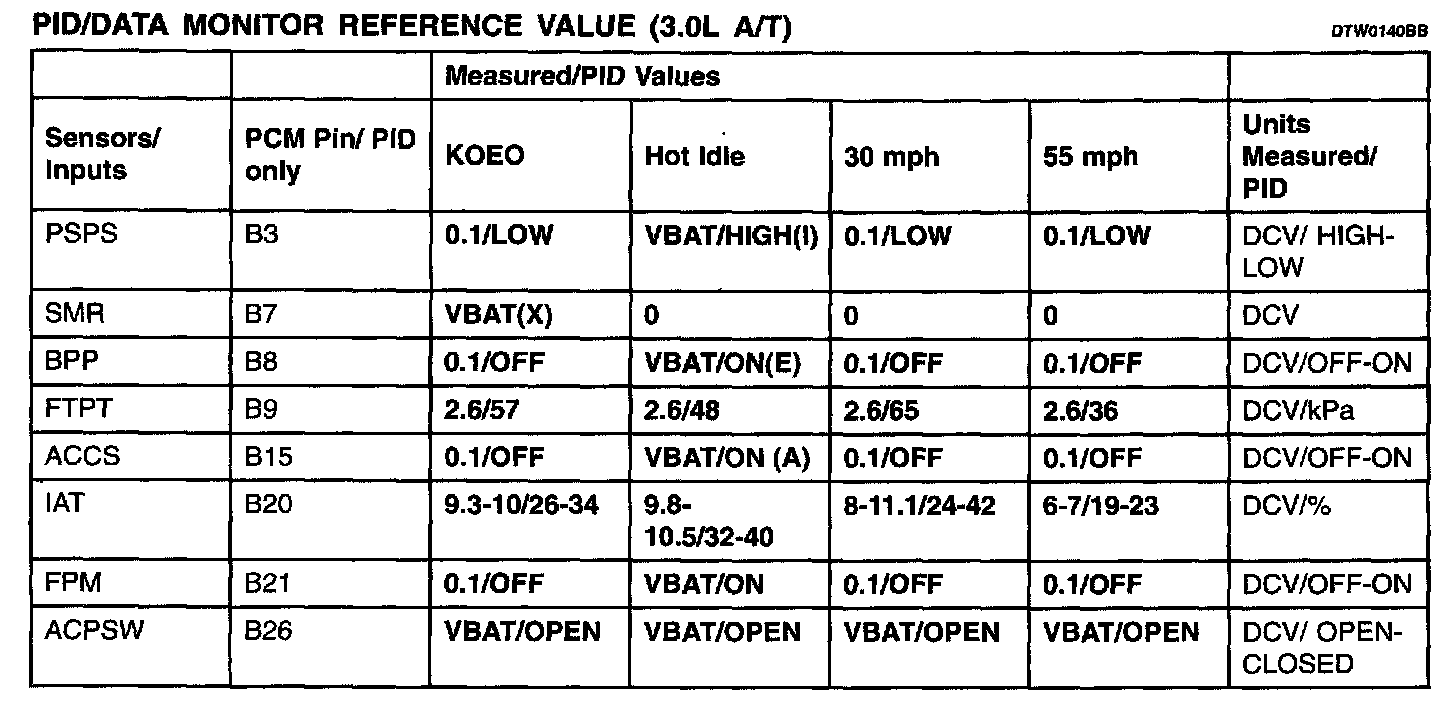

PID/DATA Monitor Reference Value

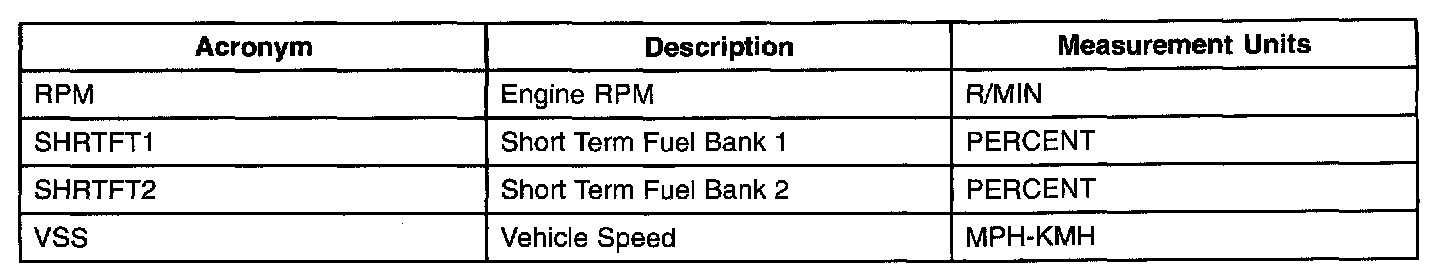

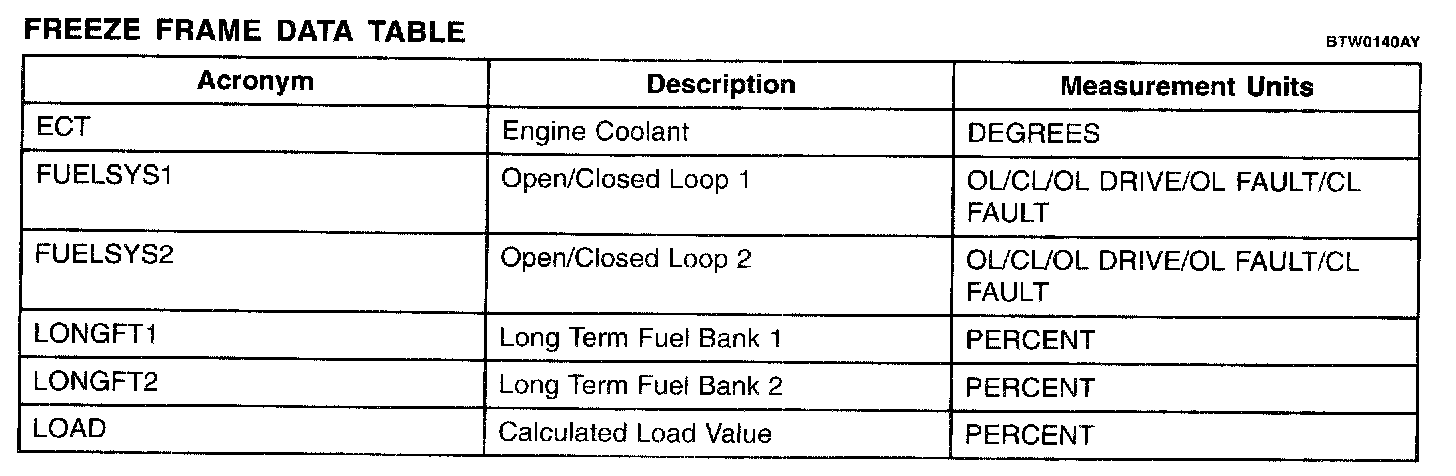

Freeze Frame Data Table Part 1:
Freeze Frame Data Table Part 2:
Freeze Frame Data Table
