PID/Data Monitor Item Table

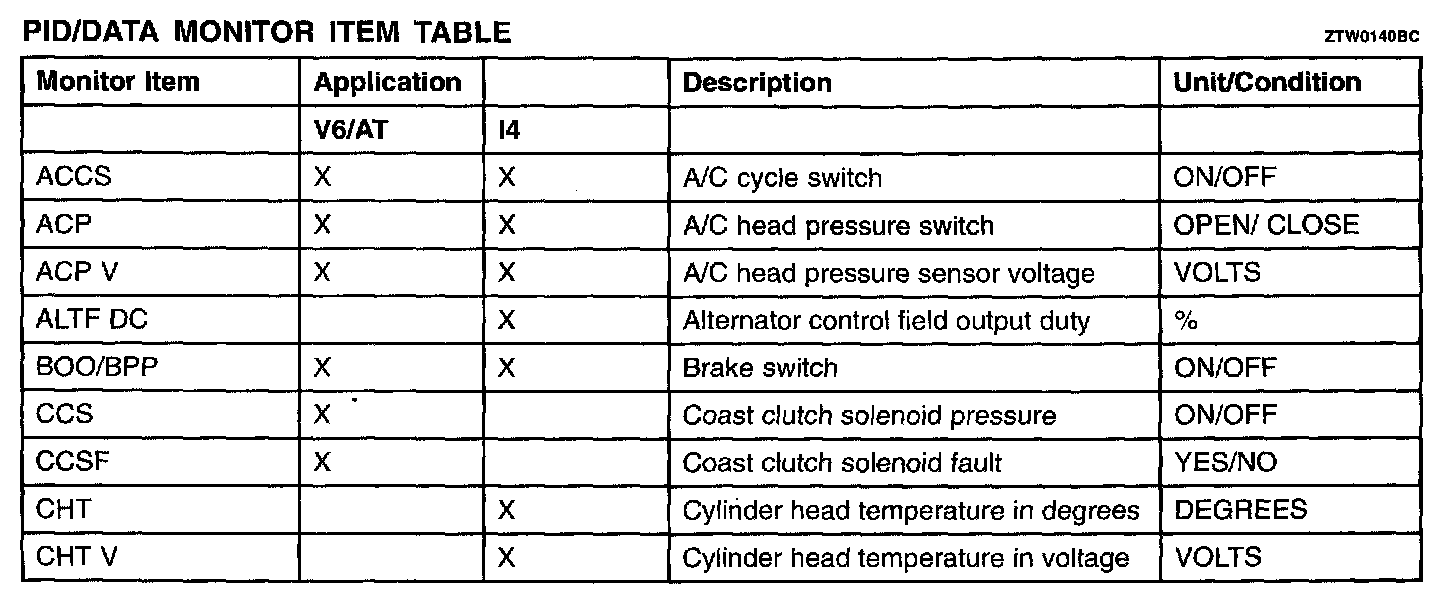

PID/Data Monitor Item Table Part 1:

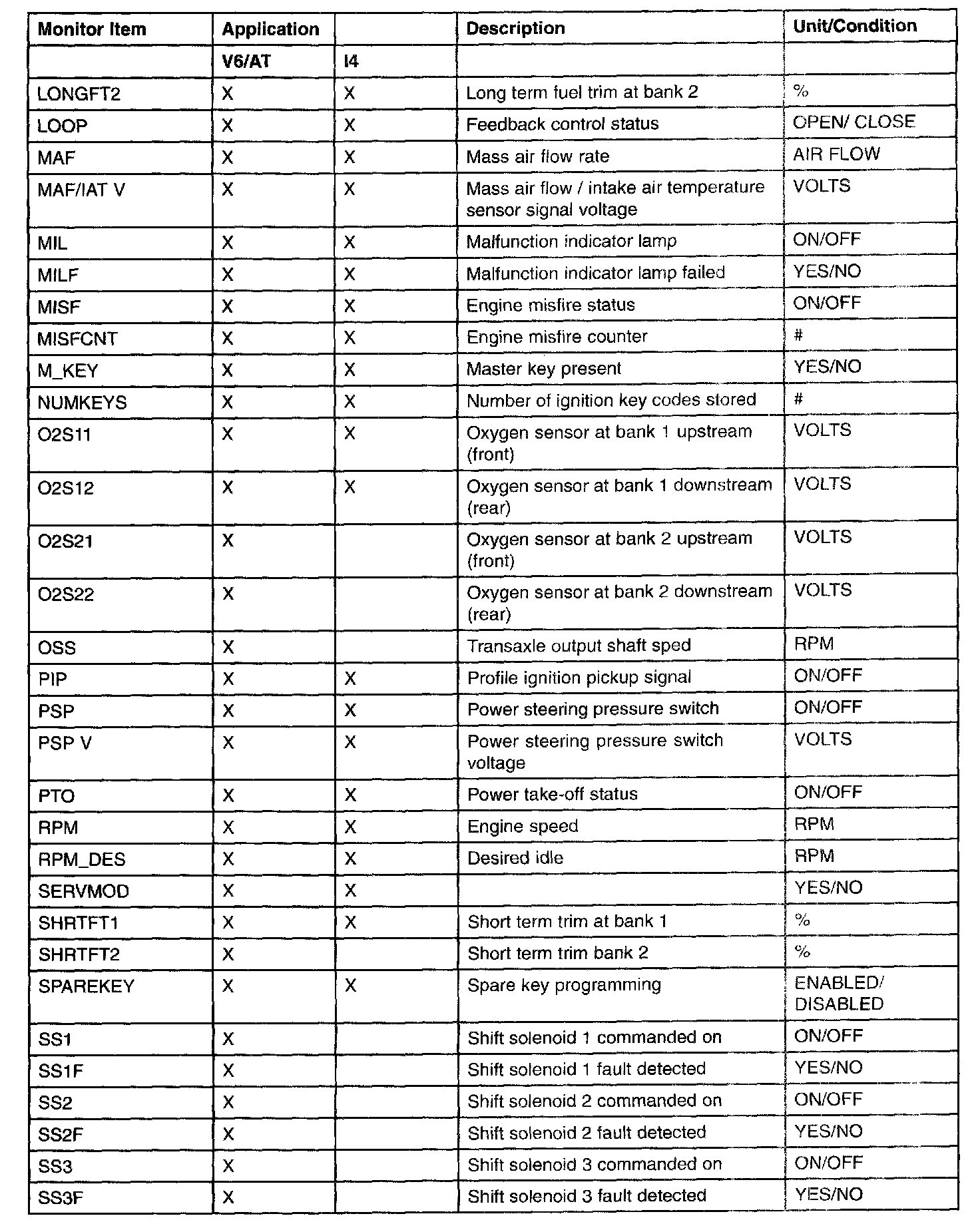

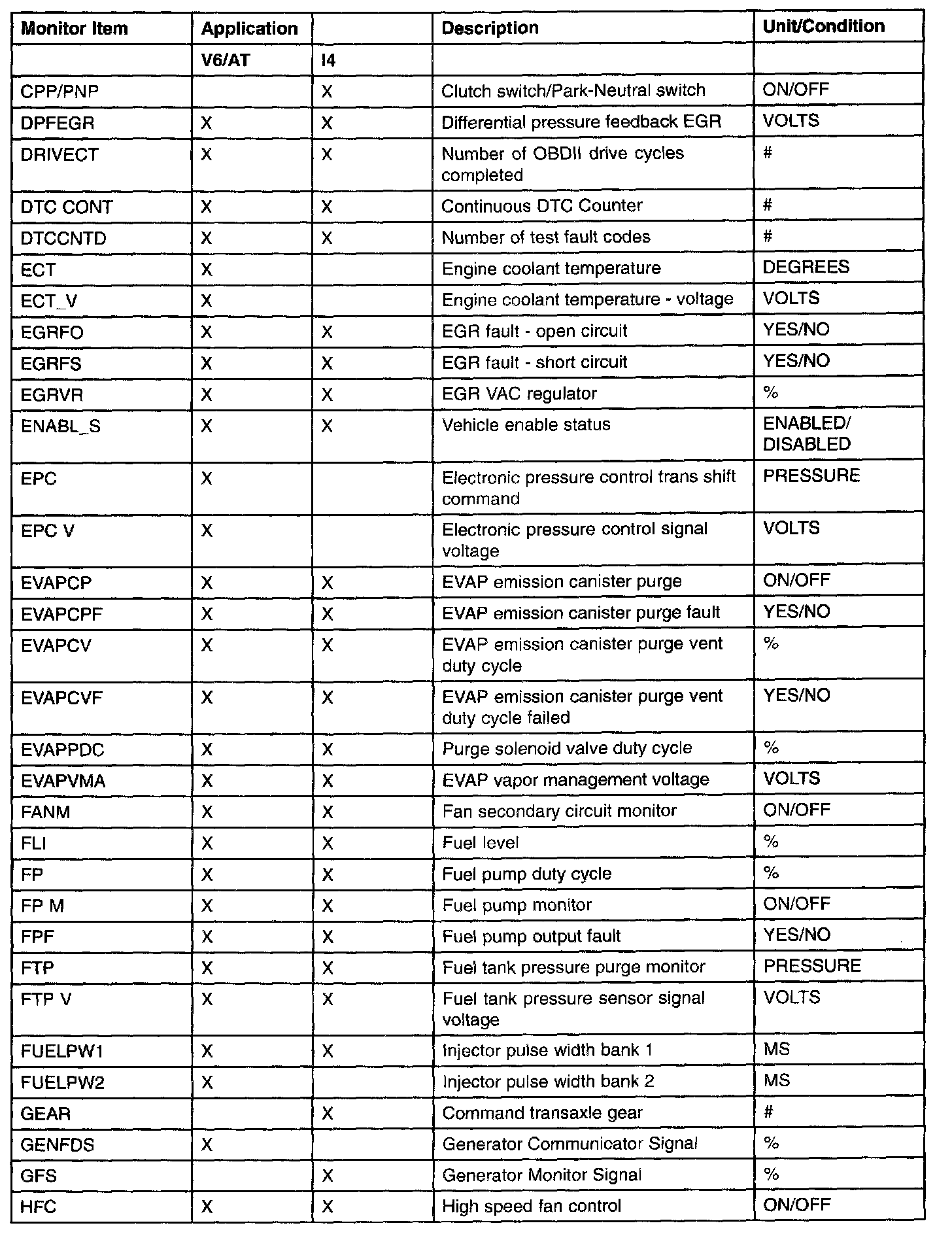

PID/Data Monitor Item Table Part 2:

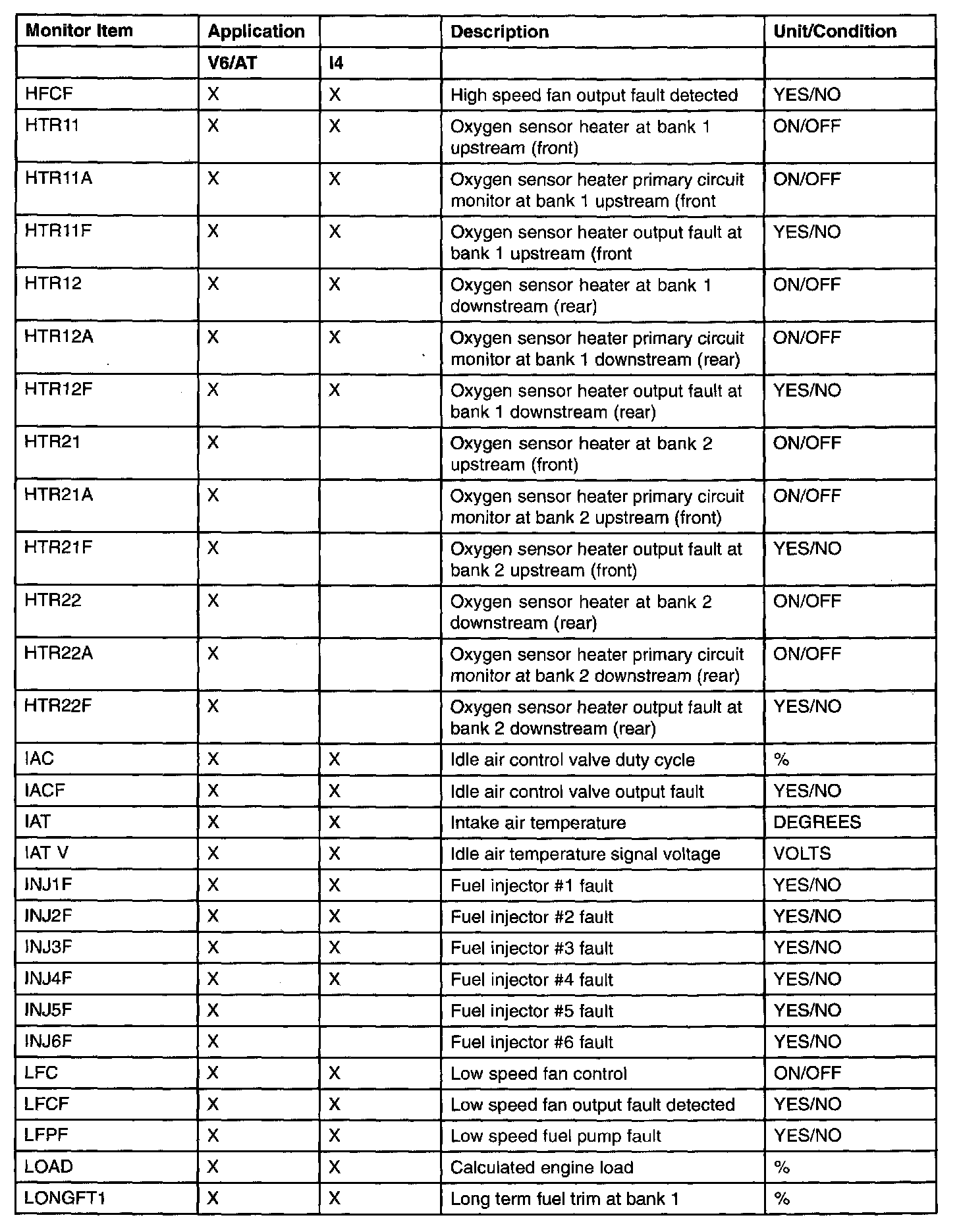

PID/Data Monitor Item Table Part 3:

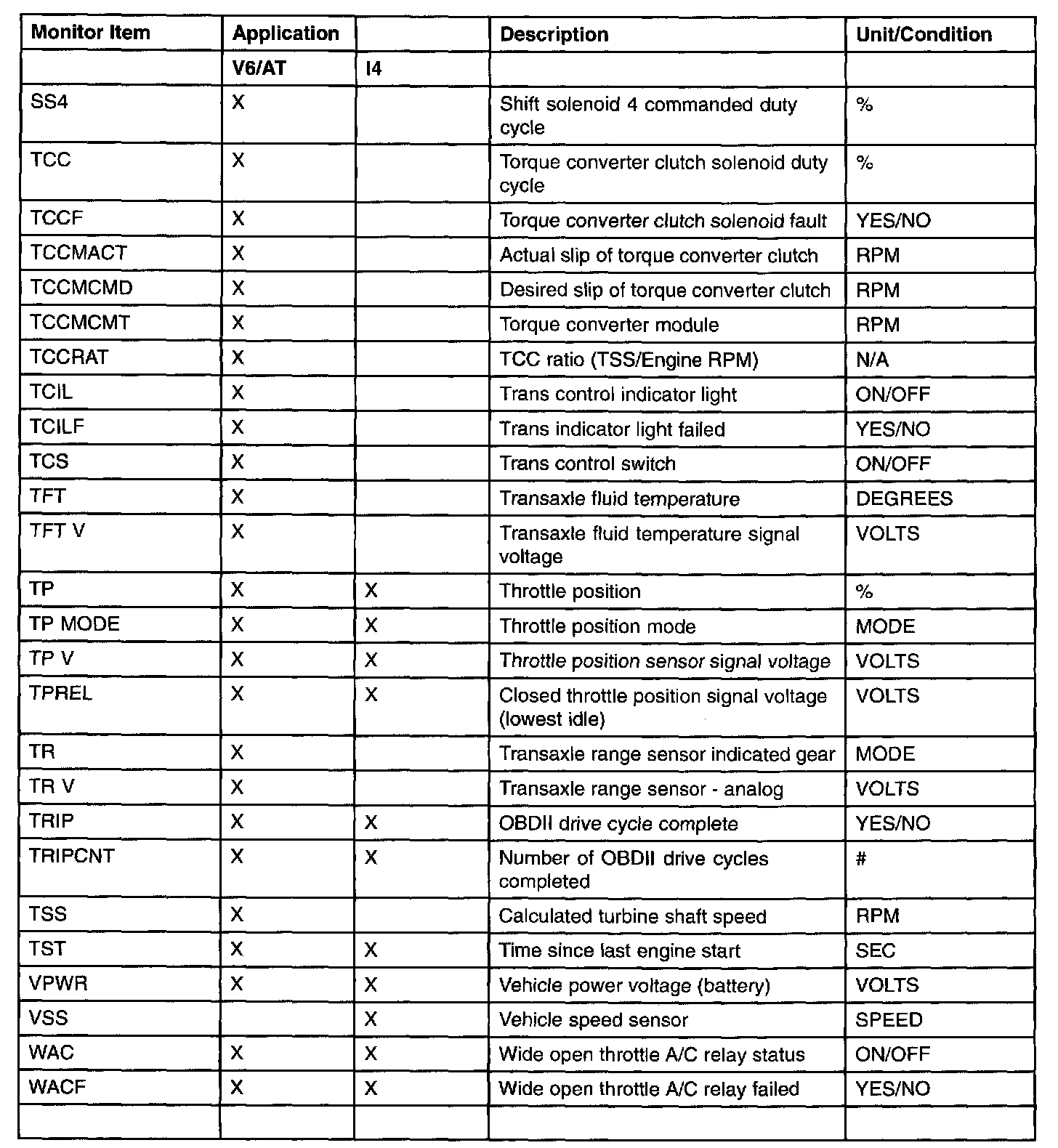

PID/Data Monitor Item Table Part 4:

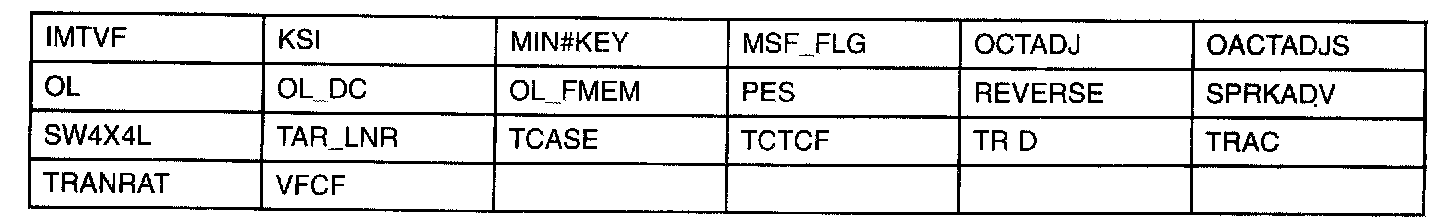

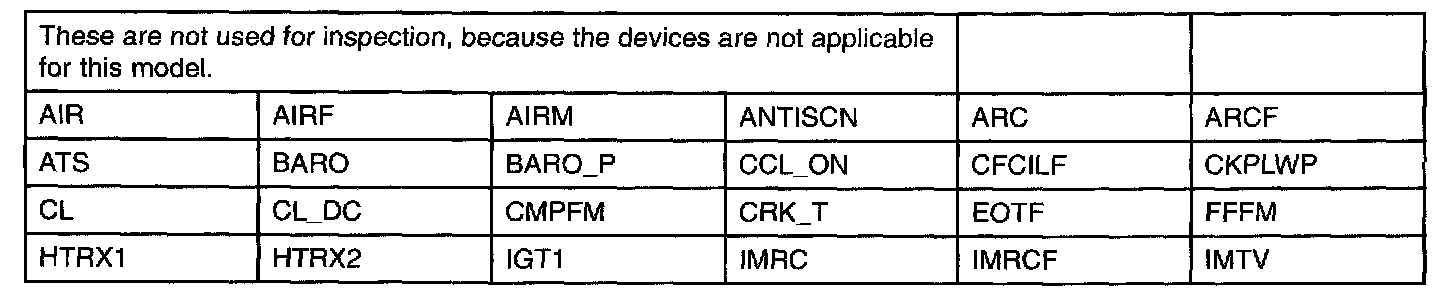

PID/Data Monitor Item Table Part 5:
