Vehicle Speed Sensor: Service and Repair

VEHICLE SPEED SENSOR (VSS)

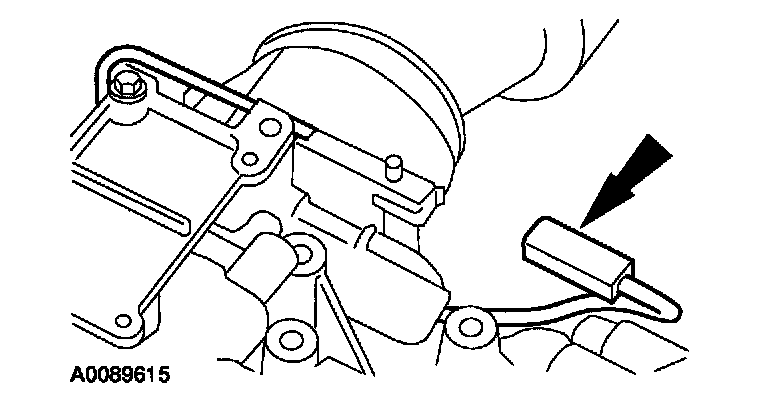

1. Disconnect the VSS.
2. Raise and support the vehicle on a hoist.

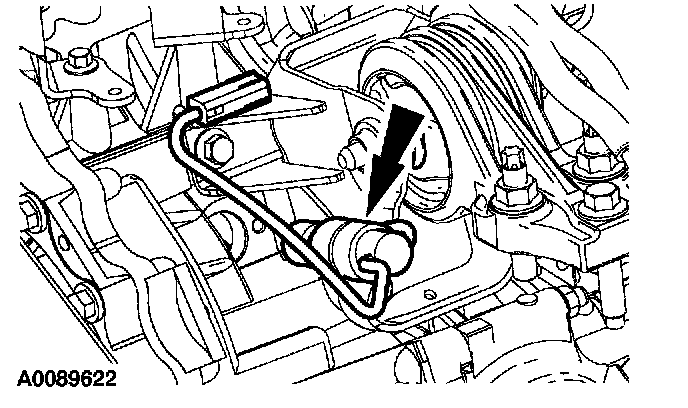

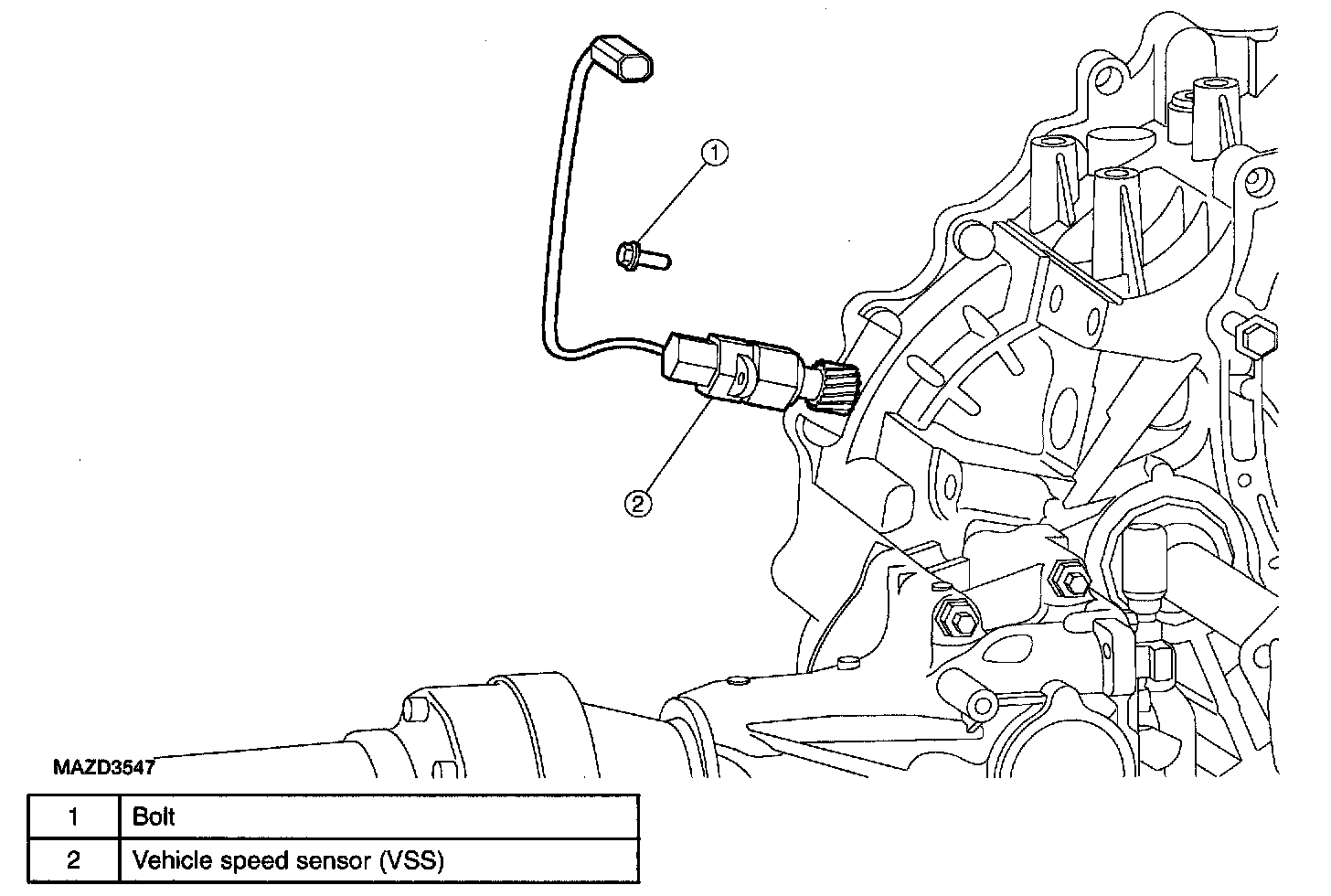

3. Remove the vehicle speed sensor.

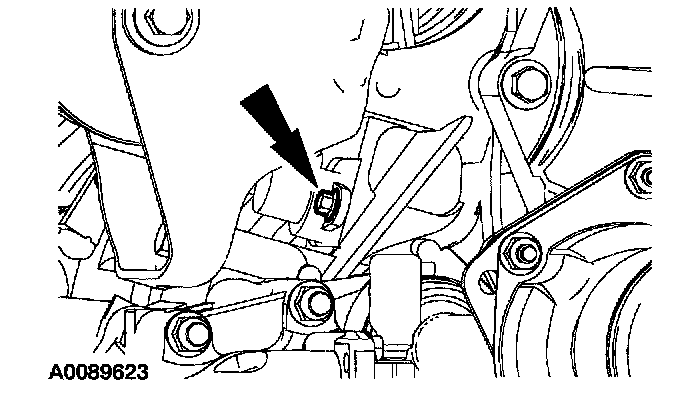

1. Remove the bolt.
2. Remove the VSS.
4. To install, reverse the removal procedure.
