Clutch Switch: Service and Repair
CLUTCH PEDAL POSITION (CPP) SWITCHRemoval and Installation 1.
Disconnect the negative battery cable. See BATTERY DISCONNECT.
2.

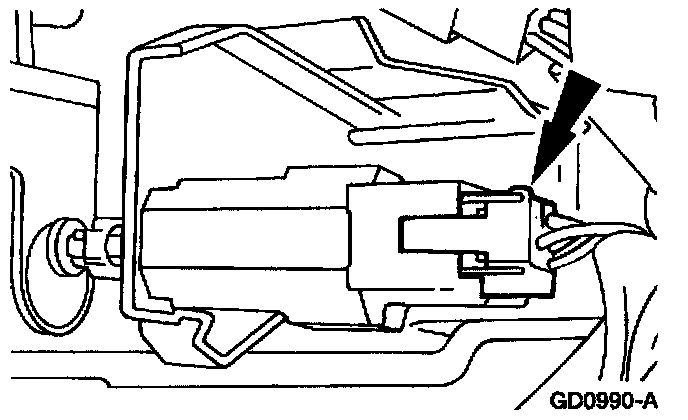

Disconnect the clutch pedal position (CPP) electrical connector.
3.

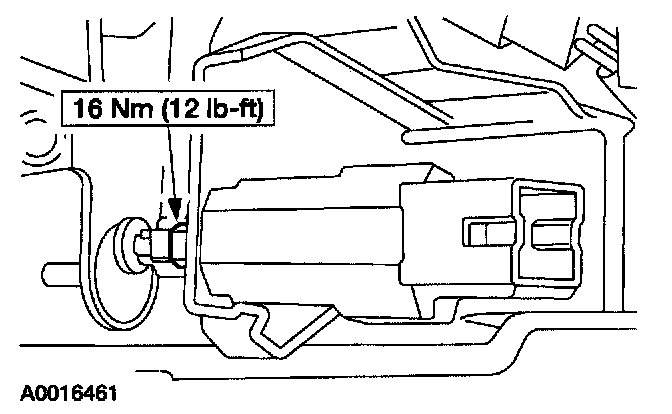

Remove the CPP locknut and the switch.
4.
To install, reverse the removal procedure.
