Mazda
>>
2005
>>
Tribute 4WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Diagrams
>>
Exploded Views
Exploded Views

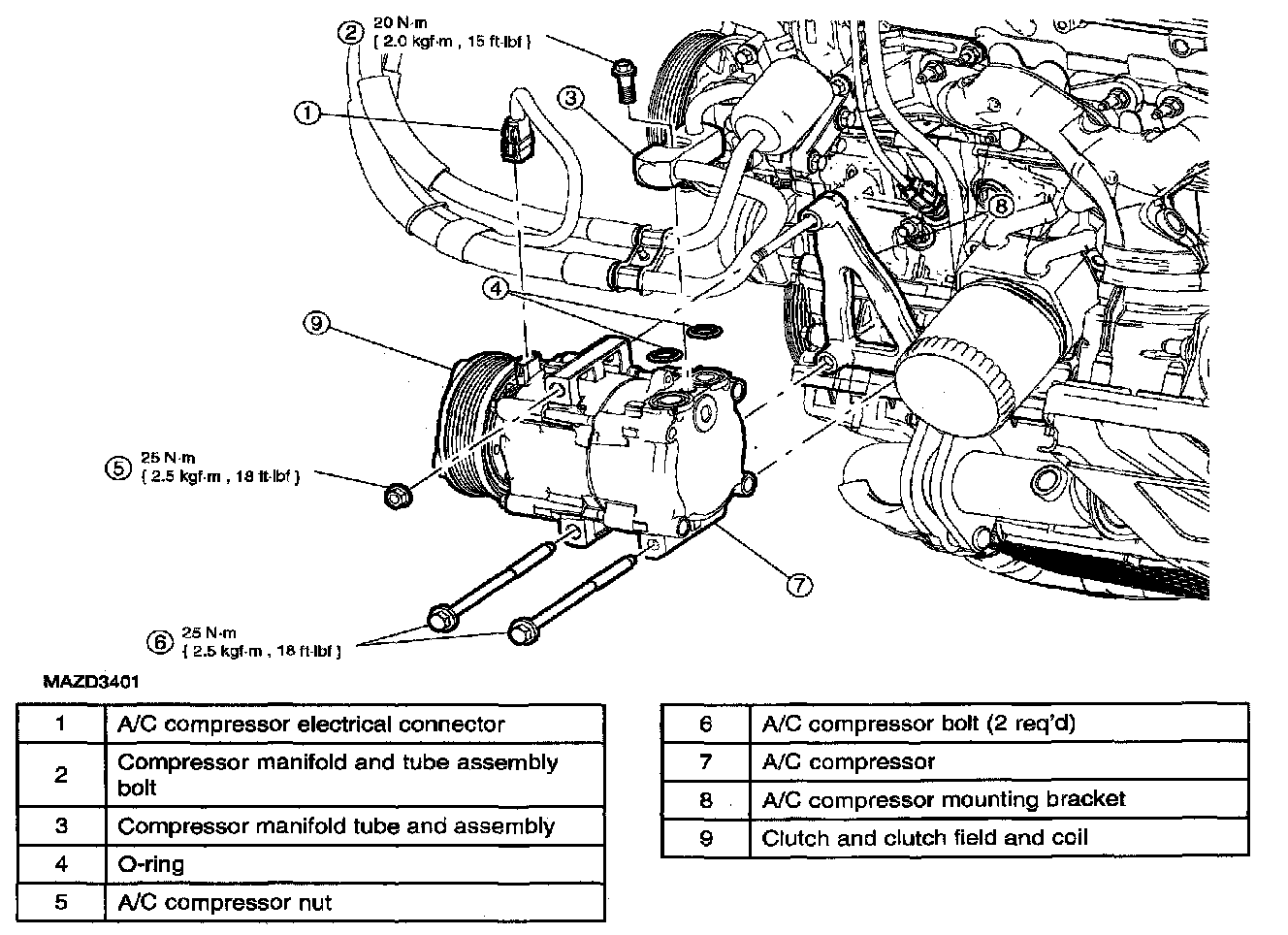

Air Conditioning (A/C) Compressor:
