PID/Data Monitor and Record Procedure

PID/DATA MONITOR AND RECORD PROCEDURE

1. Perform the necessary vehicle preparation and visual inspection. Hook up the WDS or equivalent tester to the vehicle.

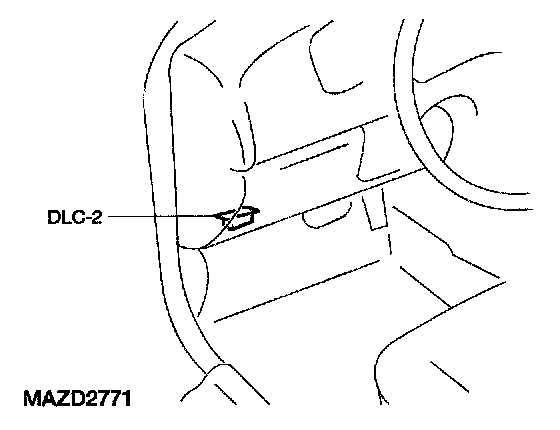

2. Connect the WDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Access and monitor PIDs by WDS or equivalent tester.
