Terminals

Terminals

Inspection

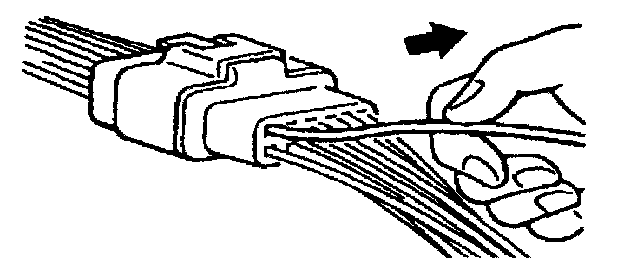

- Pull lightly on individual wires to check that they are secured in the terminal.

Replacement

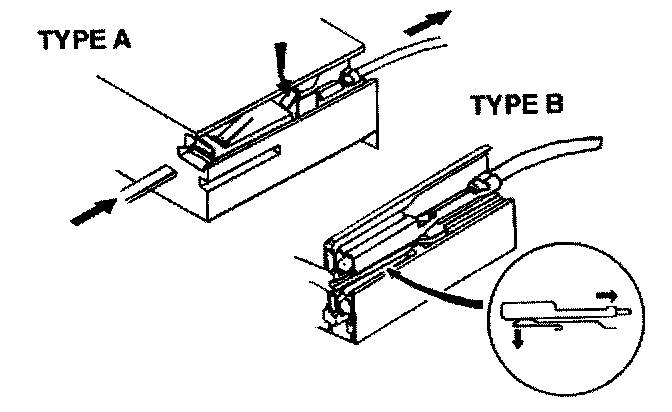

- Use the appropriate tools to remove a terminal as shown. While installing a terminal, be sure to insert it until it locks securely.
- Insert a thin piece of metal from the terminal side of the connector and with the terminal locking tab pressed down, pull the terminal out from the connector.
