Torque Formulas

Torque Formulas

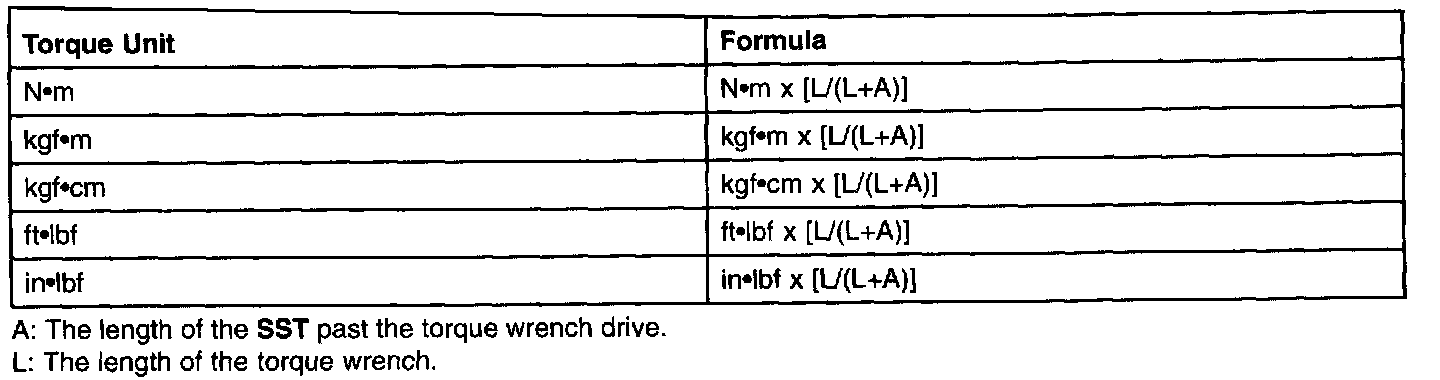

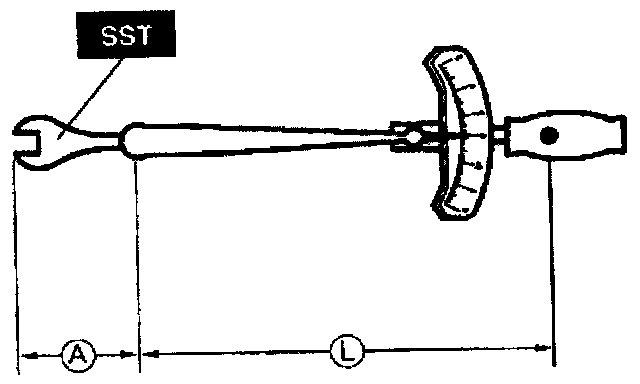

- When using a torque wrench-SST combination, the written torque must be recalculated due to the extra length that the SST adds to the torque wrench. Recalculate the torque by using the formulas. Choose the formula that applies to you.
