Home >> Mazda >> 2005 >> Tribute 4WD V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine

Engine

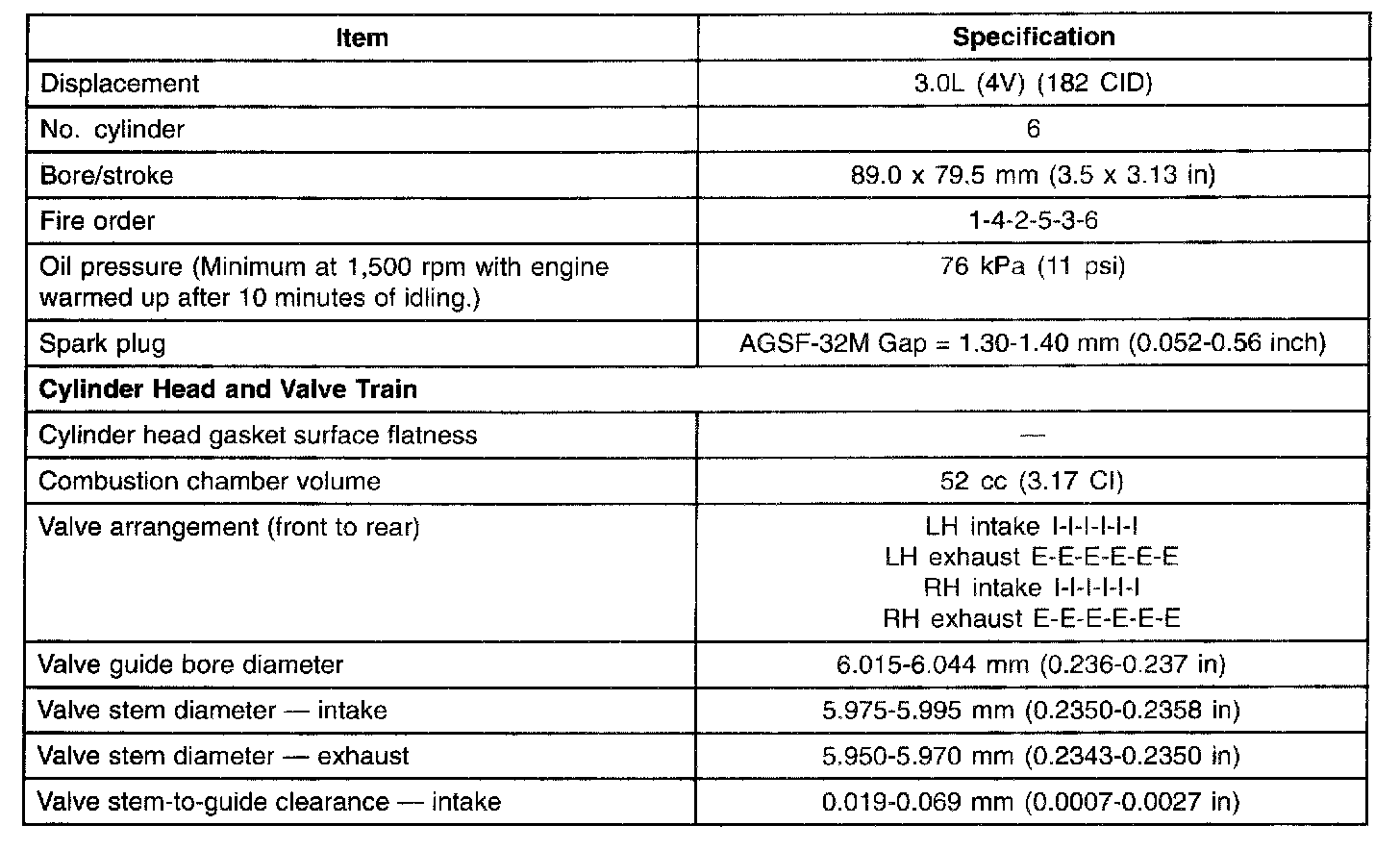

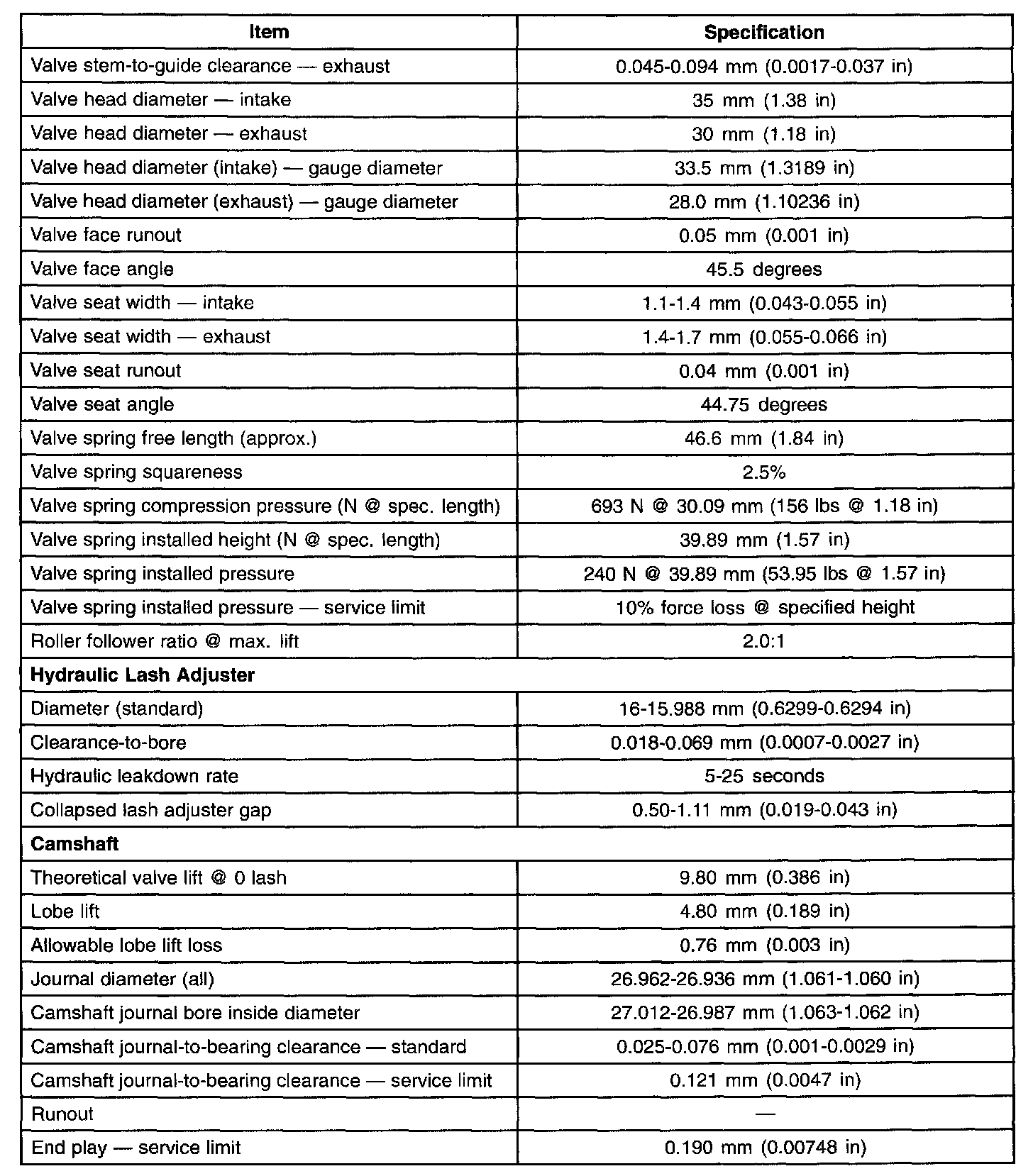

General Specification

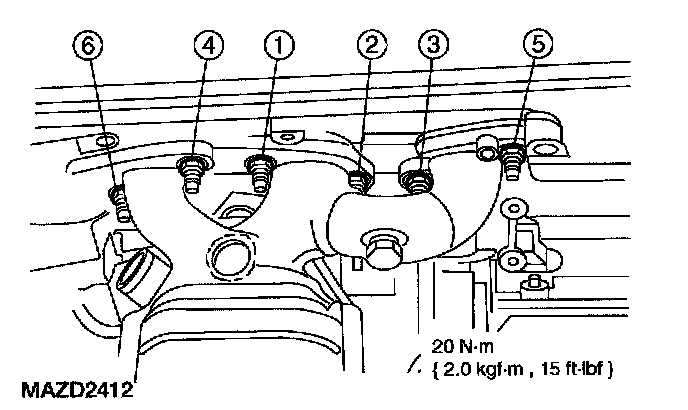

Exhaust Manifold RH

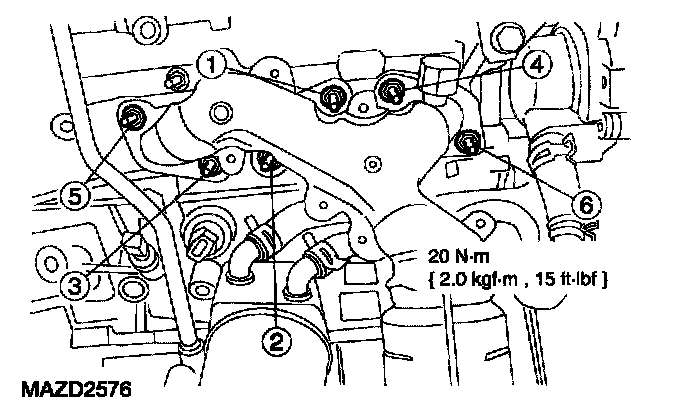

Exhaust Manifold LH

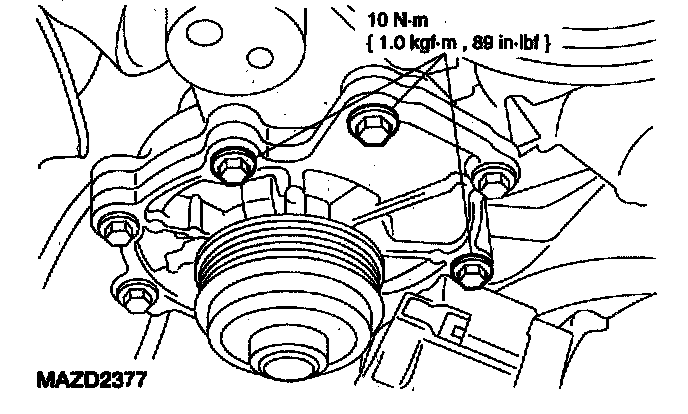

Water Pump
