Low and Reverse Brake Piston Disassembly Note

Low and Reverse Brake Piston Disassembly Note





1. Using a flathead screwdriver, remove the snap ring from the transaxle case.





2. Remove the low and reverse brake return spring from the transaxle case.

Caution: Do not damage the seal on the piston.

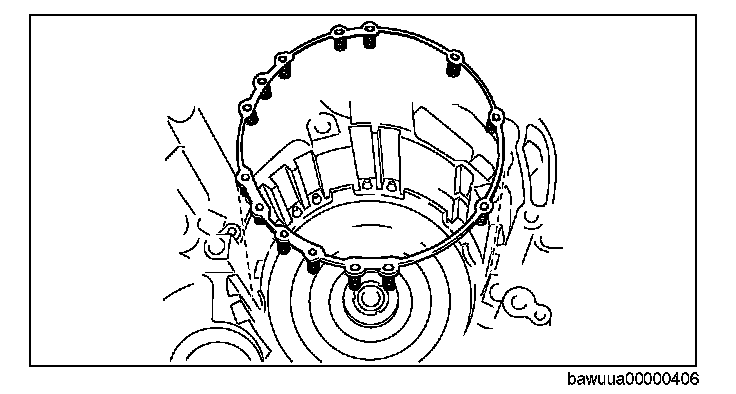

3. While pushing the low and reverse brake piston by hand, apply compressed air into the oil passage of the transaxle case as shown in the figure and remove the low and reverse brake piston.

Air pressure:
392 kPa (4.0 kgf/cm2, 57 psi)





4. Remove the O-rings from the low and reverse brake piston.
