Synchronizer Key Spring, 1ST/2ND Synchronizer Key and 1ST/2ND Clutch Hub and Sleeve Assembly Note
Synchronizer Key Spring, 1st/2nd Synchronizer Key and 1st/2nd Clutch Hub and Sleeve Assembly Note1. Install the synchronizer key spring, 1st/2nd synchronizer key and 1st/2nd clutch hub to the 1st/2nd clutch sleeve.

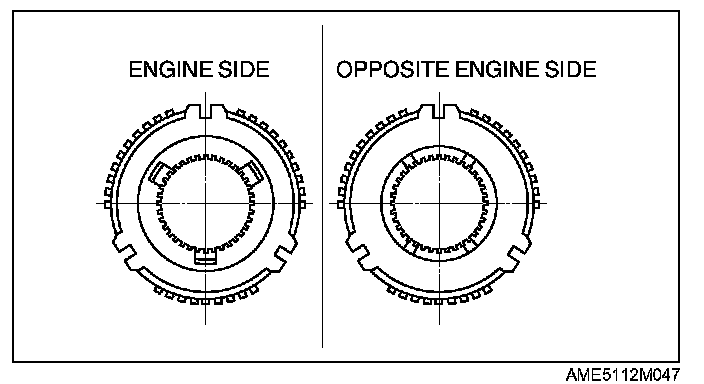

1) Install a new 1st/2nd clutch hub in the direction as shown in the figure.

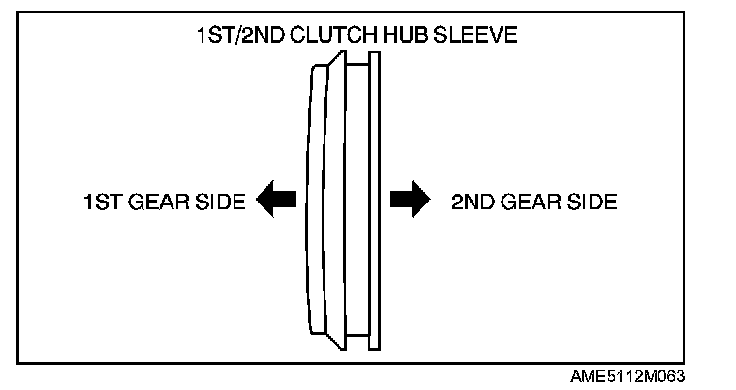

2) Install the 1st/2nd clutch sleeve in the direction as shown in the figure.

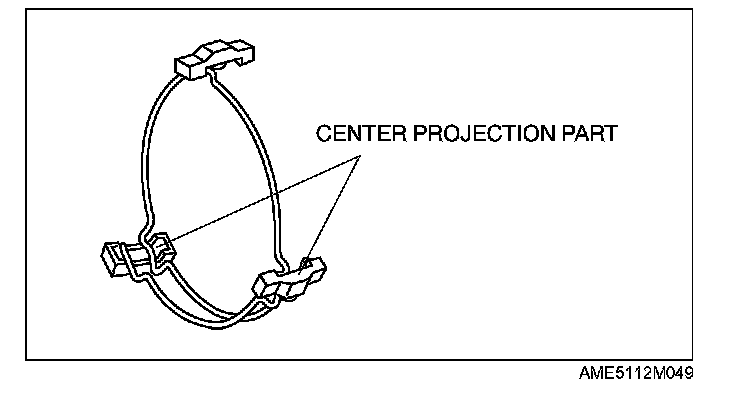

3) Install center projection parts of synchronizer key springs to different synchronizer keys at each side.
