Communications Network
Communications Network

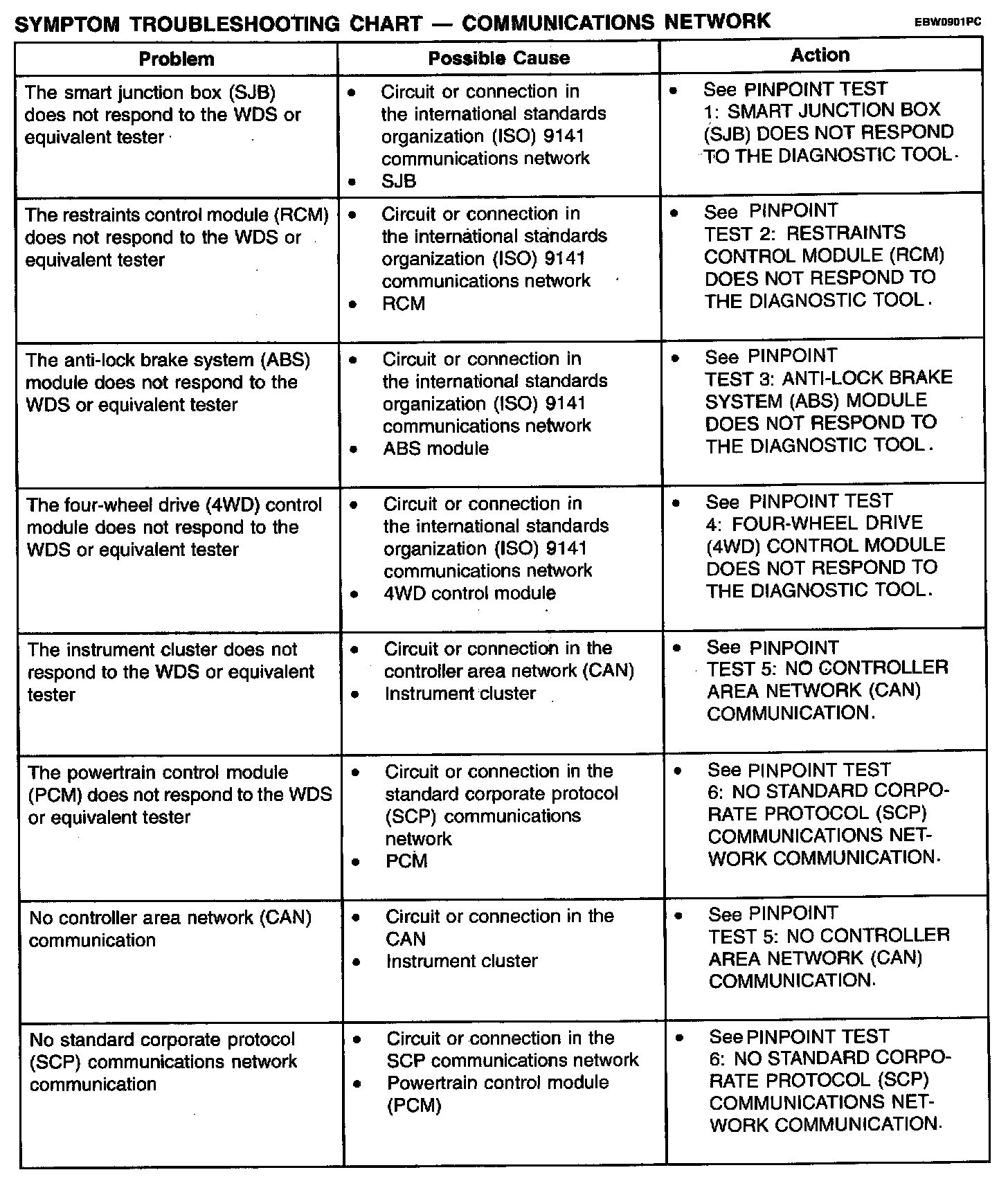

Symptom Troubleshooting Chart-Communications Network (Part 1):

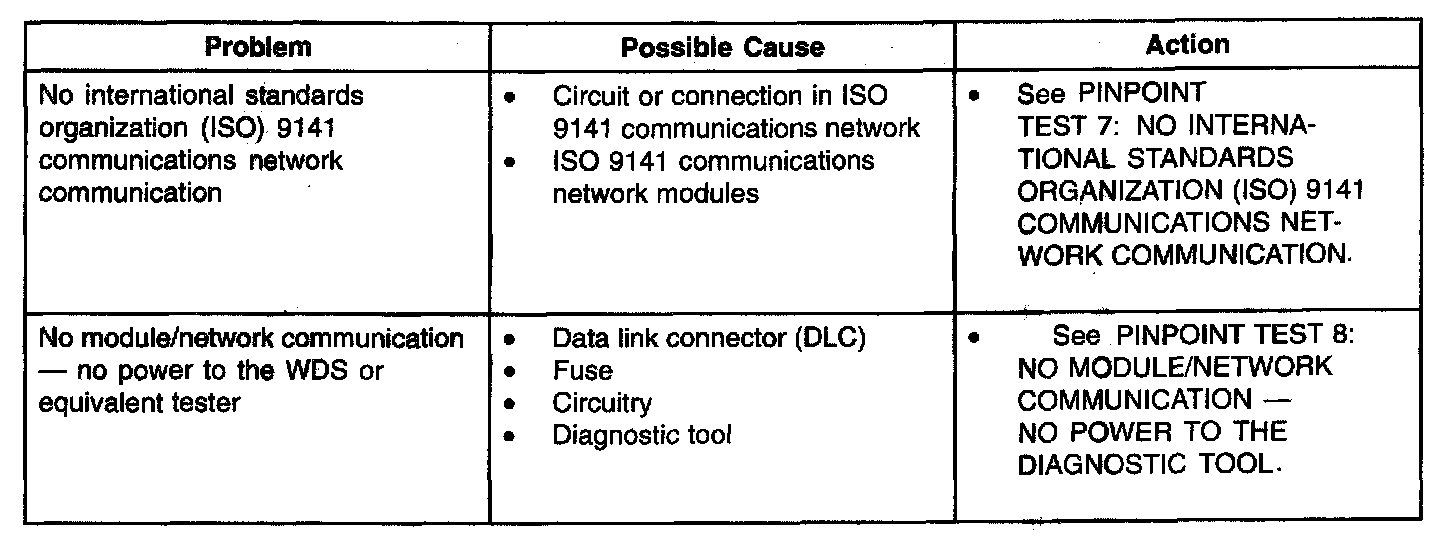

Symptom Troubleshooting Chart-Communications Network (Part 2):
