Mazda
>>
2006
>>
B2300 L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Switch
>>
Locations
>>

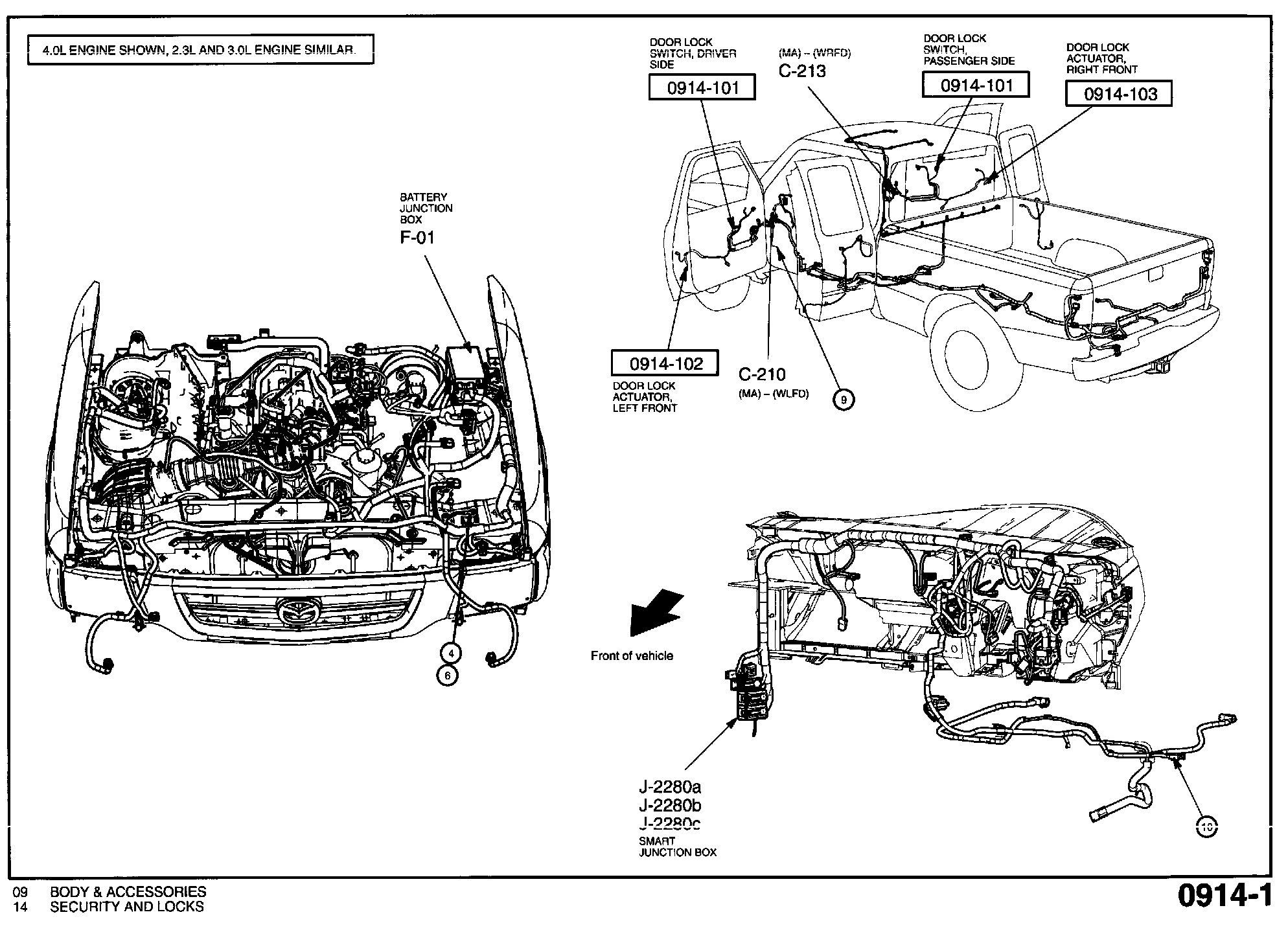

Door Lock Switch, Driver Side
Door Lock Switch, Driver Side
Routing View 0914-1:
