System Diagram
System Diagram

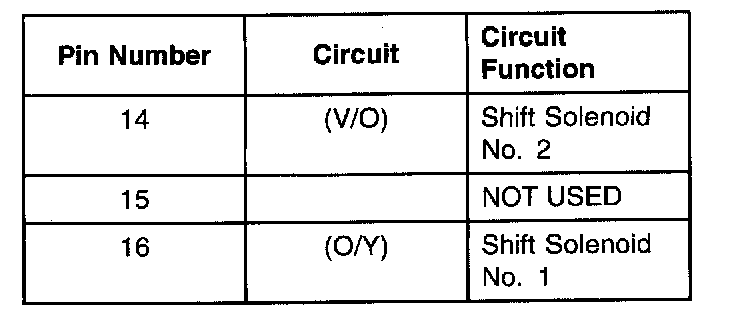

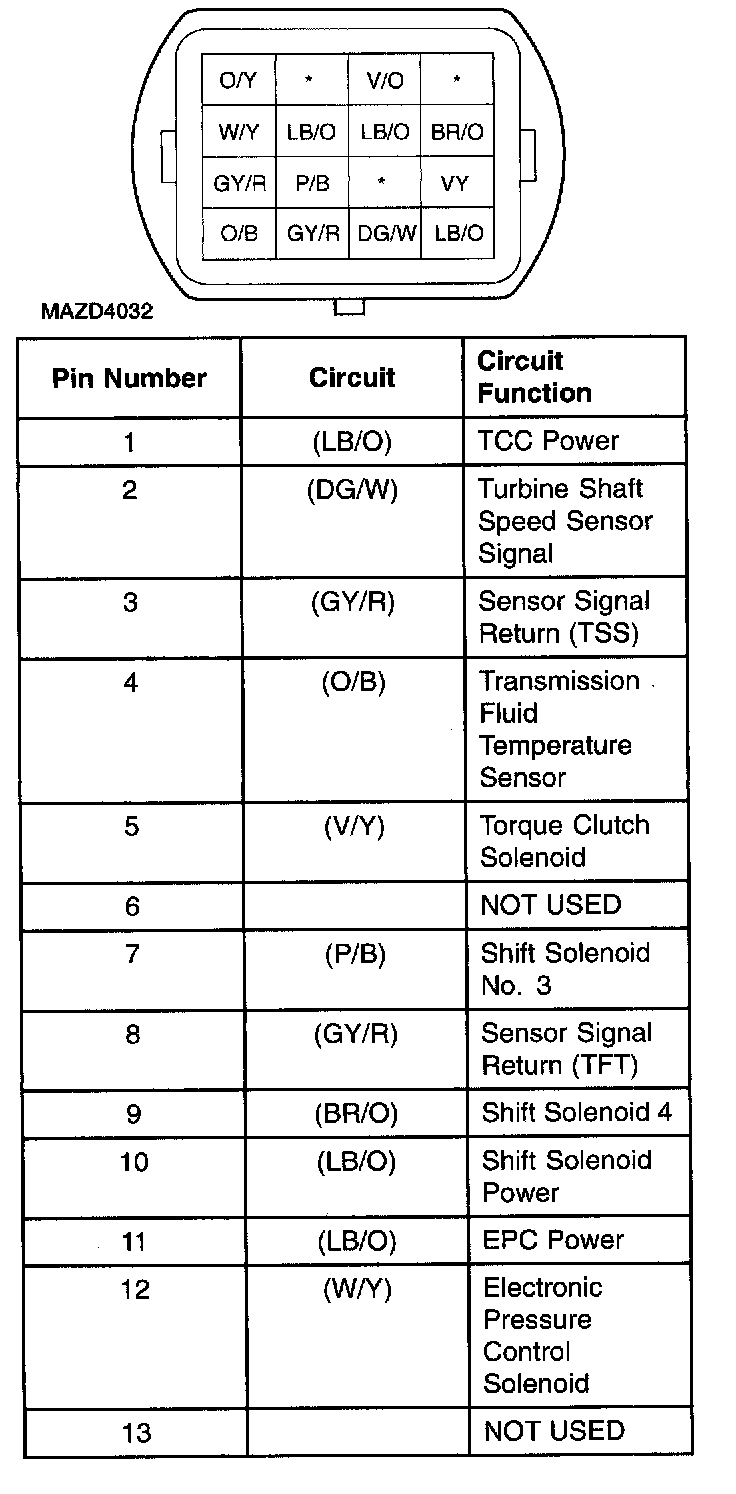

Transmission Vehicle Harness Connector:

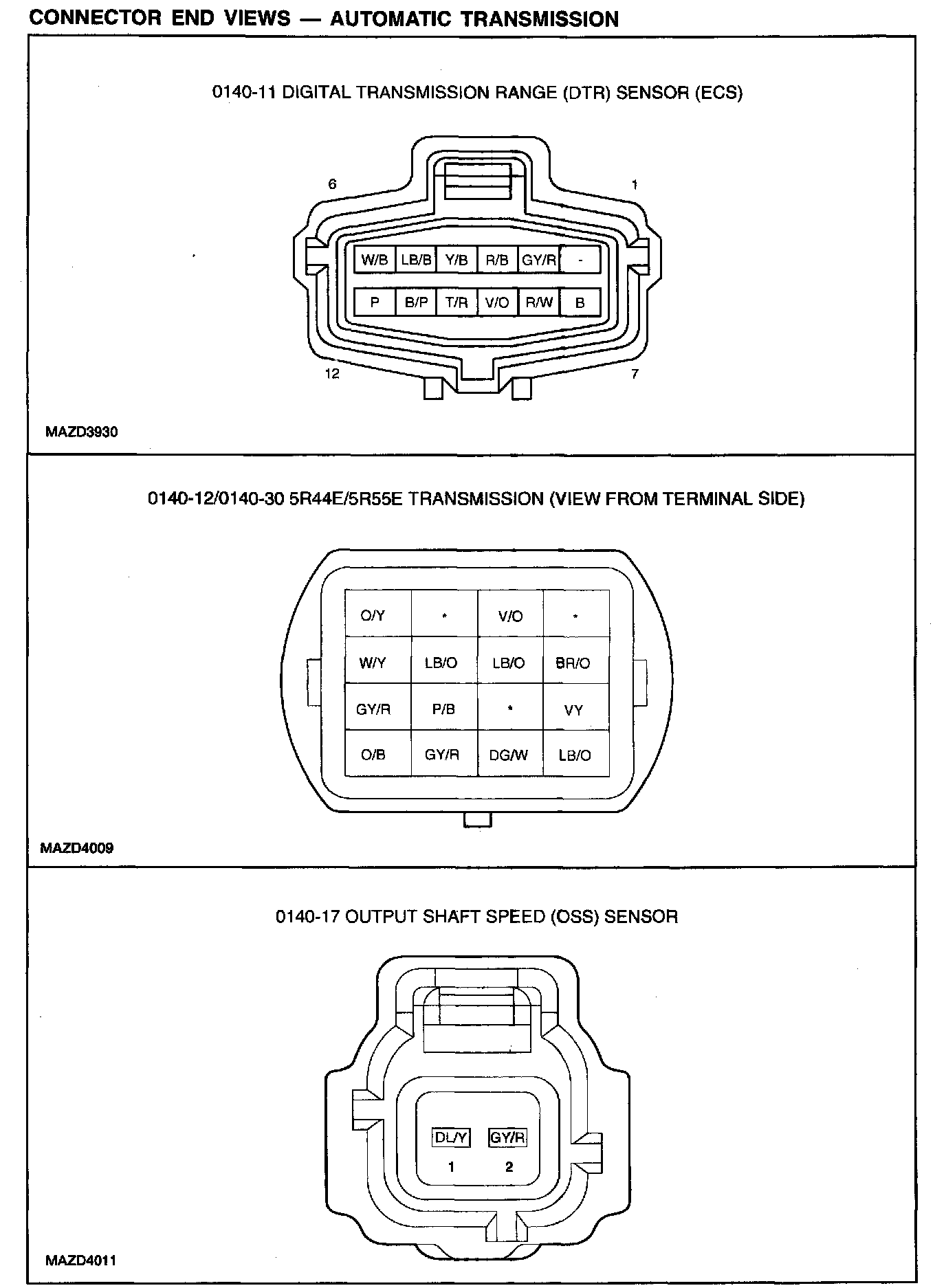

CONNECTOR END VIEWS - AUTOMATIC TRANSMISSION:
