Mazda
>>
2006
>>
B2300 L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
Mirrors

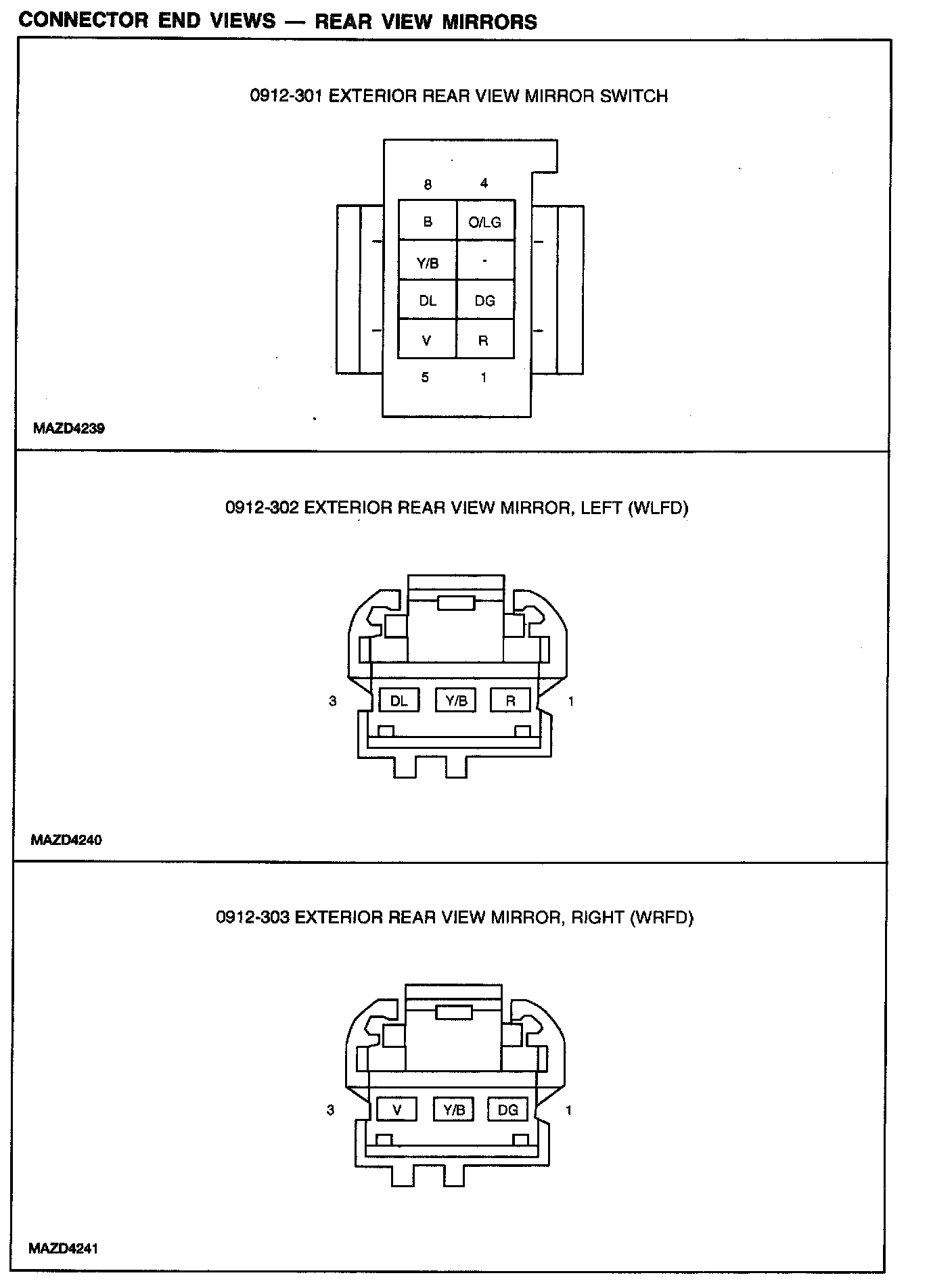

Connector End Views-Rear View Mirrors:
