Power Locks

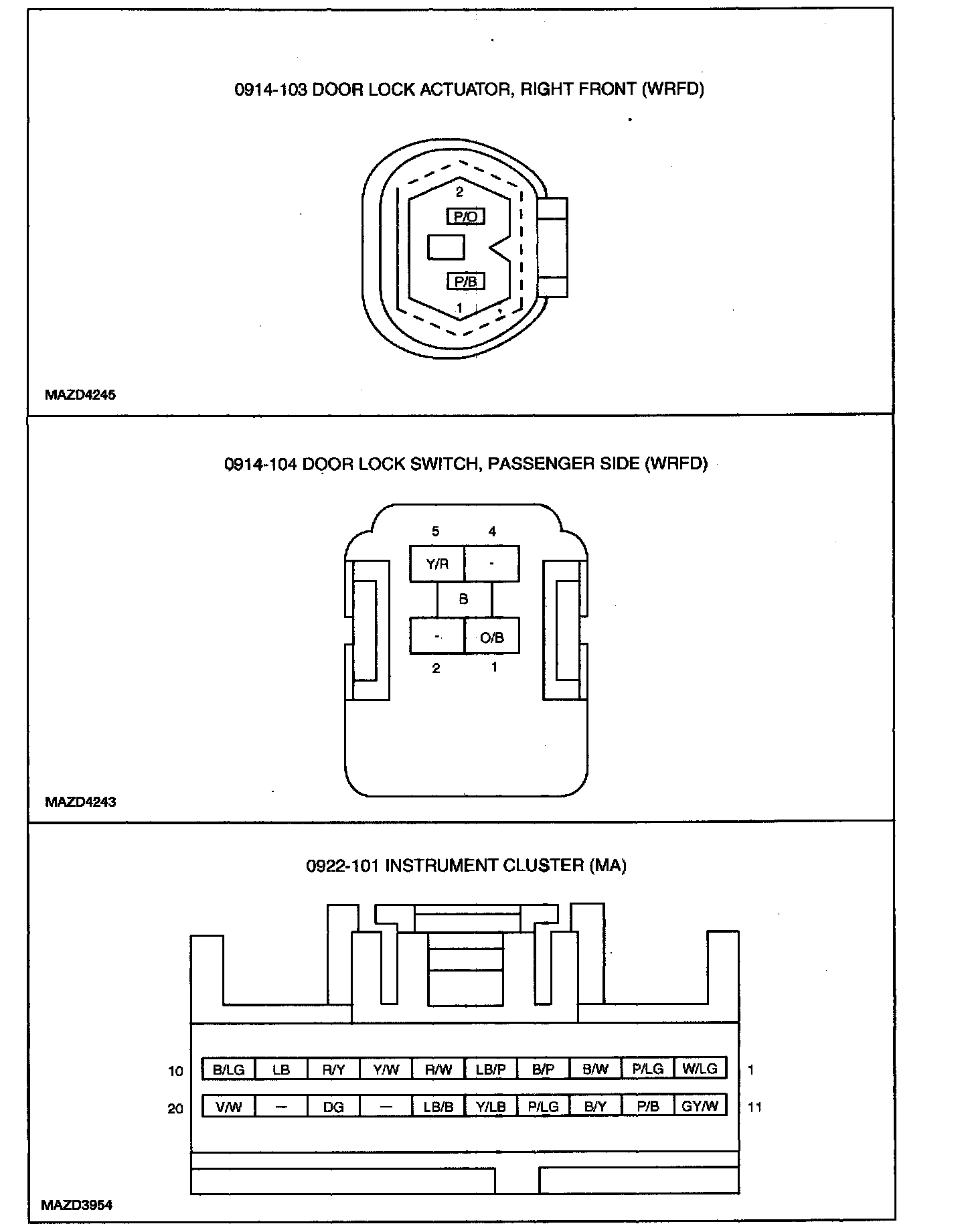

Connector End Views-Security And Locks (Part 1):

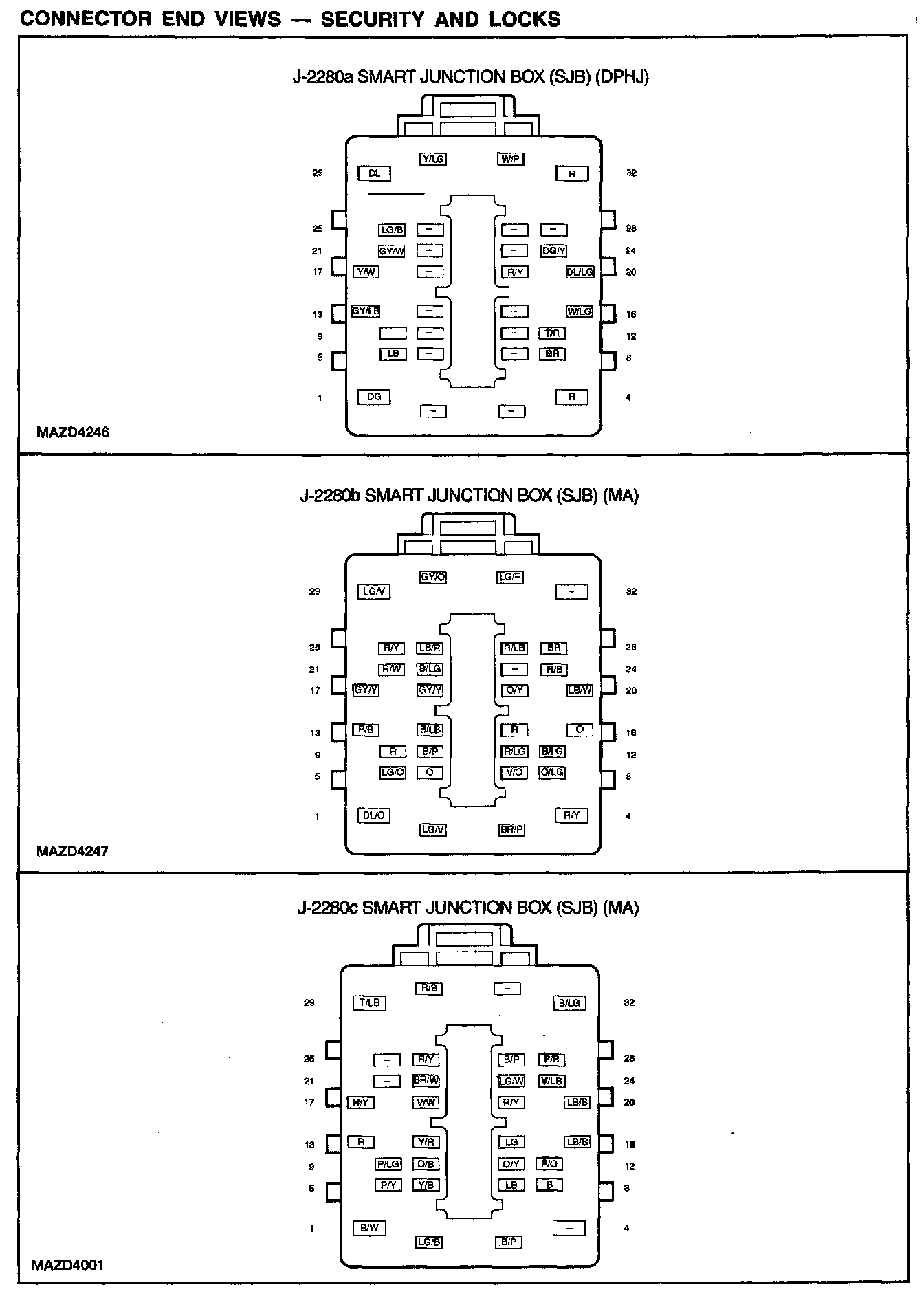

Connector End Views-Security And Locks (Part 2):

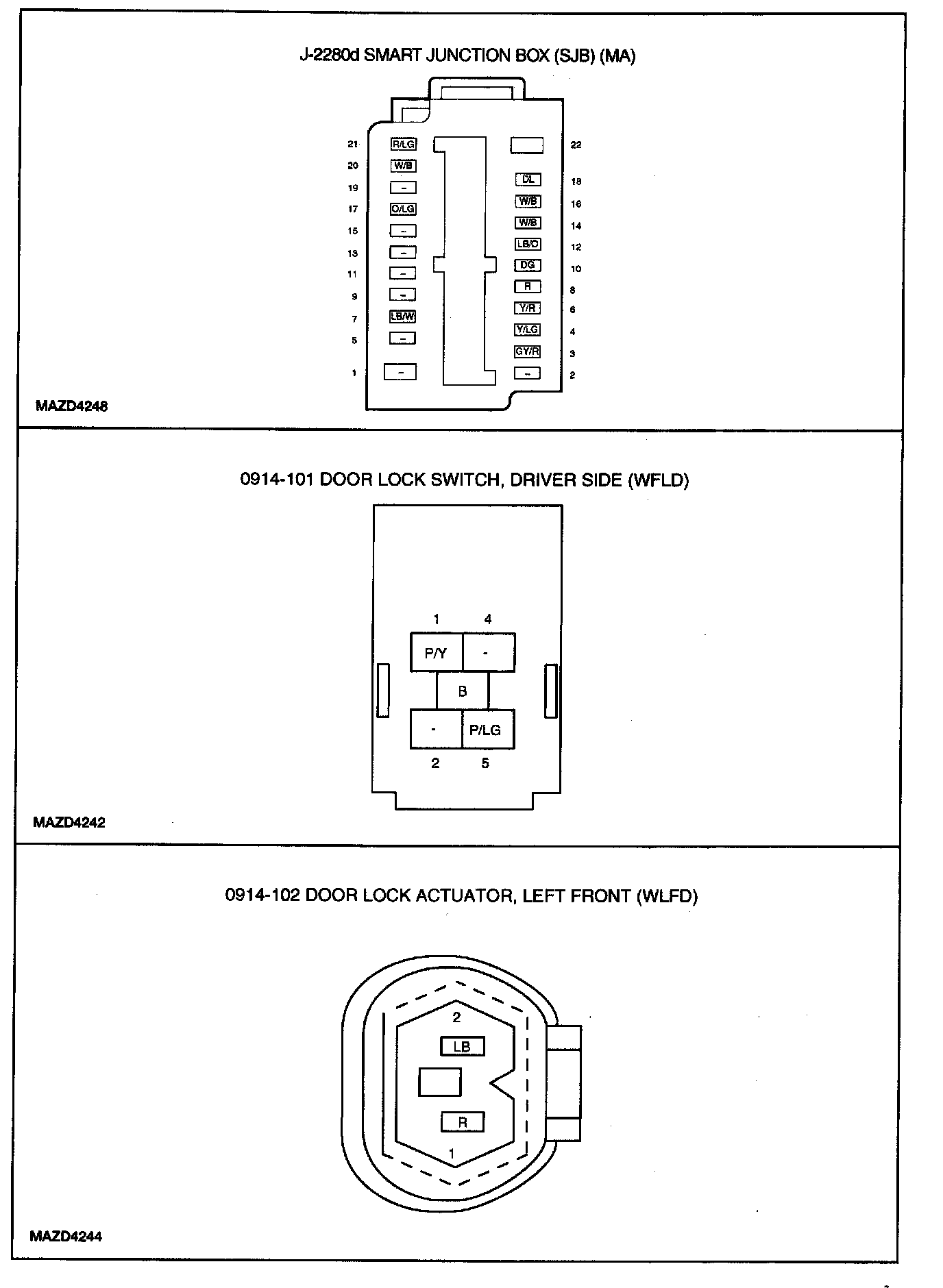

Connector End Views-Security And Locks (Part 3):
