Diagrams
>>
Connector Views
>>
Windows
Windows

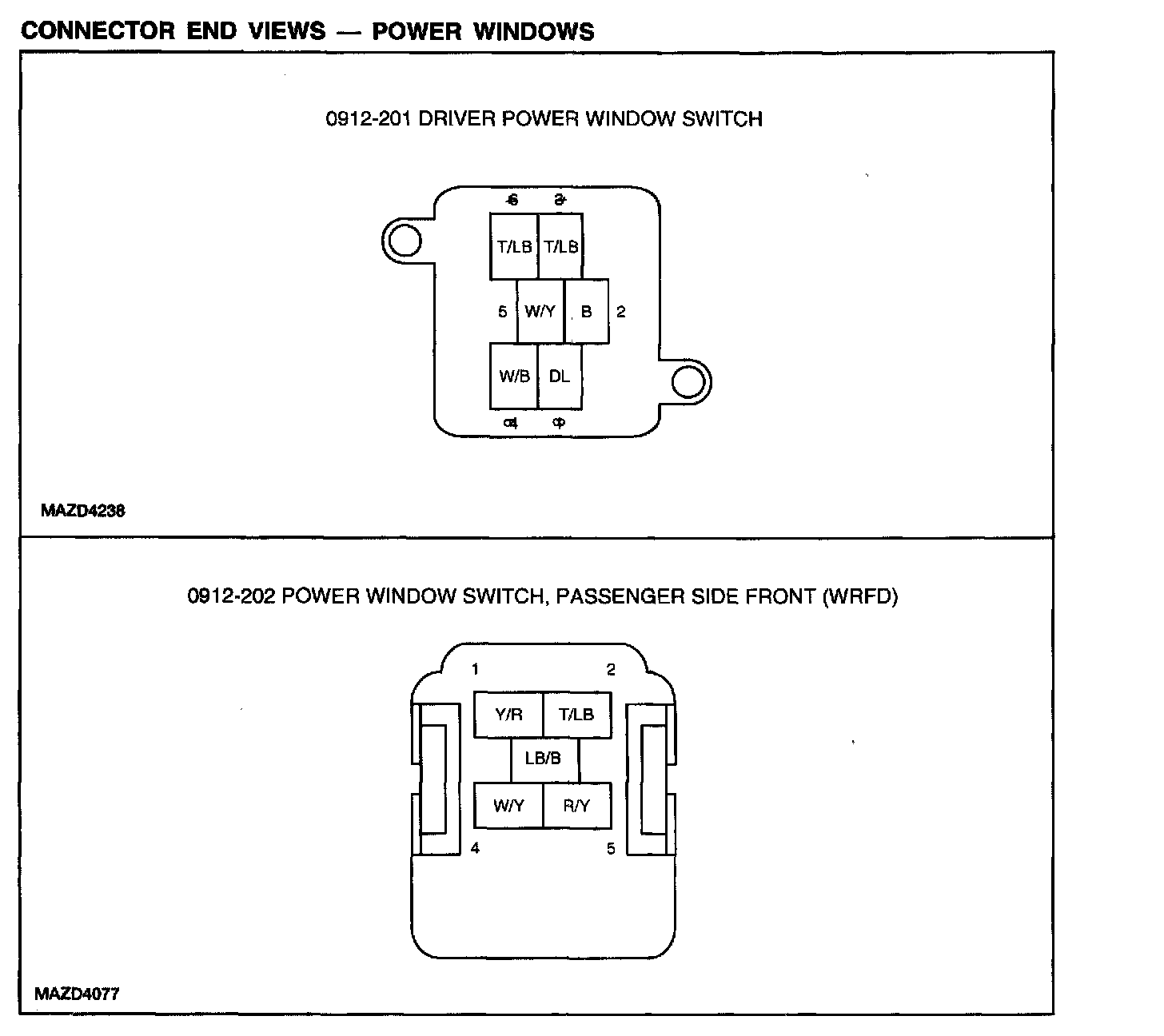

Connector End Views-Power Windows (Part 1):

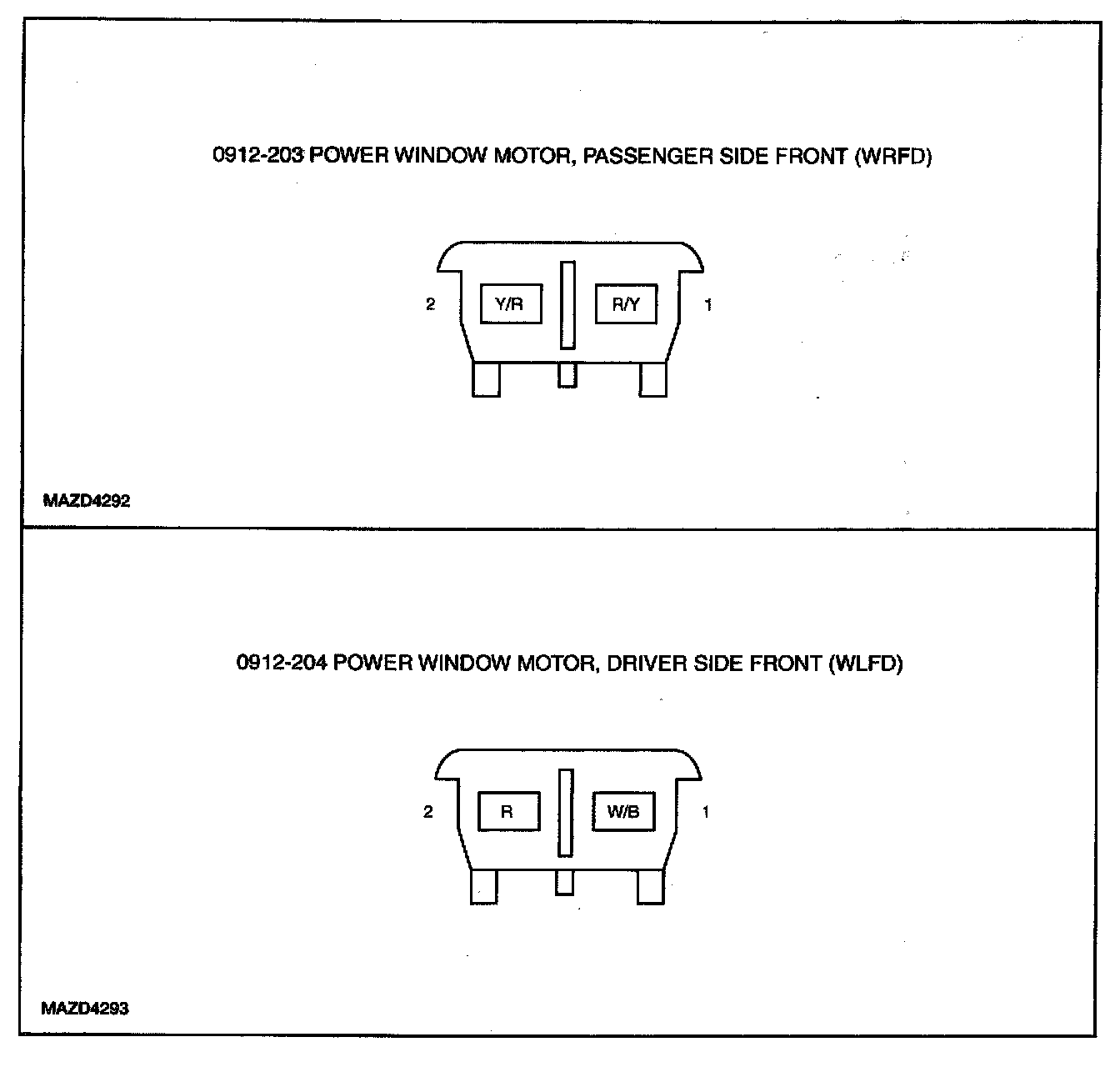

Connector End Views-Power Windows (Part 2):
Connector End Views-Power Windows (Part 3):
