Air Register: Service and Repair
INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION - LH1. Remove the audio unit.

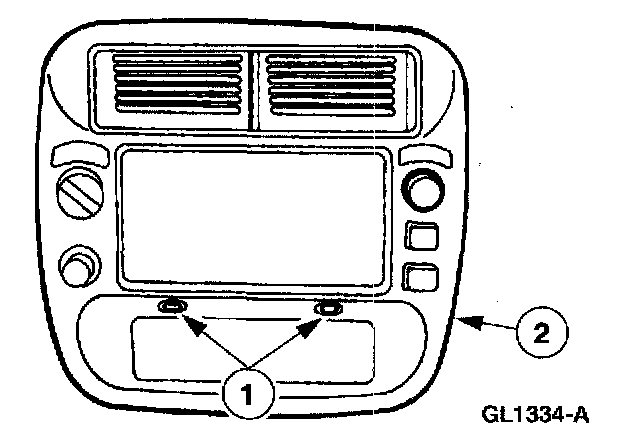

2. Remove the instrument panel center finish panel.
1. Remove the screws.
2. Disengage the retaining clips and partially remove the instrument panel center finish panel.
- Disconnect the electrical connectors and remove the instrument panel center finish panel.
3. Remove the instrument cluster finish panel.
1. Remove the screws.
2. Disengage the retaining clips and partially remove the instrument cluster finish panel.
- Disconnect the electrical connectors and remove the instrument cluster finish panel.

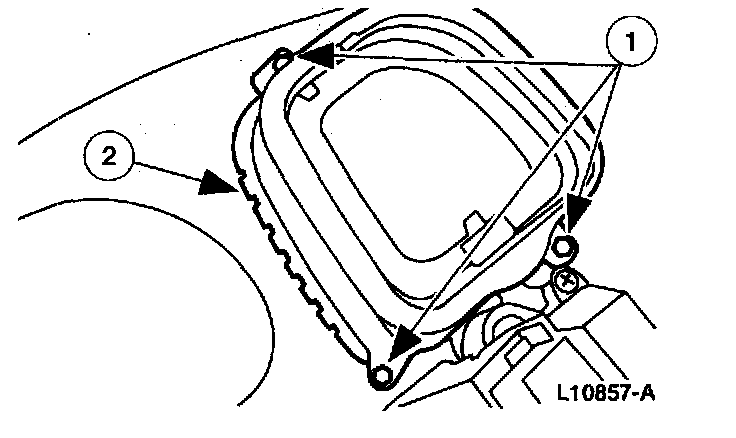

4. Remove the LH instrument panel register.
1. Remove the screws.
2. Remove the LH instrument panel register.
5. To install, reverse the removal procedure.
INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION - RH

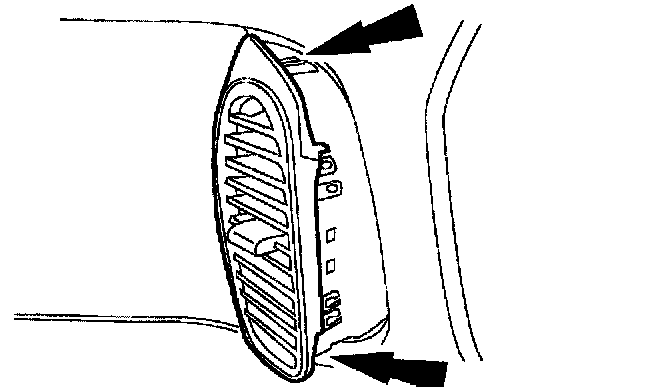

1. Lift the edge of the RH instrument panel register to expose the retainers.
2. Release the retainers and remove the RH instrument panel register.
3. Install in reverse order of removal.
INSTRUMENT PANEL REGISTER CENTER REMOVAL / INSTALLATION
1. Disconnect the negative battery cable.
2. Using the special tool, remove the radio chassis.
3. Disconnect the antenna lead and the wire harness connectors.
4. Remove the center trim finish panel.
5. Disconnect the wire harness connectors.

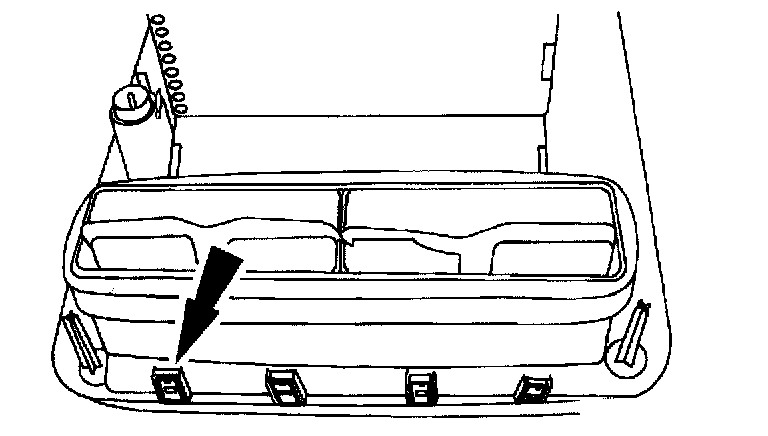

6. Release the eight clips and remove the center instrument panel register from the center trim finish panel.
7. To install, reverse the removal procedure.
Tightening torque: 2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf}.
