Drive Belt: Testing and Inspection

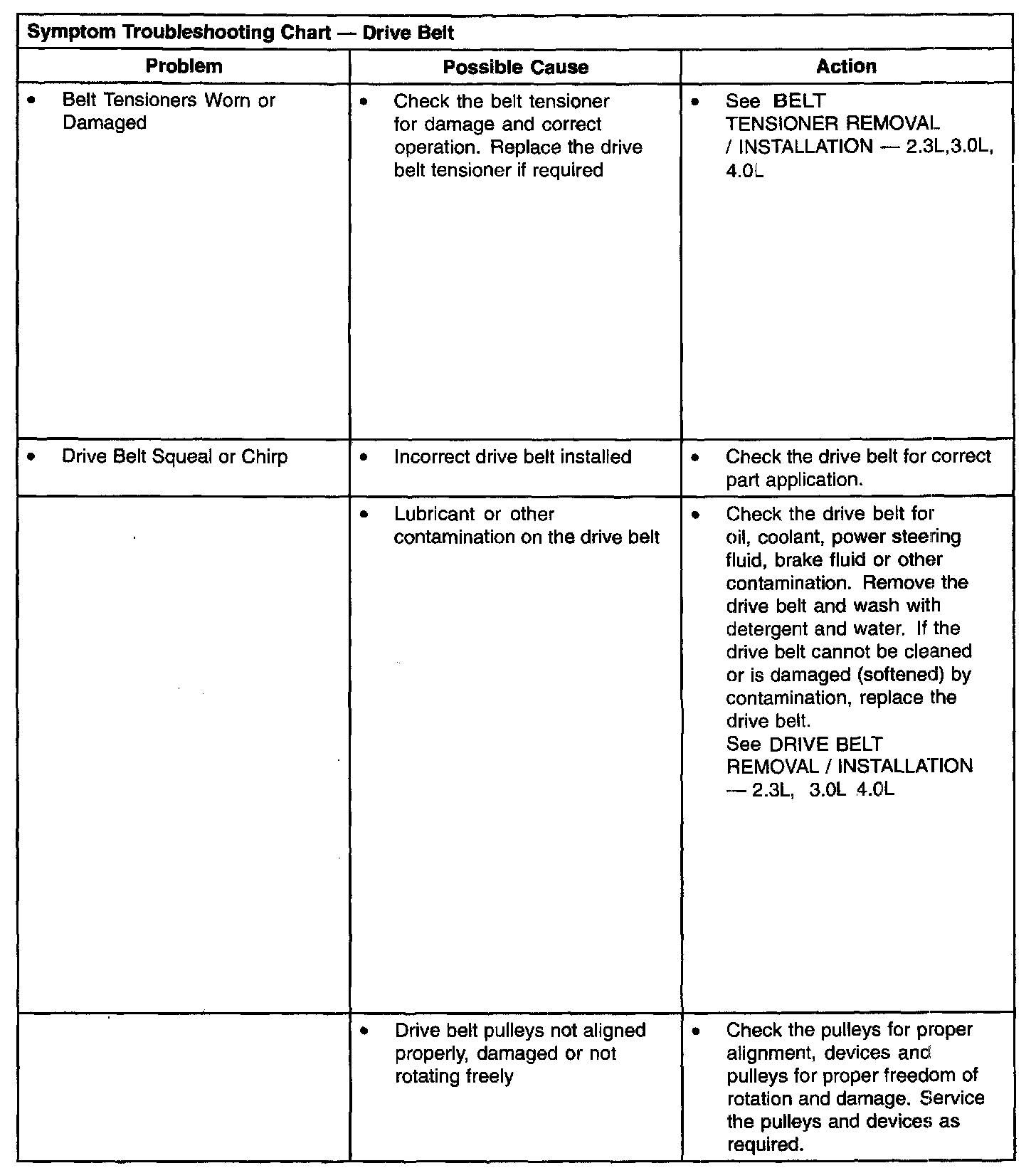

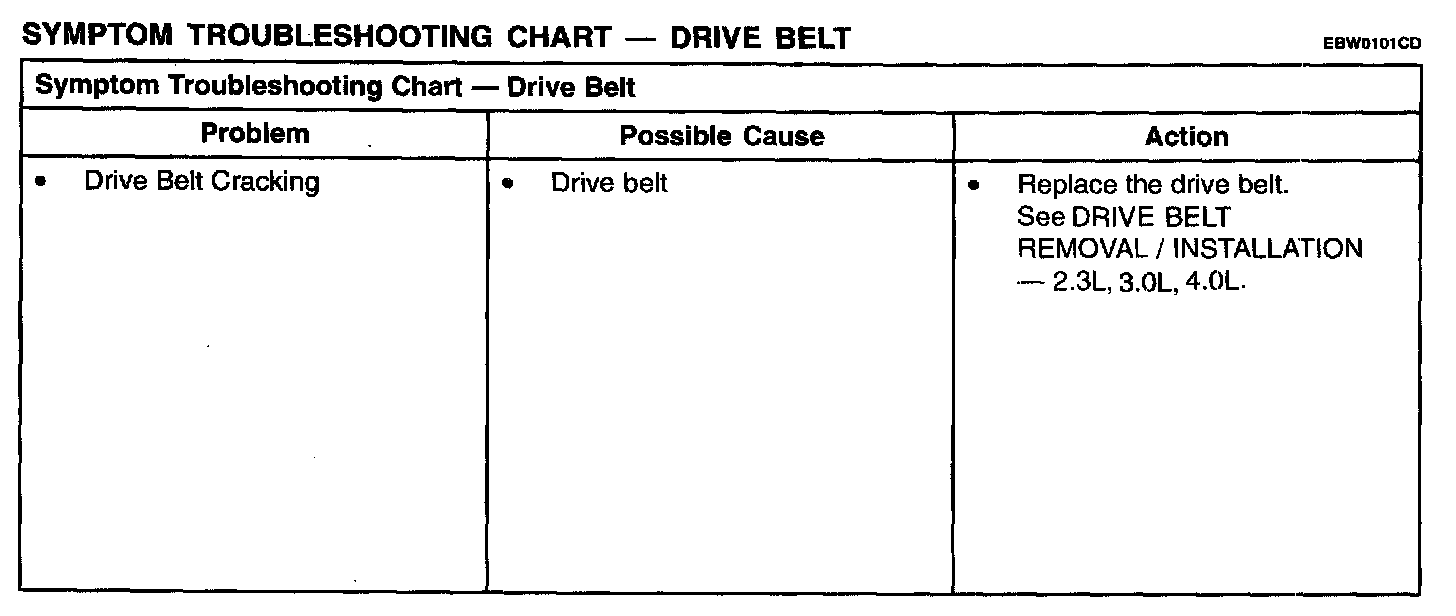

Symptom Troubleshooting Chart - Drive Belt (Part 1):
Symptom Troubleshooting Chart - Drive Belt (Part 2):
Symptom Troubleshooting Chart - Drive Belt (Part 3):
