Fuse Block: Locations

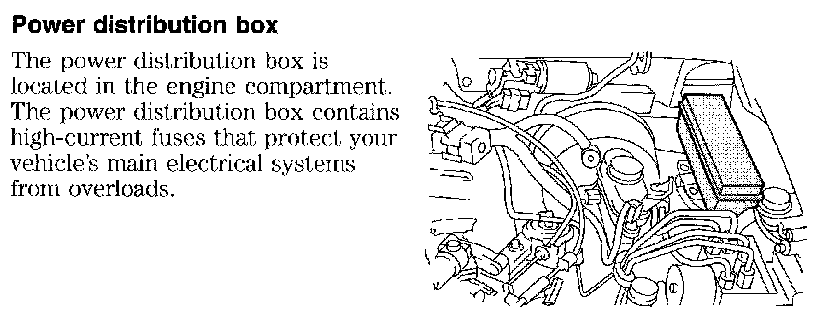

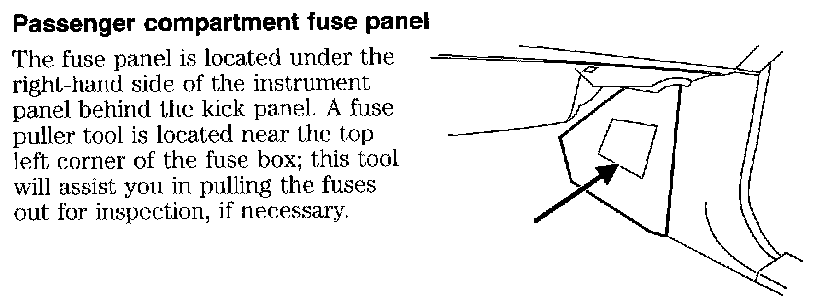

Fuse Box Locations

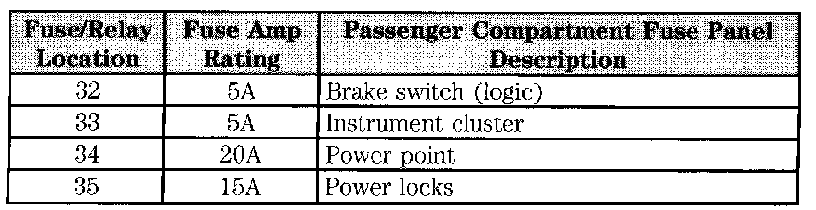

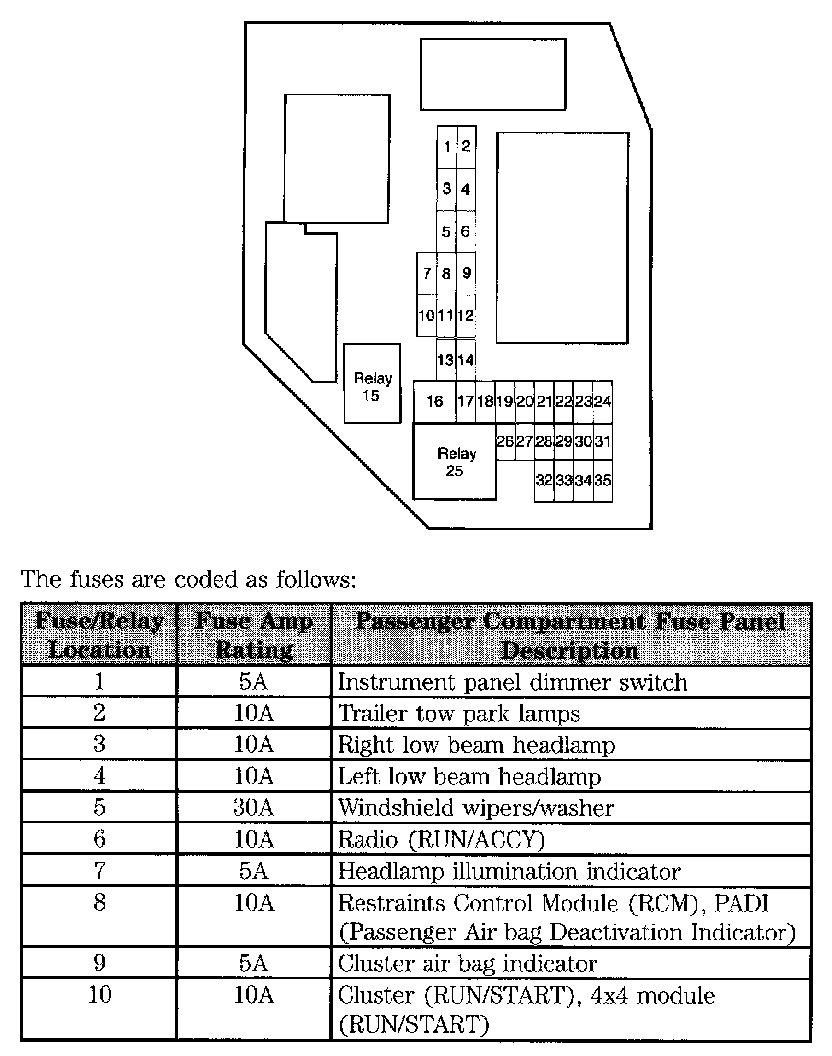

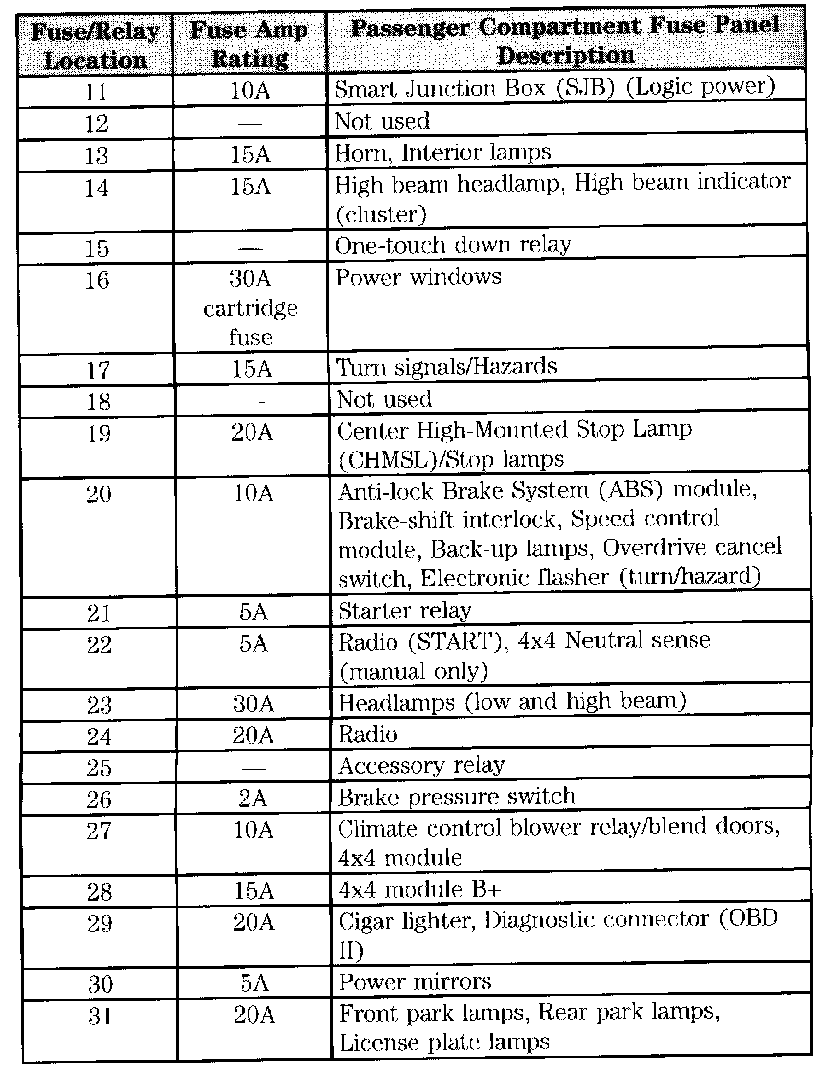

Fuse ID Passenger Compartment Box

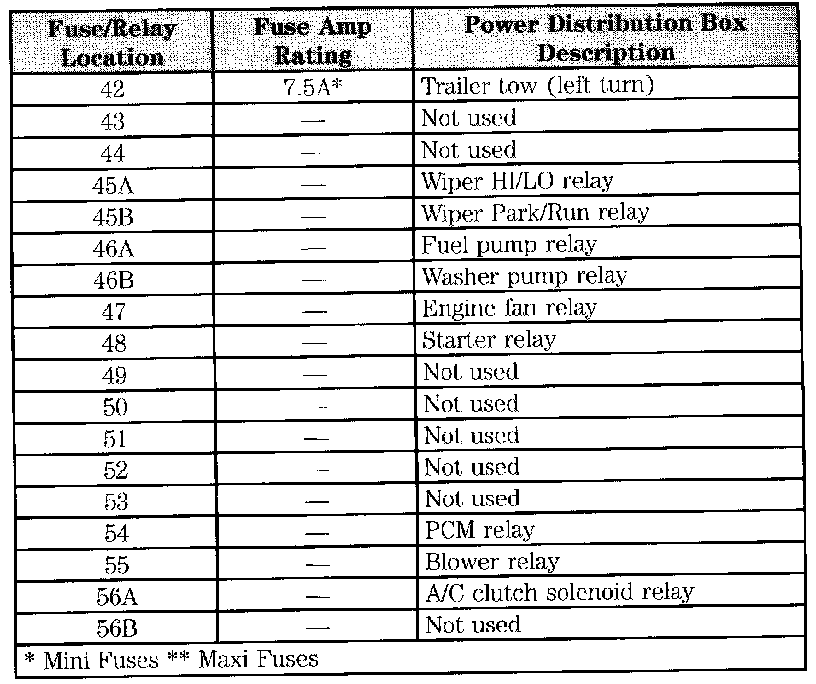

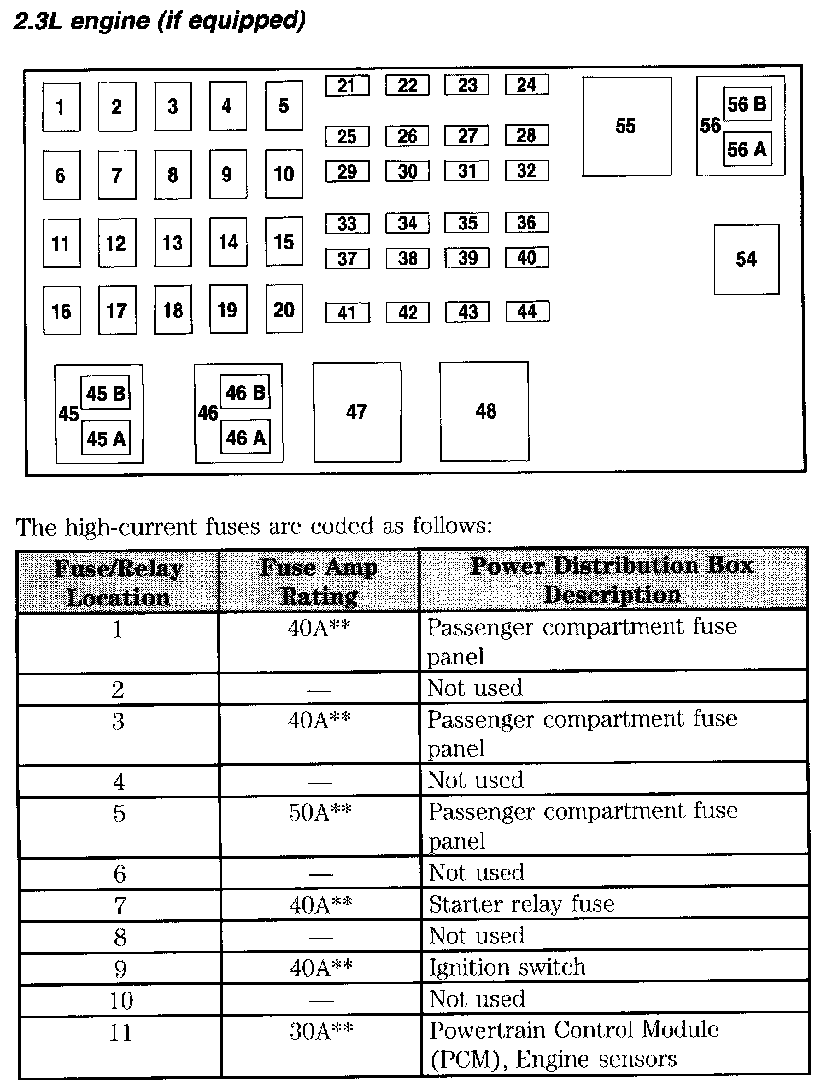

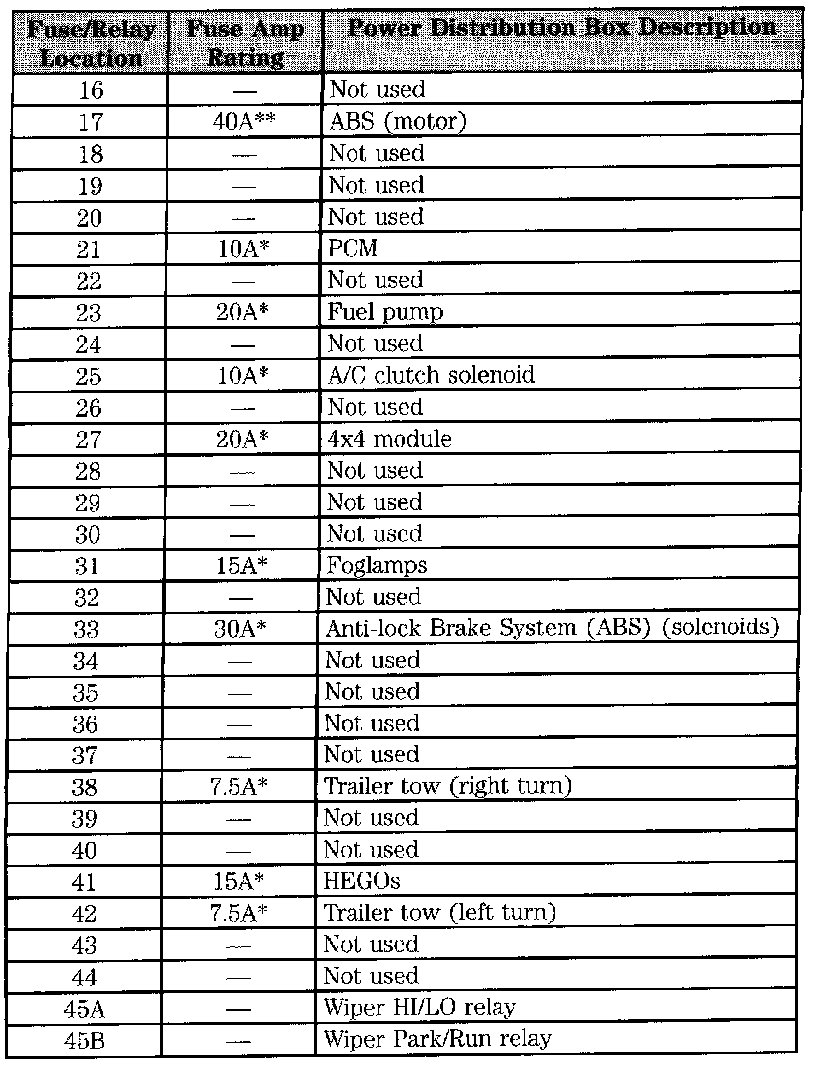

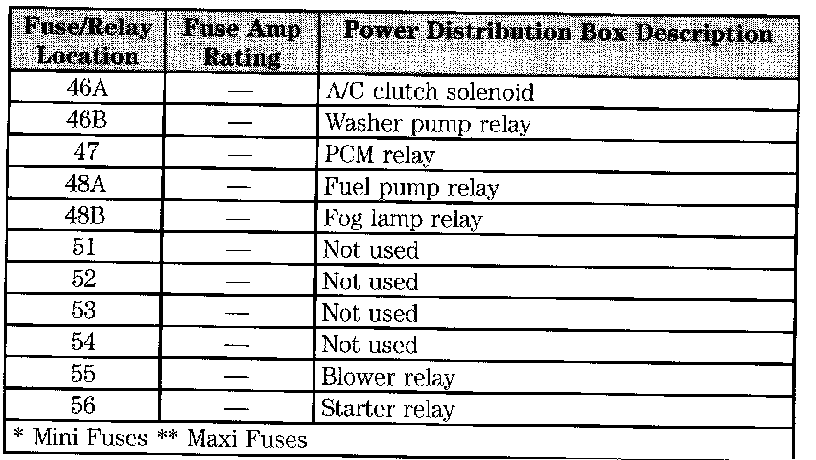

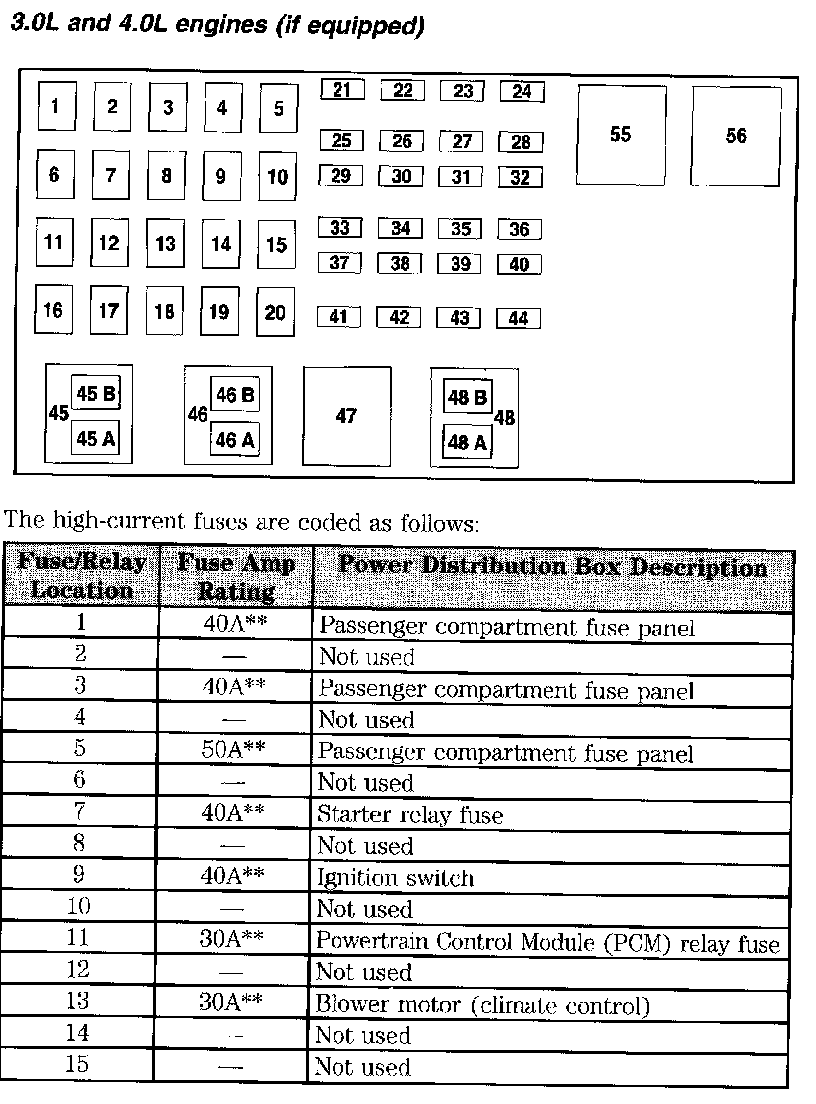

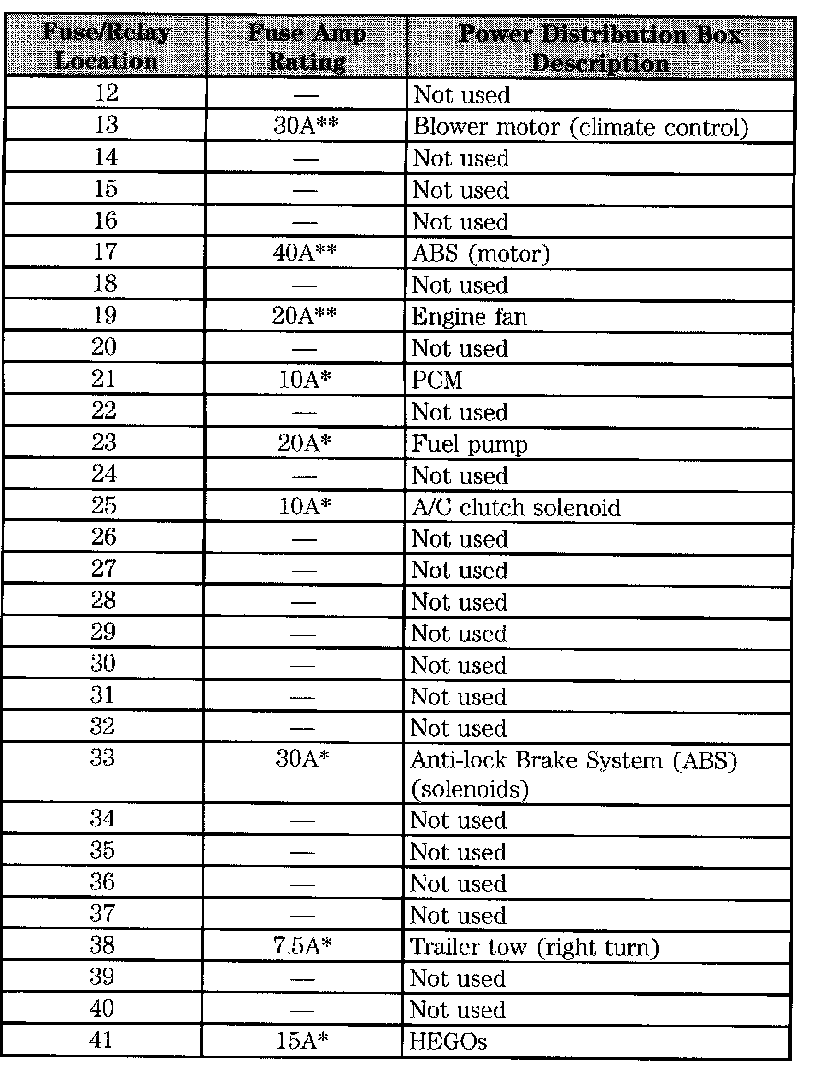

Fuse ID Engine Compartment
