Home
>>
Mazda
>>
2006
>>
B2300 L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Temperature Sensor
>>
Locations
>>
Component Locations
Component Locations

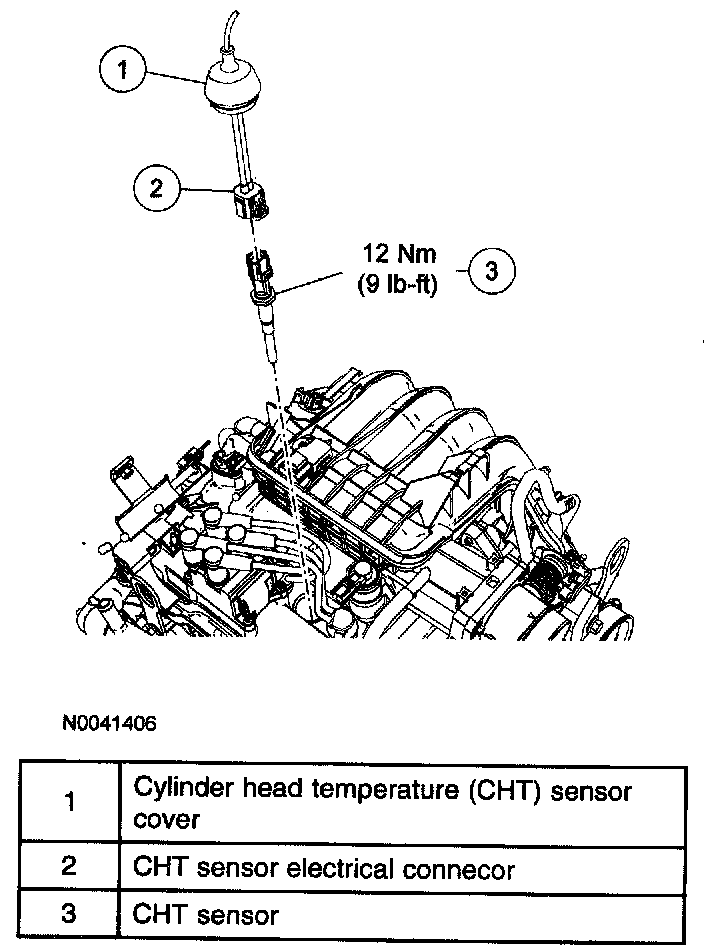

Cylinder Head Temperature Sensor:
