Symptom Troubleshooting Chart

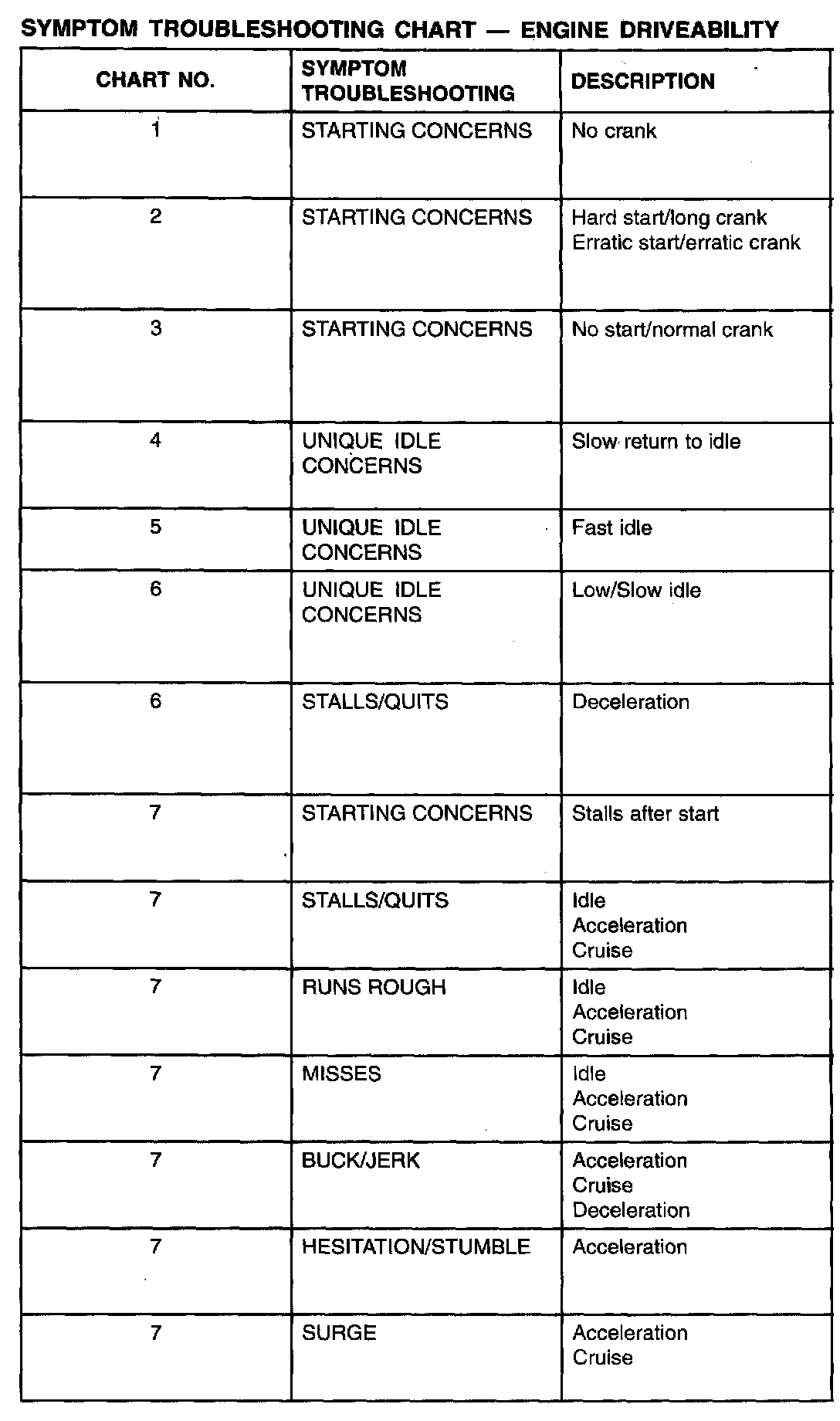

Symptom Troubleshooting Chart - Engine Driveability Part 1:

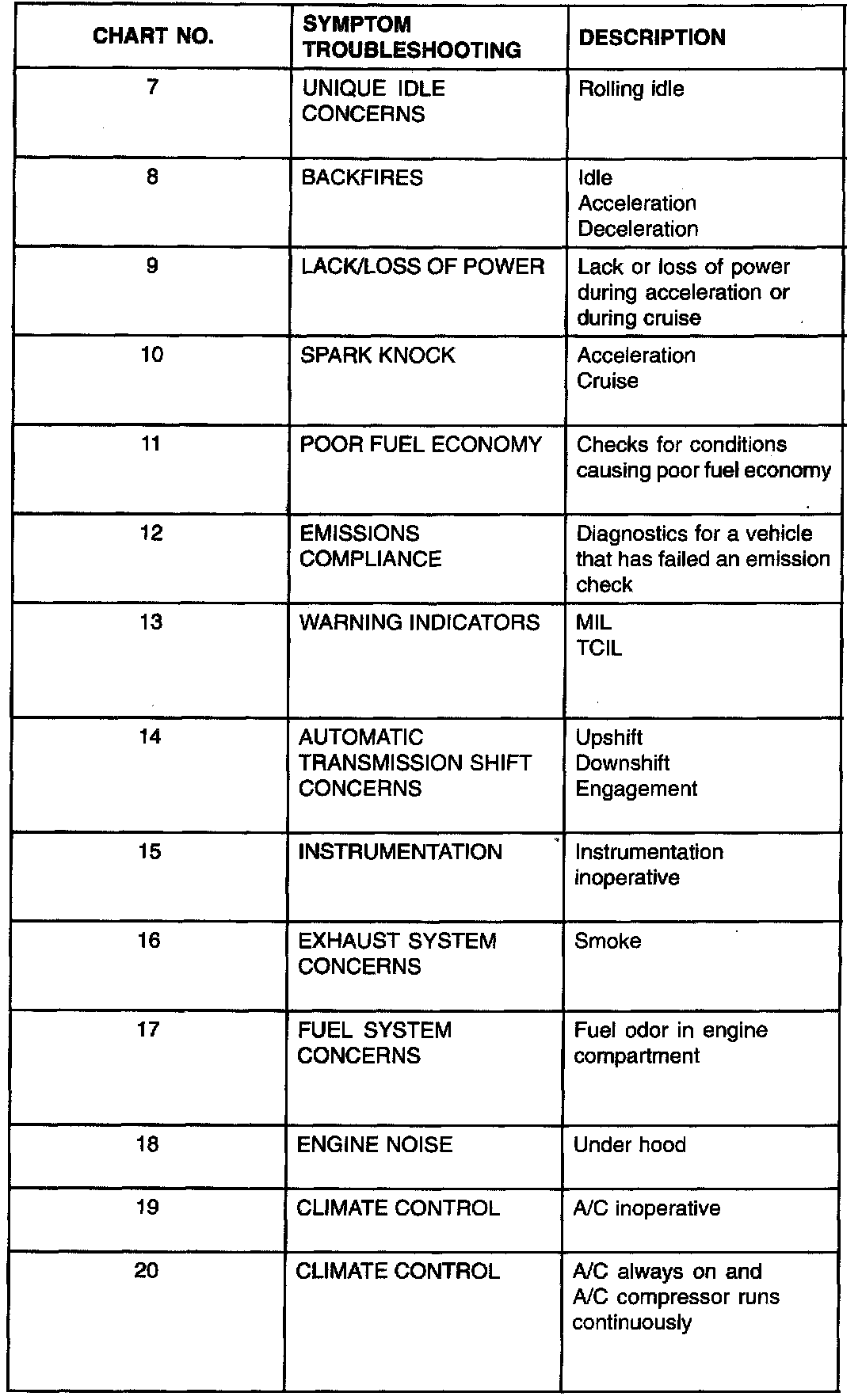

Symptom Troubleshooting Chart - Engine Driveability Part 2:

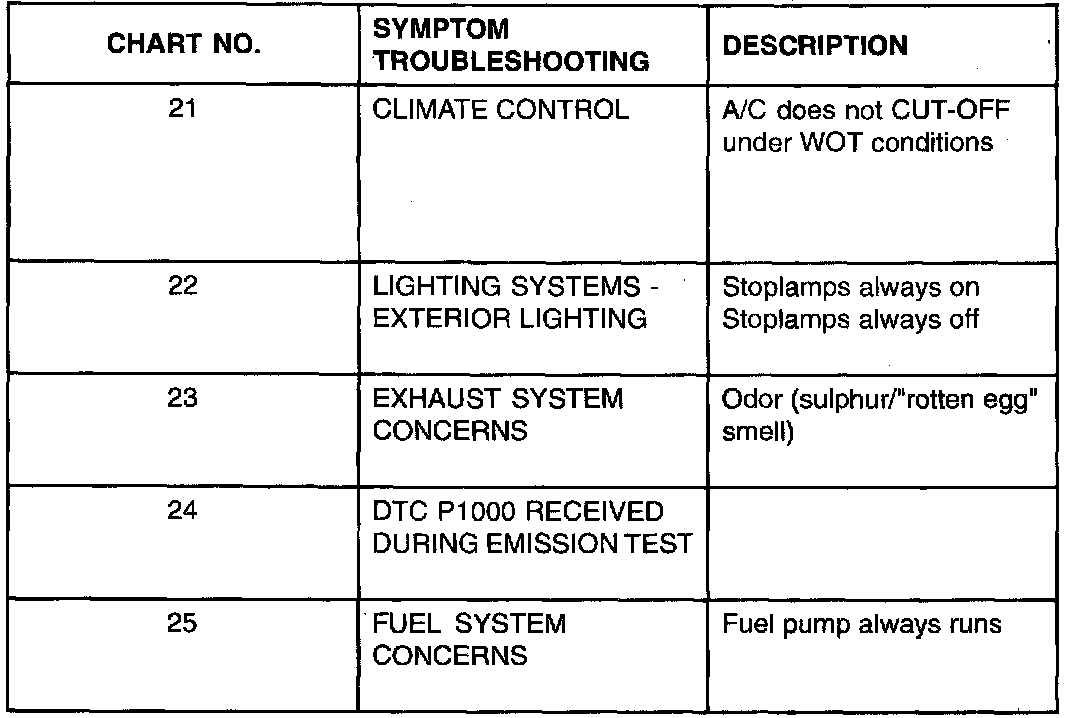

Symptom Troubleshooting Chart - Engine Driveability Part 3:
