Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL / INSTALLATION

1. Disconnect the negative battery cable.

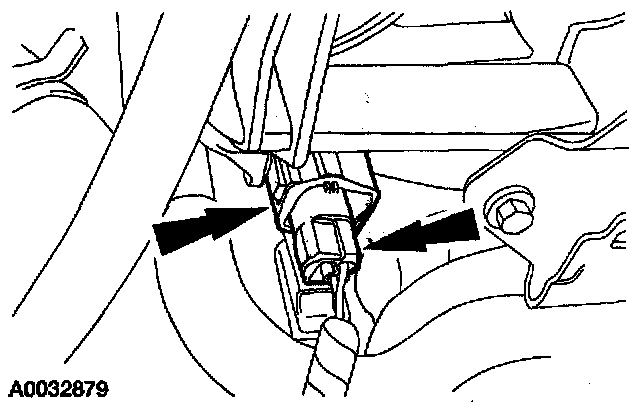

2. Disconnect the knock sensor (KS) electrical connector.

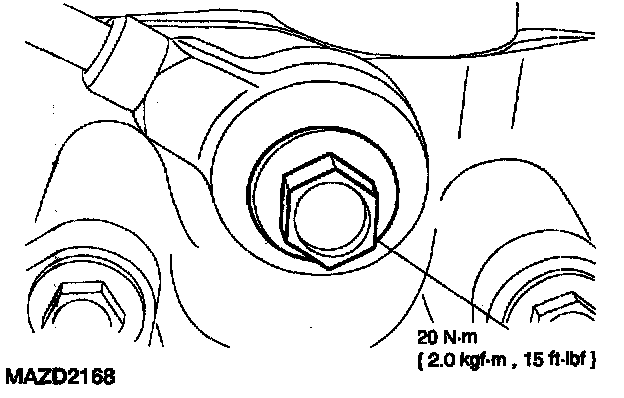

3. Remove the bolt and the KS.
4. To install, reverse the removal procedure.
