Restraints and Safety Systems: Diagrams

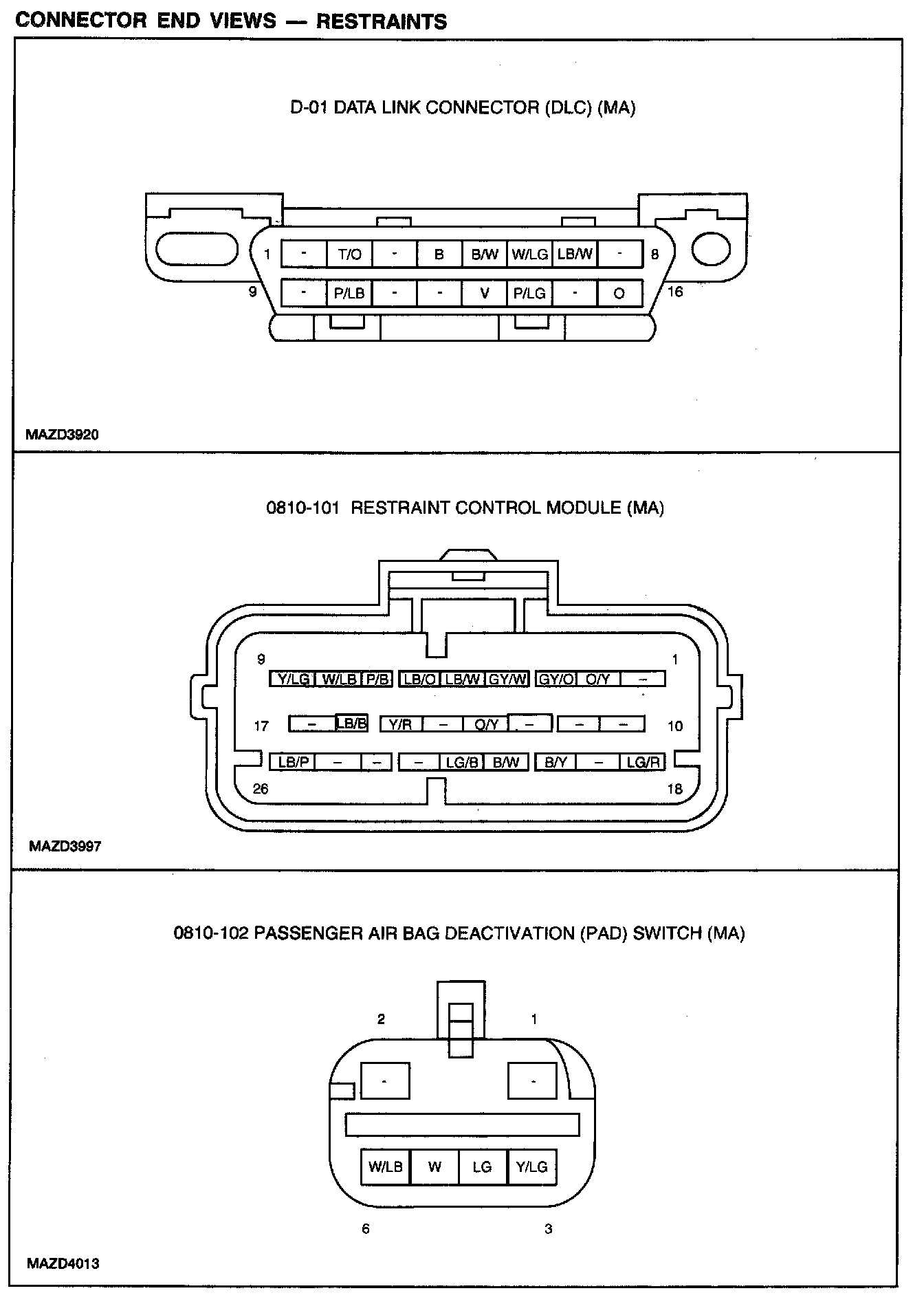

Connector End Views-Restraints (Part 1):

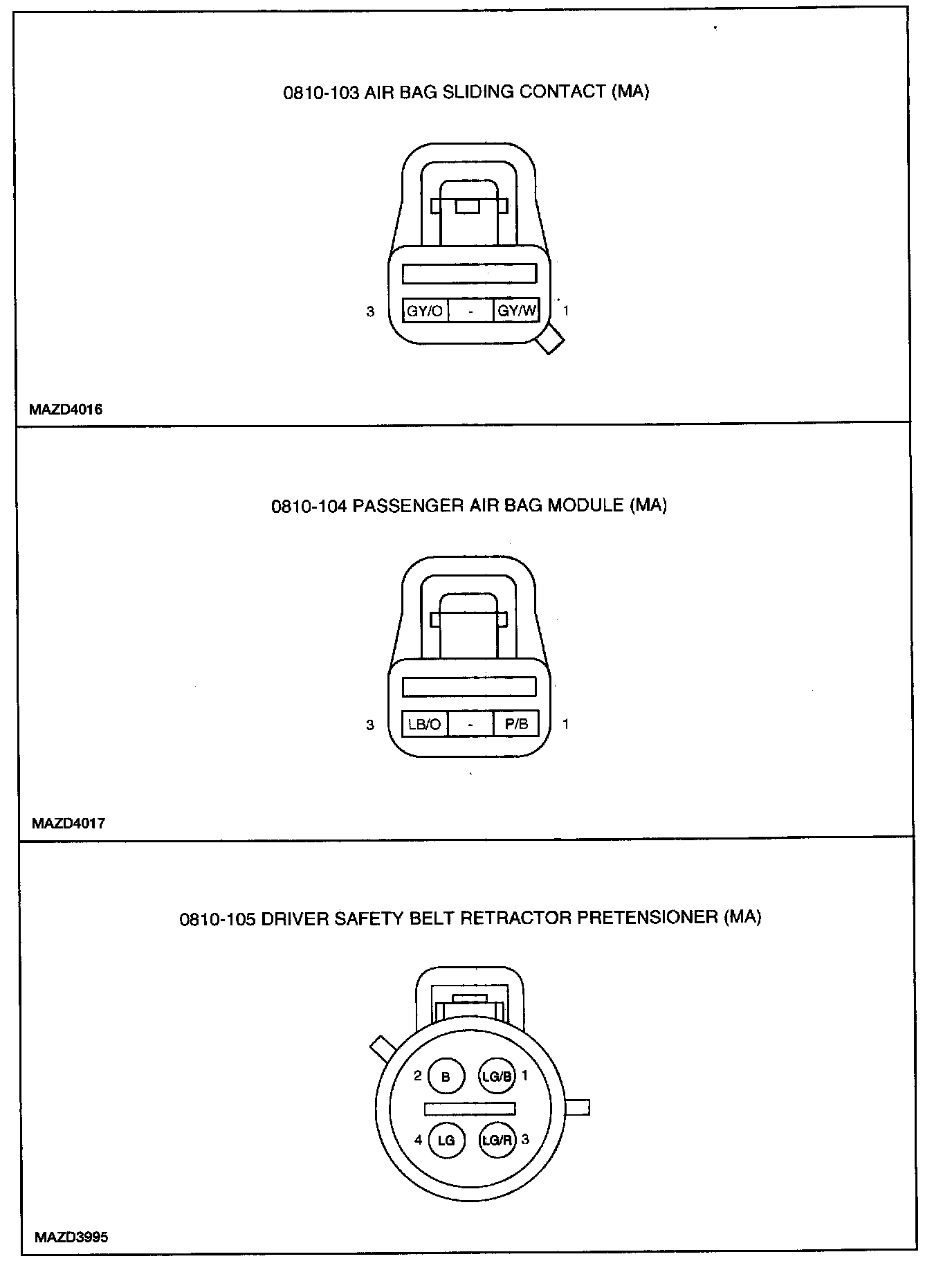

Connector End Views-Restraint (Part 2):

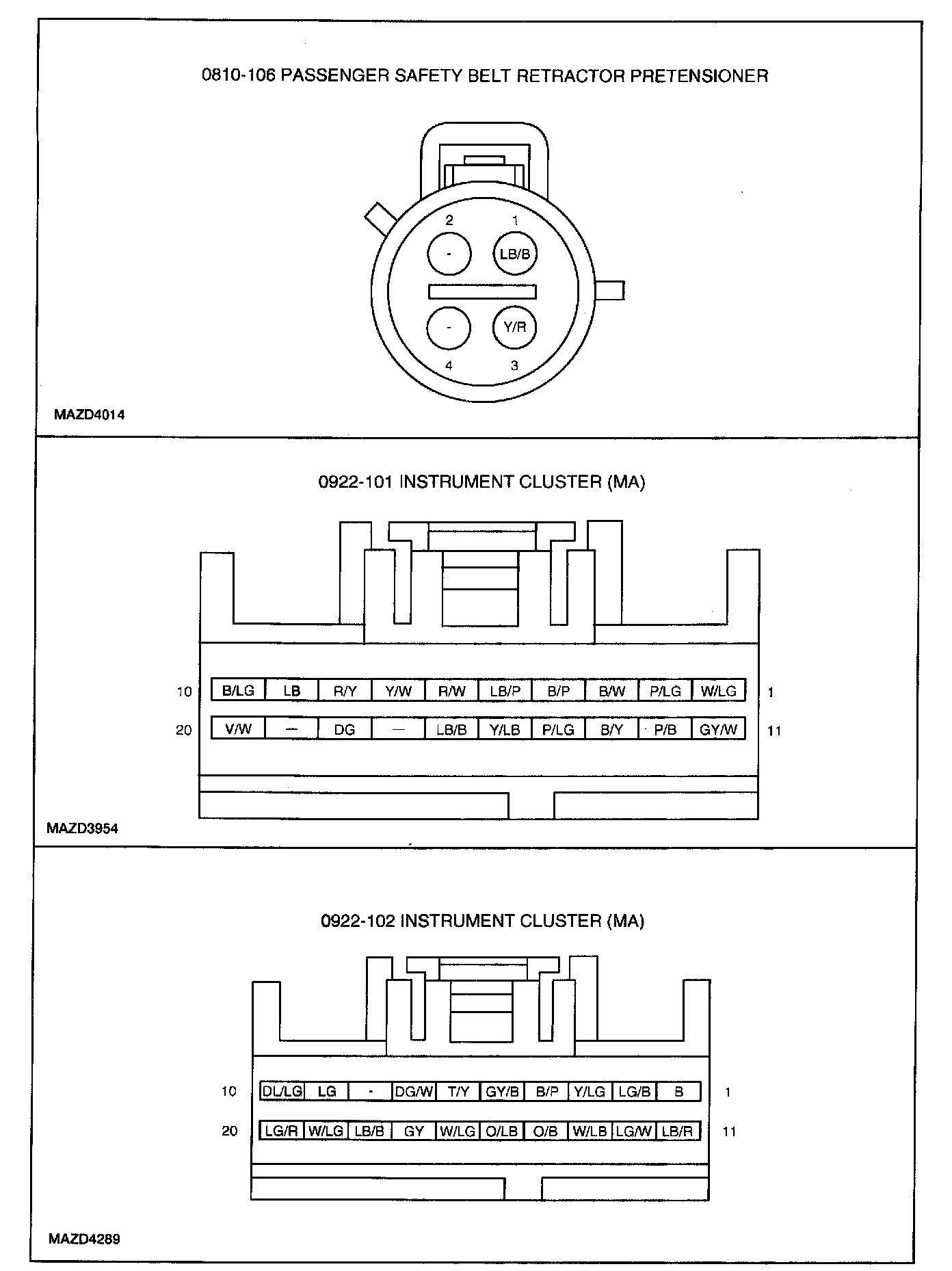

Connector End Views-Restraint (Part 3):
