Symptom Related Diagnostic Procedures

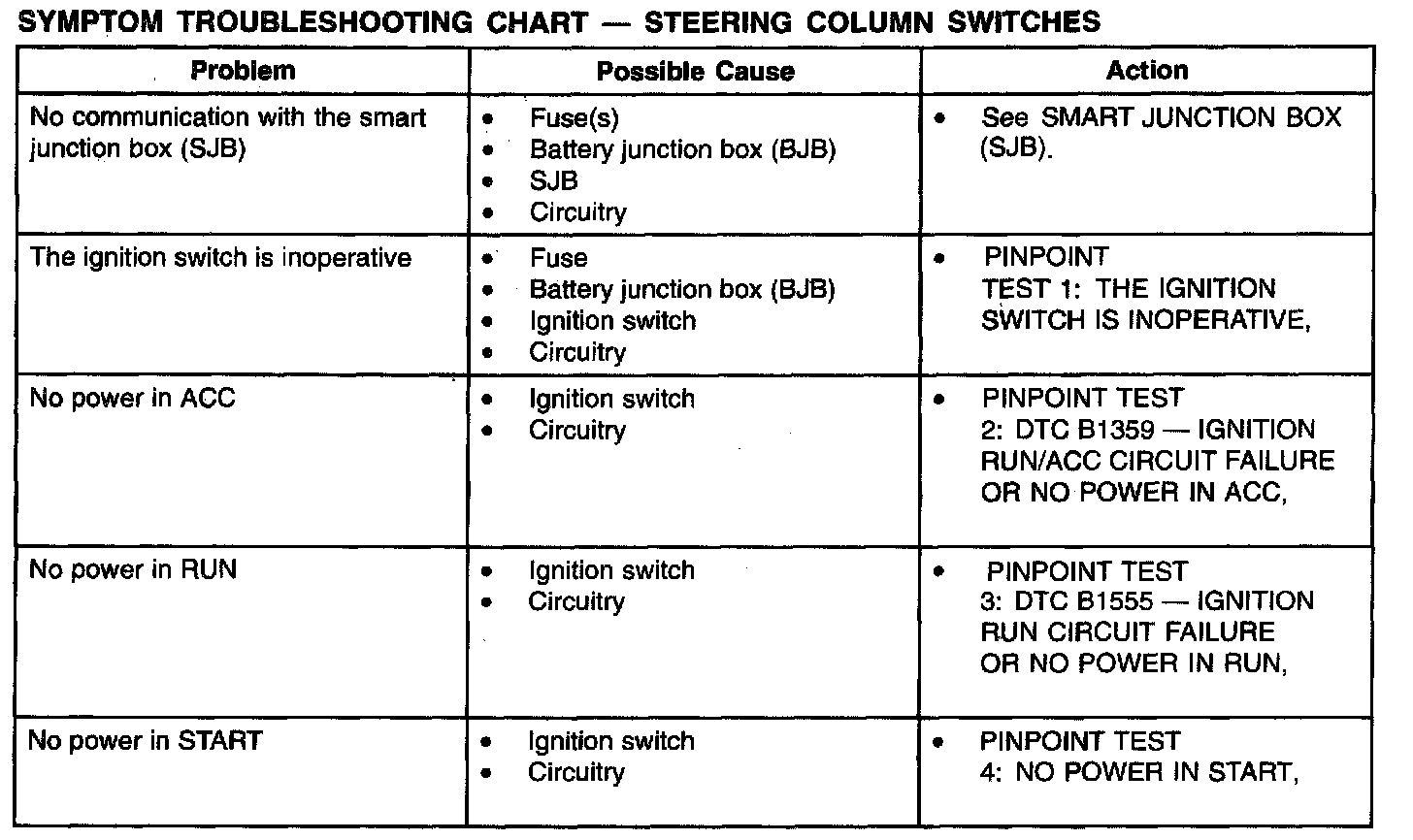

Symptom Troubleshooting Chart-Steering Column Switches (Part 1):



Symptom Troubleshooting Chart-Steering Column Switches (Part 2):
