Pinpoint Test 1

AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 1: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE / LOCK PROPERLY

Step 1-Step 7:

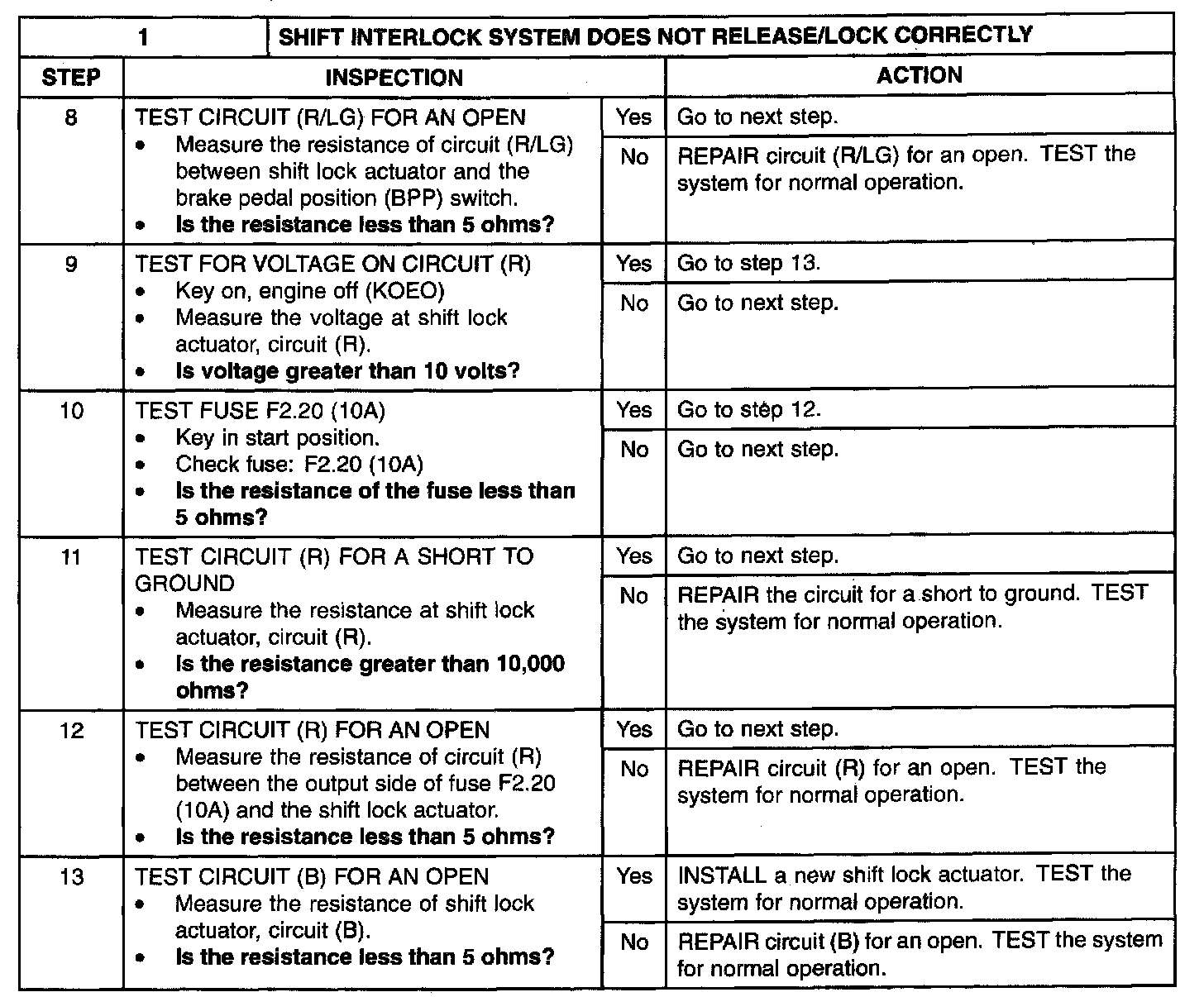

Step 8-Step 13:
