Pinpoint Test 2

AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 2: SHIFT CONTROL IS OUT OF PROPER GEAR RELATIONSHIP

Step 1:

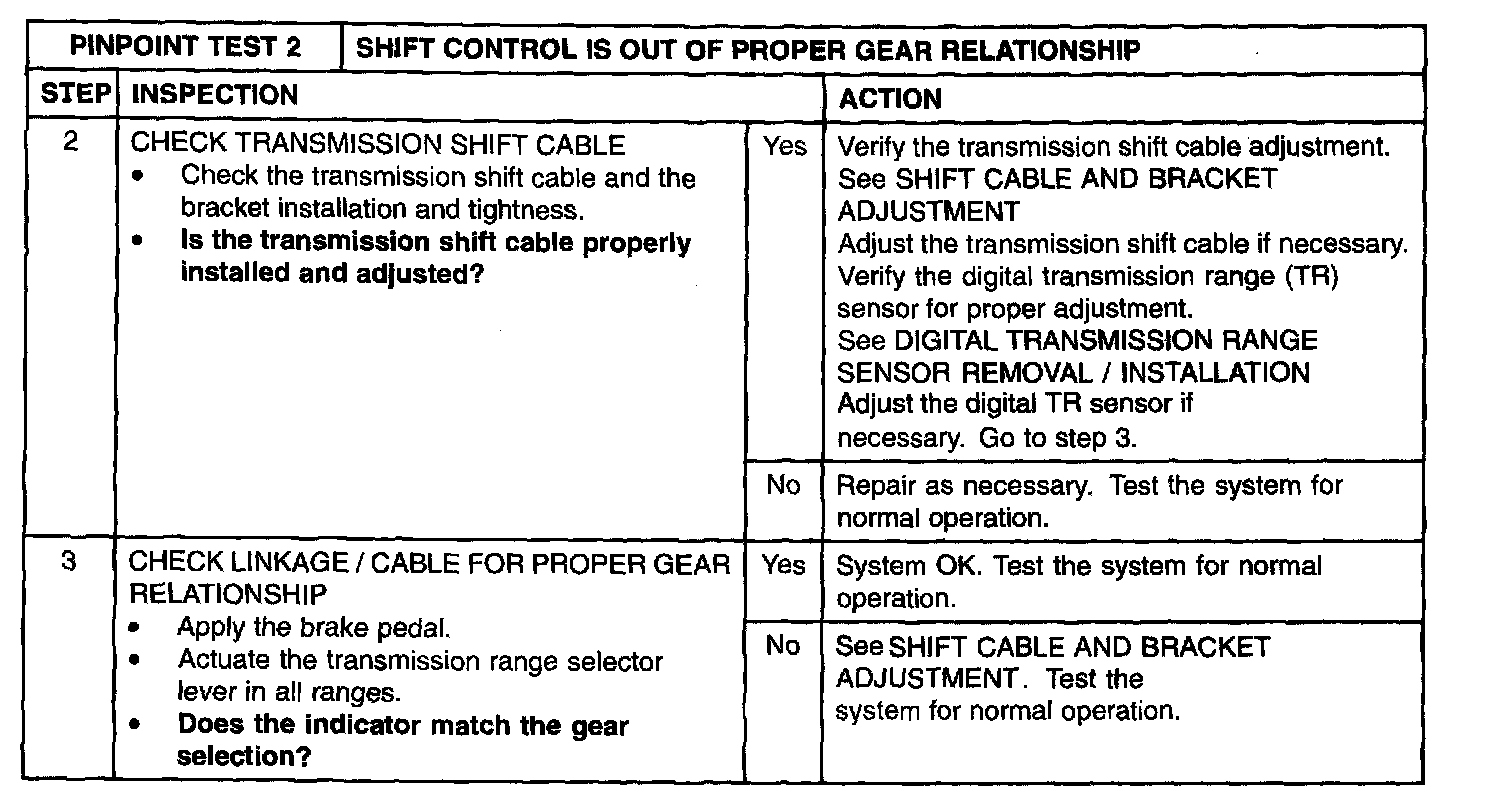

Step 2-Step 3:
