Pinpoint Test 5

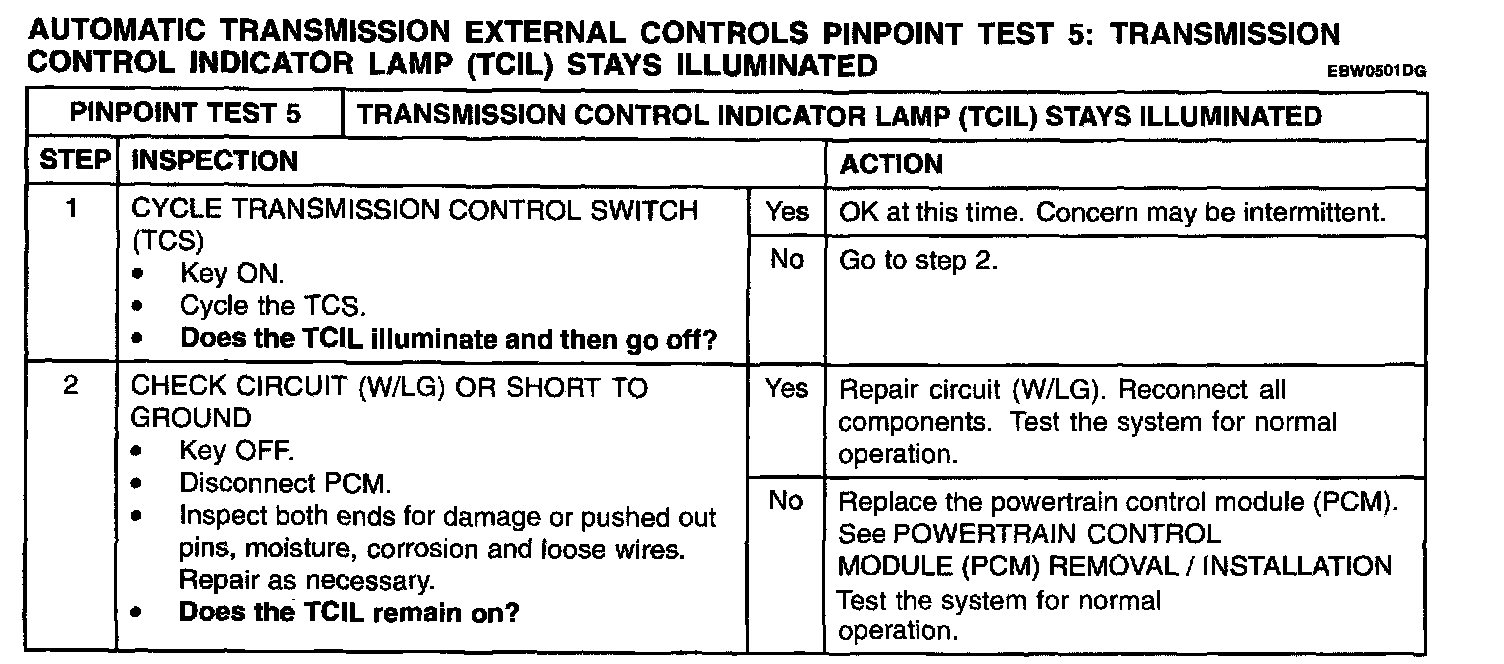

AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 5: TRANSMISSION CONTROL INDICATOR LAMP (TCIL) STAYS ILLUMINATED

Step 1-Step 2:
