Pinpoint Test 13

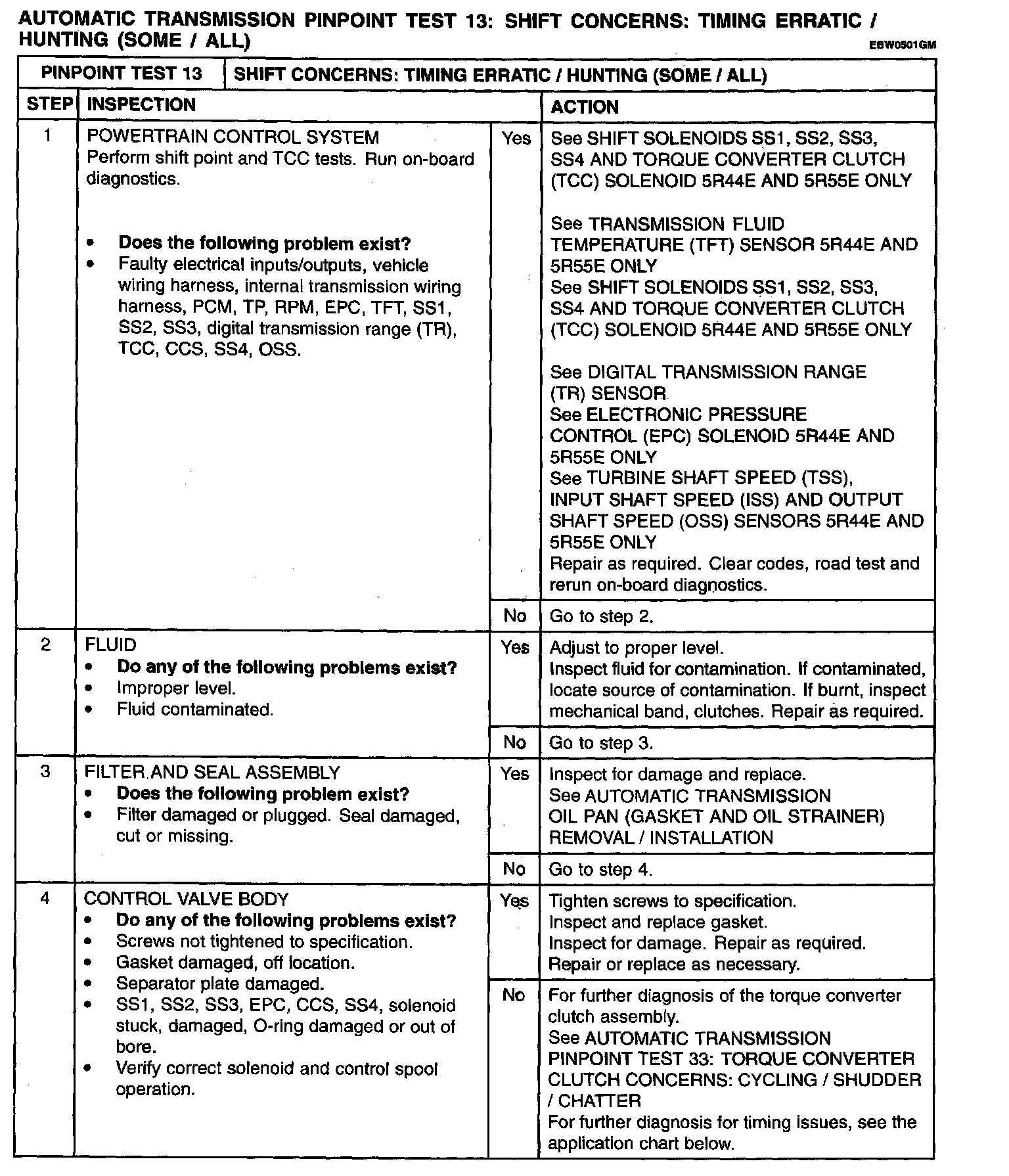

AUTOMATIC TRANSMISSION PINPOINT TEST 13: SHIFT CONCERNS: TIMING ERRATIC / HUNTING (SOME / ALL)

Step 1-Step 4:

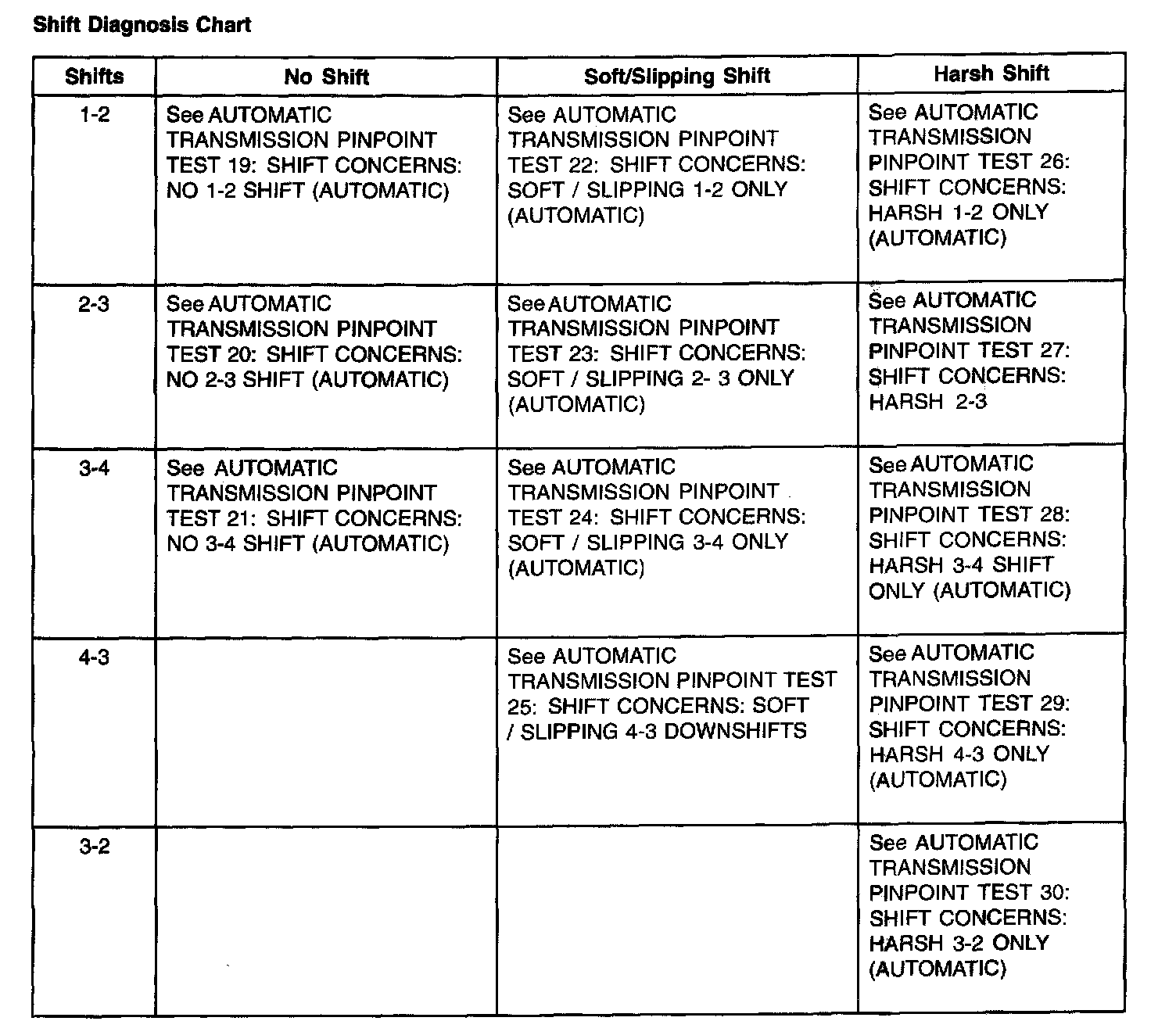

Shift Diagnosis Chart:
