AUTOMATIC TRANSMISSION PINPOINT TEST 3: ENGAGEMENT CONCERNS: HARSH REVERSE ONLY

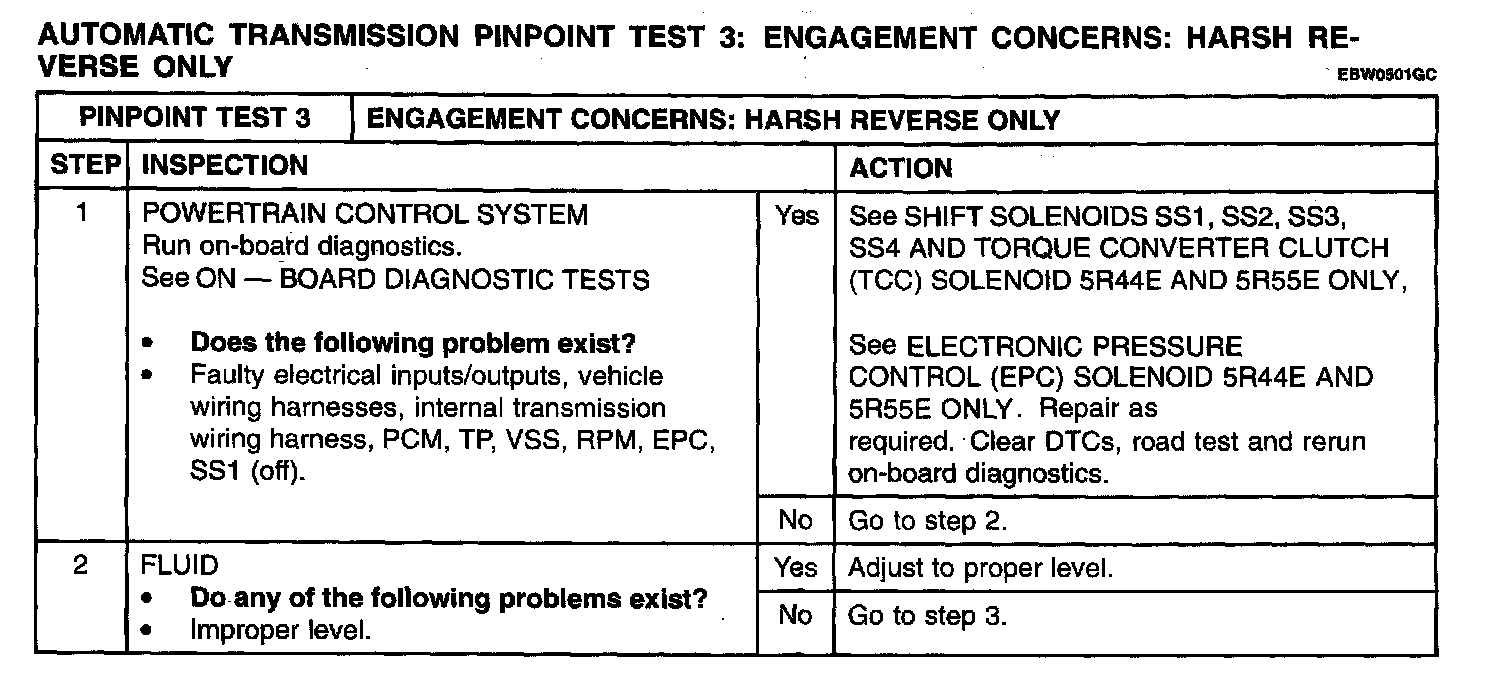

Step 1-Step 2:

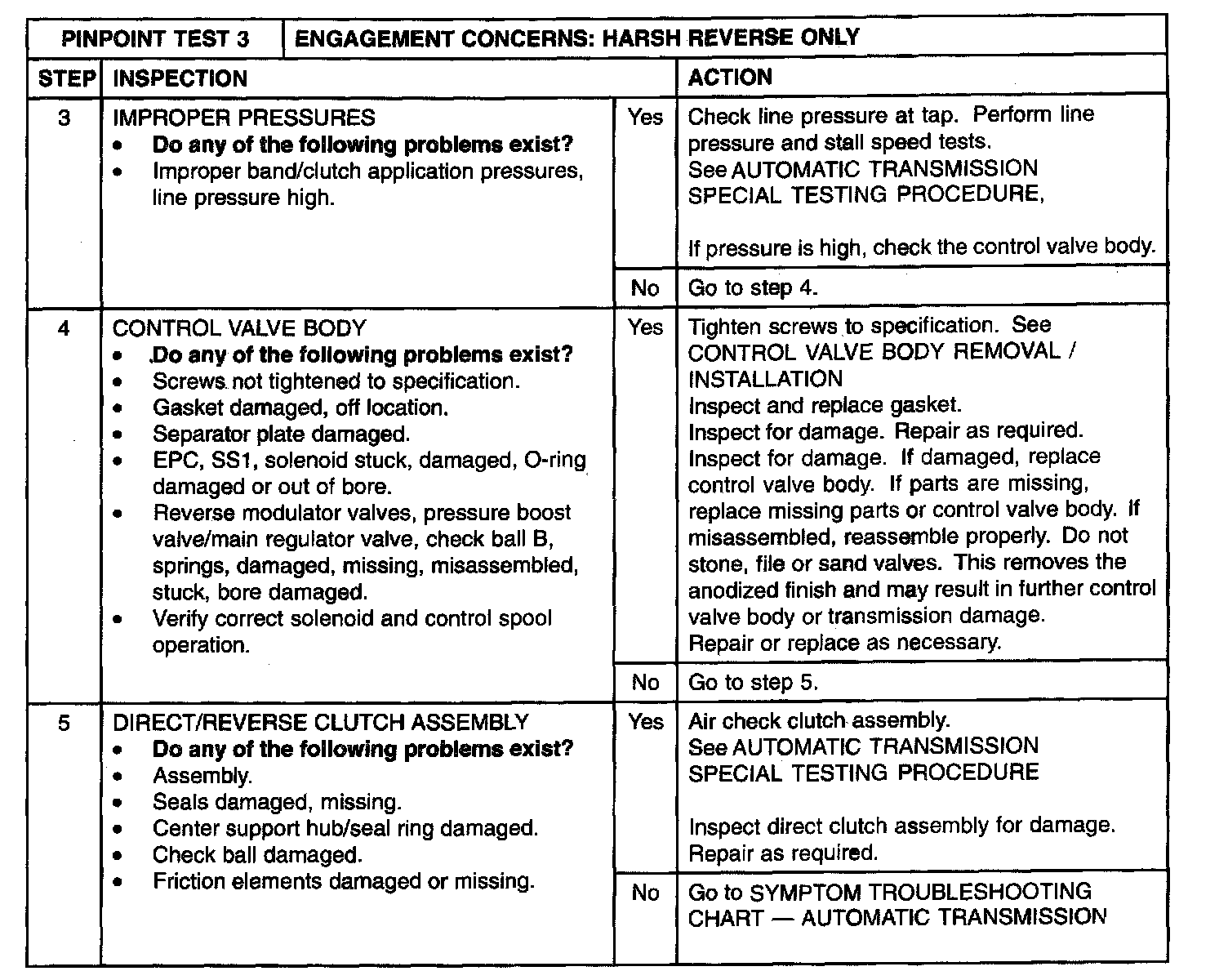

Step 3-Step 5:
