Pinpoint Test 1

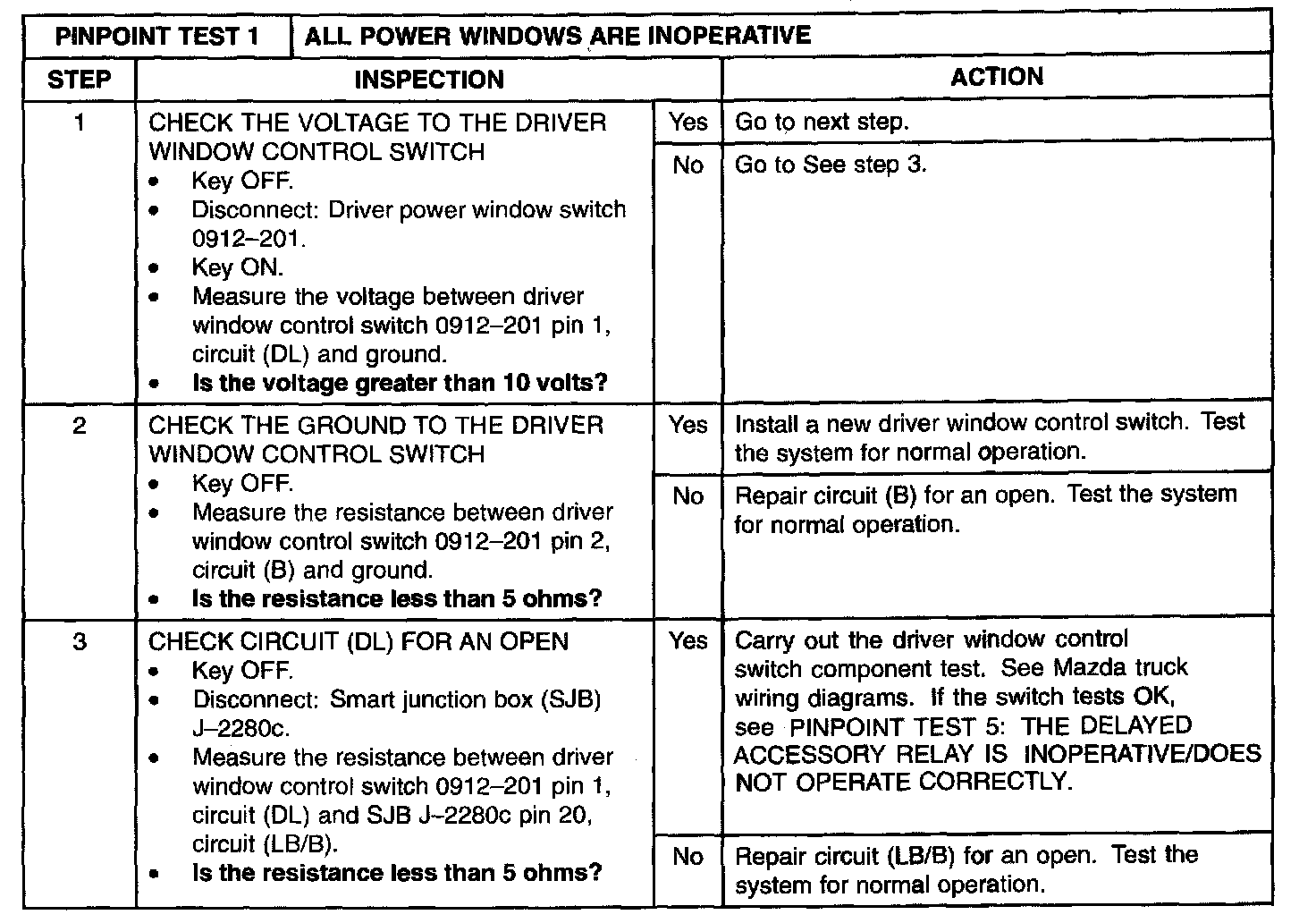

PINPOINT TEST 1: ALL POWER WINDOWS ARE INOPERATIVENormal Operation
Under normal operation, the driver window control switch is supplied voltage through circuits (LB/B) and (DL). Ground for the switch is provided through circuit (B).
Possible Causes
- An open in circuit (B), (LB/B) or (DL)
- Driver window control switch
