Pinpoint Test 5
PINPOINT TEST 5: THE DELAYED ACCESSORY RELAY IS INOPERATIVE / DOES NOT OPERATE CORRECTLYNormal Operation
Under normal operation, voltage is supplied to the accessory delay relay coil through circuit (B/LG) and the accessory delay relay switch through circuit (R). Ground for the accessory delay relay is provided internally through the smart junction box (SJB).
Possible Causes
- Fuse(s)
- SJB
- Accessory delay relay

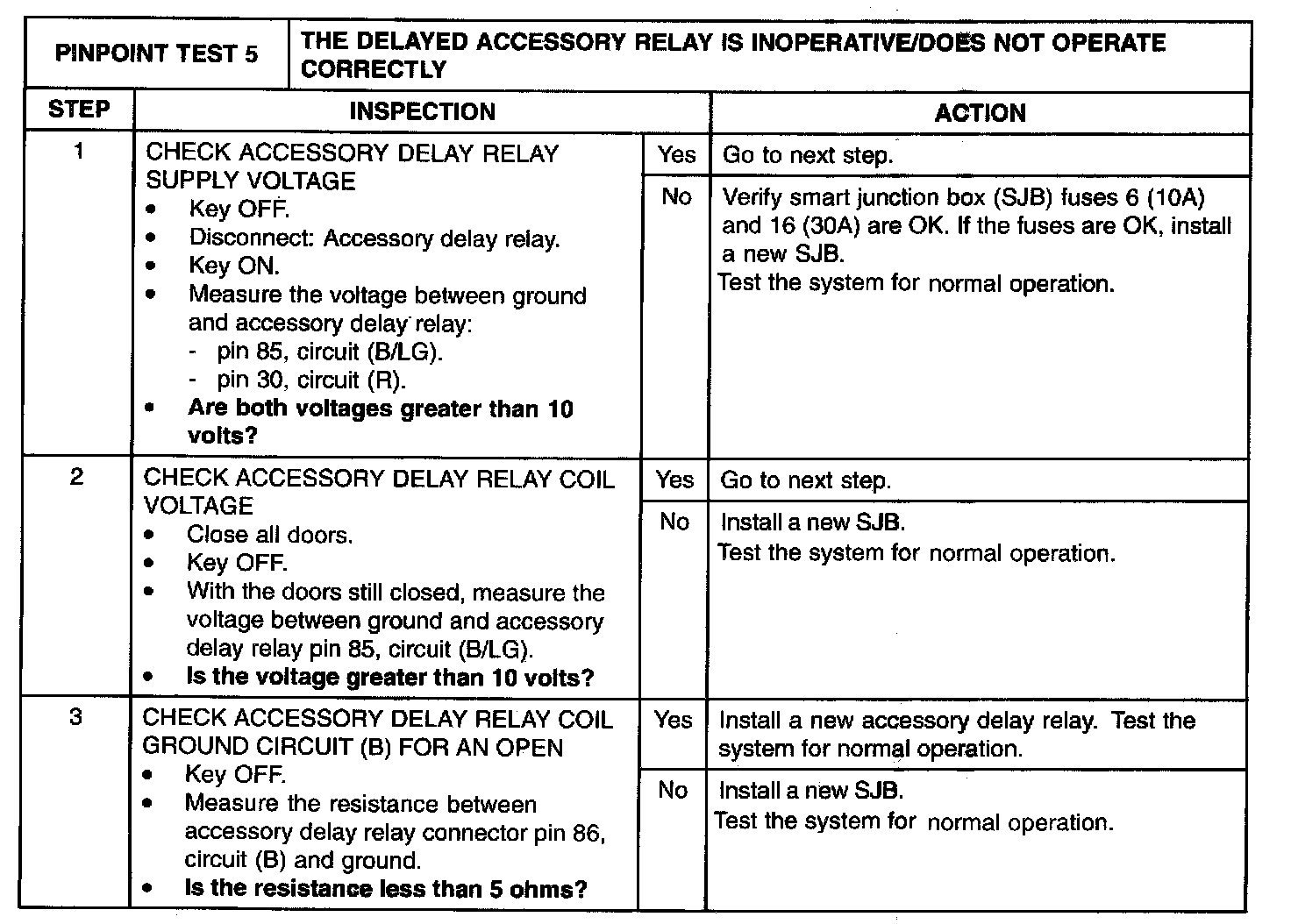

Step 1-Step 3:
