Pinpoint Test 6
PINPOINT TEST 6: THE DELAYED ACCESSORY RELAY DOES NOT TURN OFF/ALL WINDOWS OPERATE WITH THE IGNITION IN THE OFF POSITIONNormal Operation
Under normal operation, voltage is supplied to the accessory delay relay coil through circuit (B/LG) and the accessory delay relay switch through circuit (R). Ground for the accessory delay relay is provided internally through the smart junction box (SJB). When the relay is energized, voltage is sent to the power window switches through circuit (LB/B).
Possible Causes
- A short to voltage in circuit (LB/B)
- SJB
- Accessory delay relay

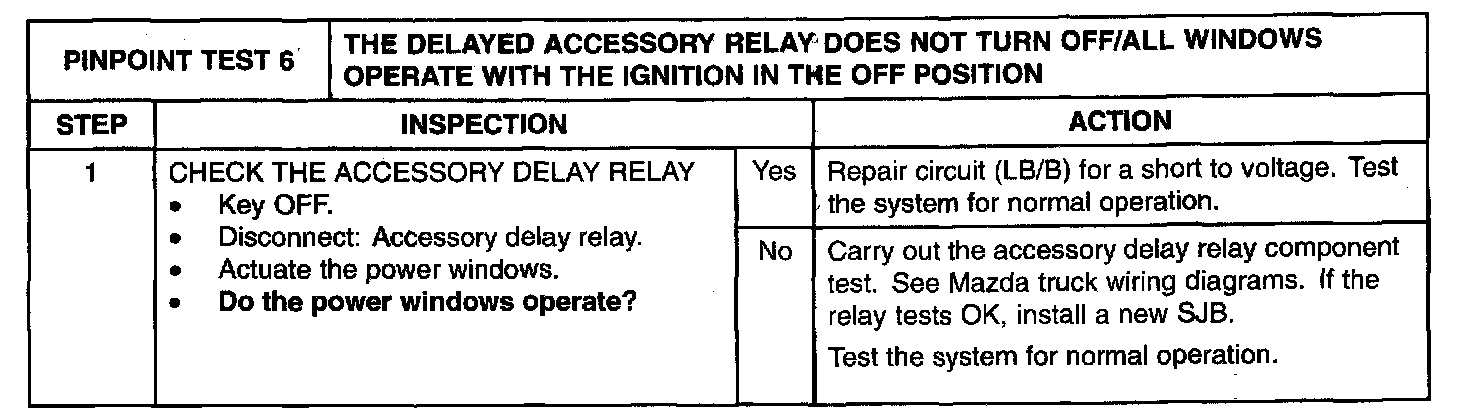

Step 1:
