Connector Views

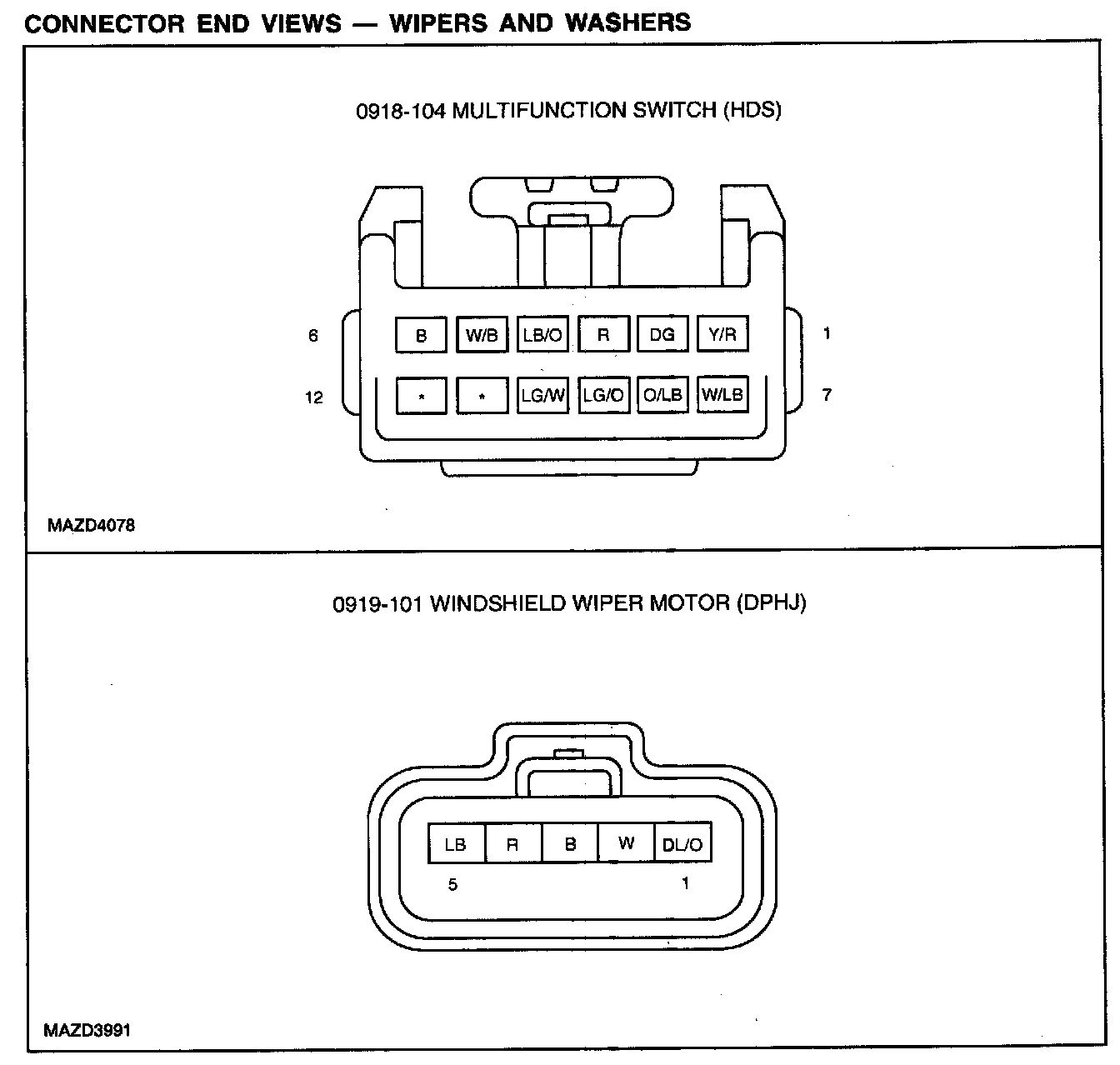

Connector End Views-Wipers And Washers (Part 1):

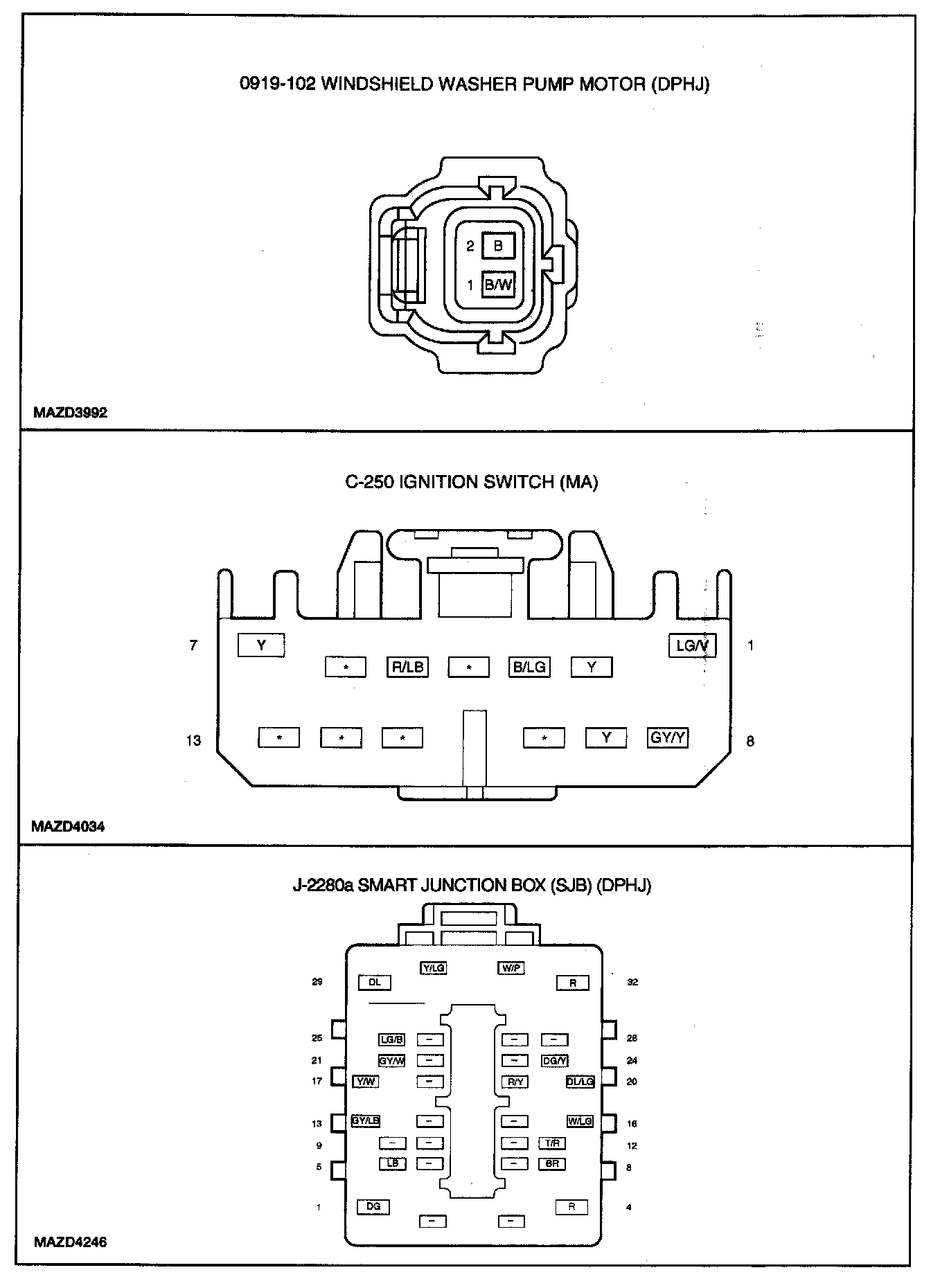

Connector End Views-Wipers And Washers (Part 2):

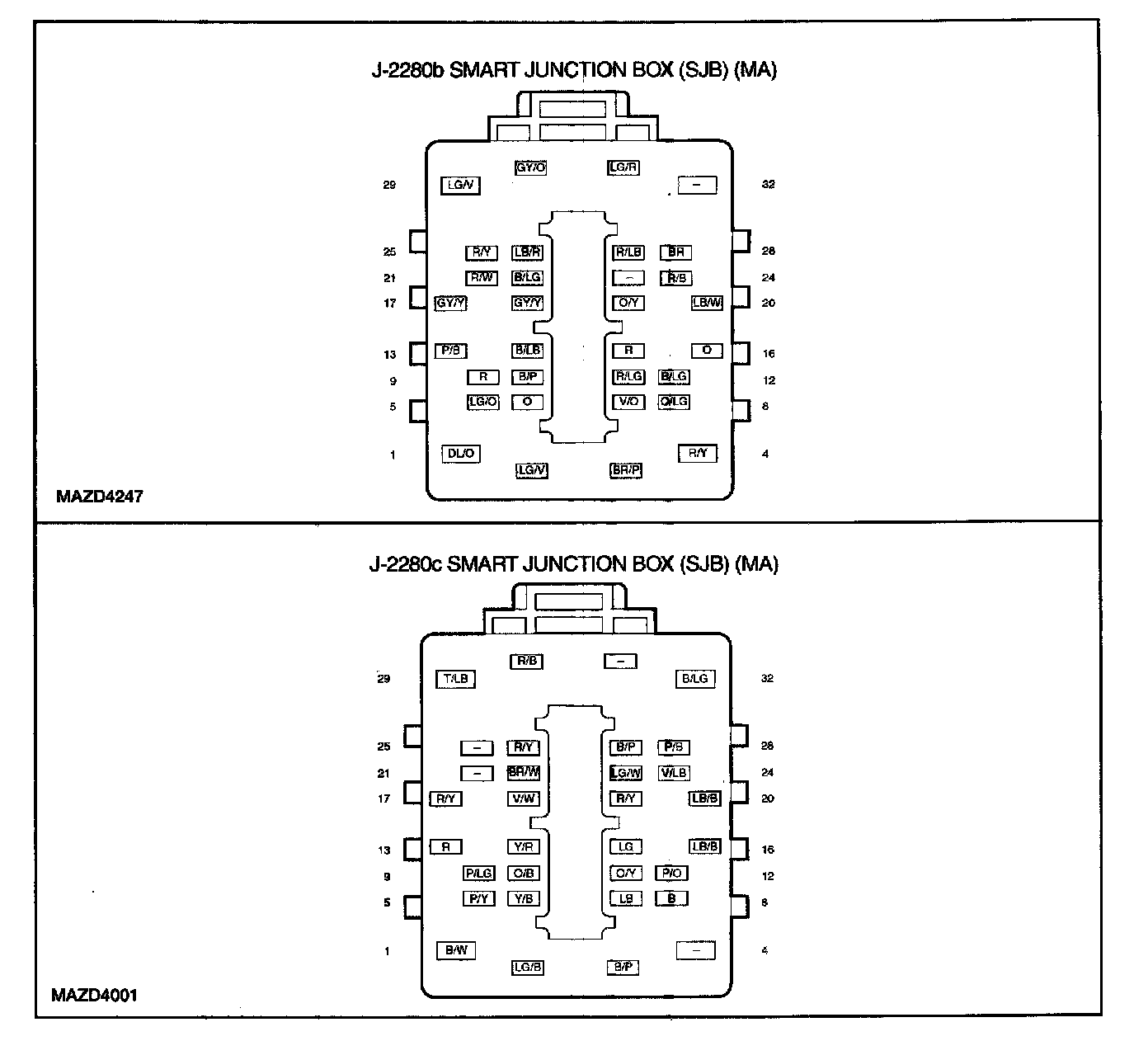

Connector End Views-Wipers And Washers (Part 3):

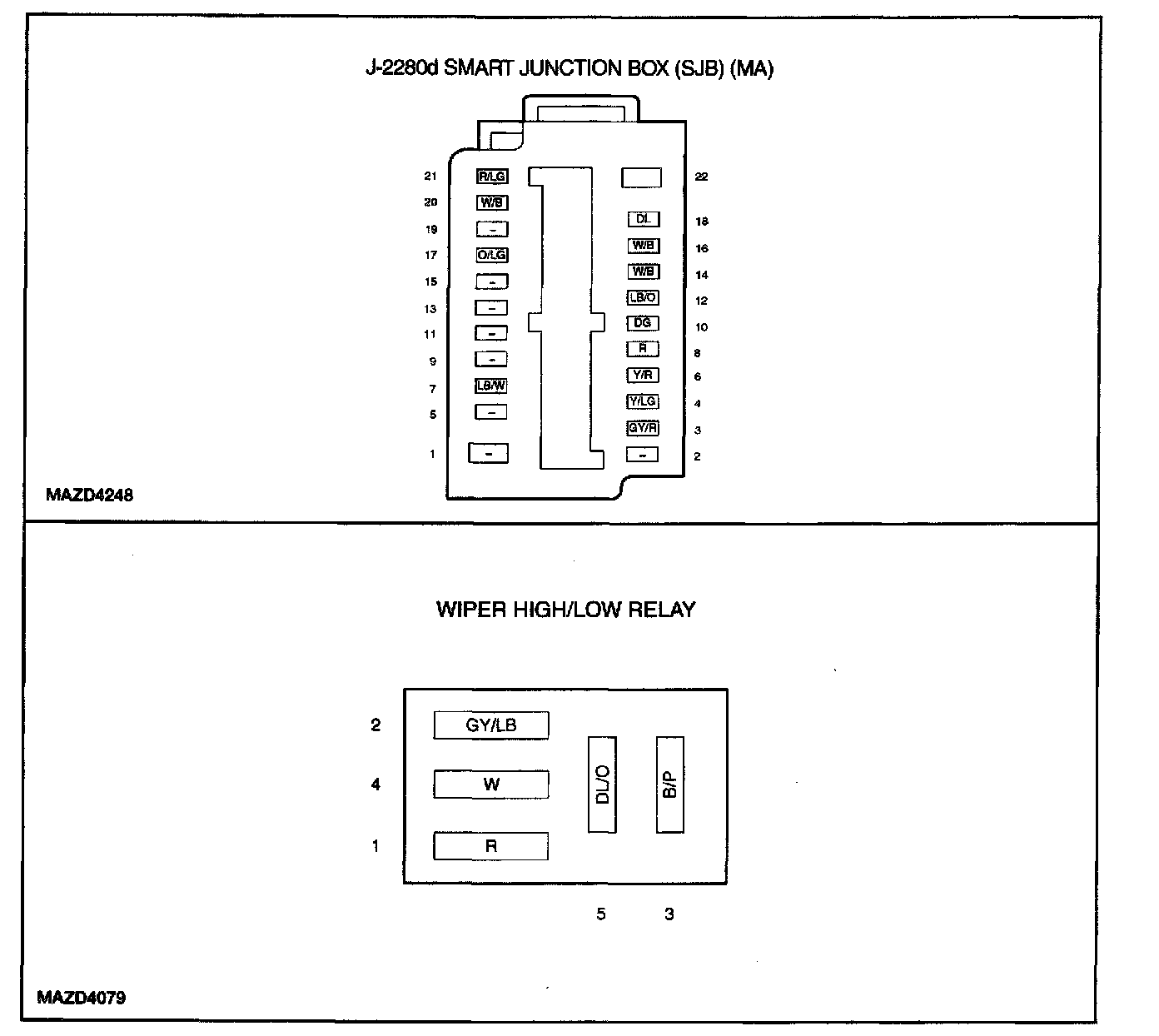

Connector End Views-Wipers And Washers (Part 4):
