Pinpoint Test 5

PINPOINT TEST 5: THE WIPERS WILL NOT PARK AT THE CORRECT POSITION

Normal Operation
Under normal operation, voltage is provided to the wiper motor park switch through circuit (R). When the wiper motor is not parked, voltage is sent from the park switch to the run/park relay through circuit (LB). The SJB monitors the park switch status through circuit (LB).

Possible Causes
- An open in circuit (LB) or (R)
- A short to ground in circuit (LB)
- Wiper run/park relay
- Wiper motor
- Smart junction box (SJB)

Step 1-Step 5:

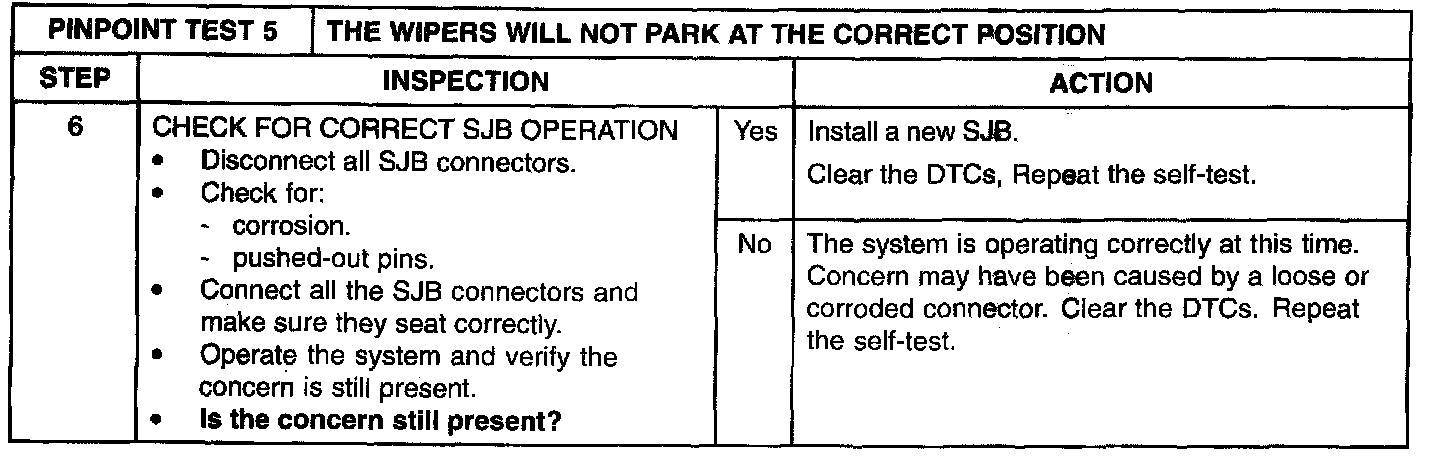

Step 6:
