Engine Oil: Service and Repair

ENGINE OIL REPLACEMENT - 3.0L
1. Warm up the engine to normal operating temperature.
2. Remove the oil filler cap and oil drain plug.
3. Drain the oil into a suitable container.
4. Install a new gasket and the drain plug.
Tightening torque 23 Nm (17 ft. lbs.)

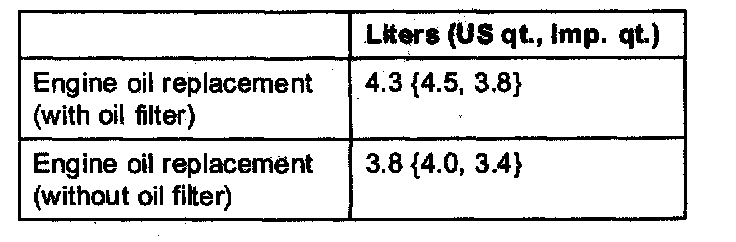

5. Refill the engine with the specified type and amount of engine oil.
