Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR REMOVAL / INSTALLATION

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.

2. Disconnect the negative battery cable.

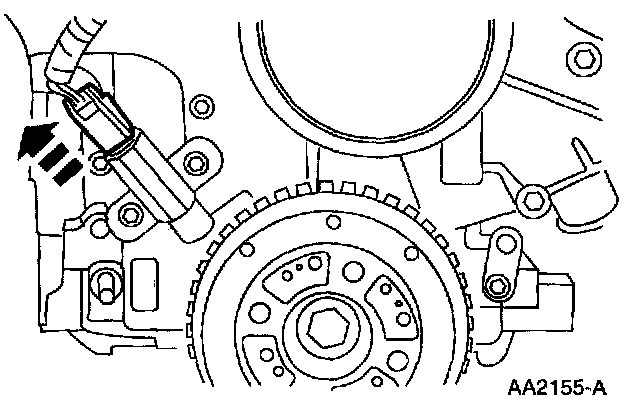

3. Disconnect the crankshaft position (CKP) sensor electrical connector.

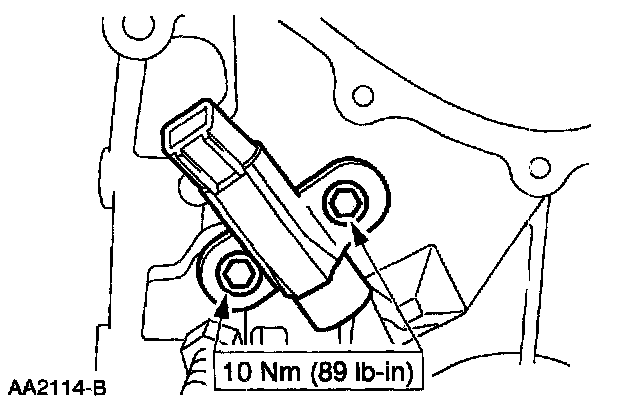

4. Remove the bolts and the CKP sensor.
5. To install, reverse the removal procedure.
