Knock Sensor: Service and Repair

KNOCK SENSOR (KS) REMOVAL / INSTALLATION

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.
2. Disconnect the negative battery cable.

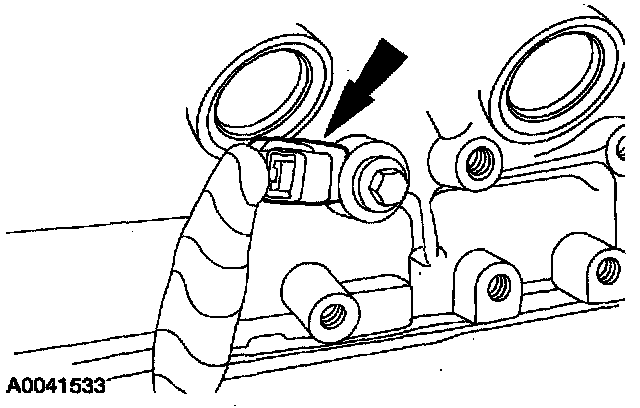

3. Disconnect the knock sensor (KS) electrical connector.




4. Remove the bolt and the KS.

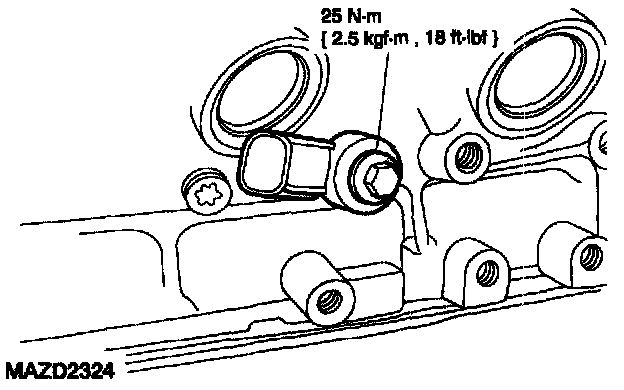

5. To install, reverse the removal procedure.
