Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR REMOVAL / INSTALLATION

Removal and Installation

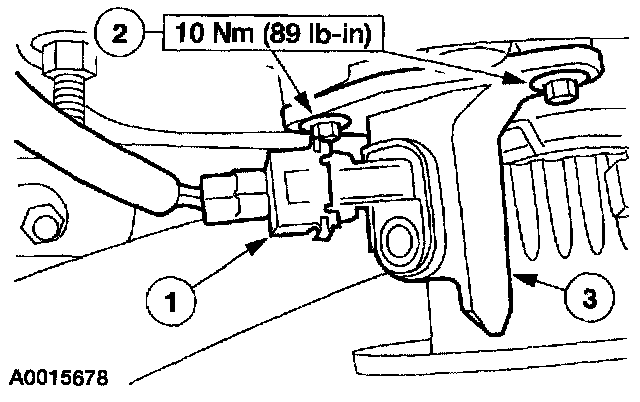

1. Remove the crankshaft position (CKP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolts.
3. Remove the sensor.

NOTE: The new CKP sensor must be touching the damper. The new sensor has wear tabs that will wear off after several engine revolutions.

2. To install, reverse the removal procedure.
