Home
>>
Mazda
>>
2006
>>
B4000 V6-4.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Component Locations
Component Locations

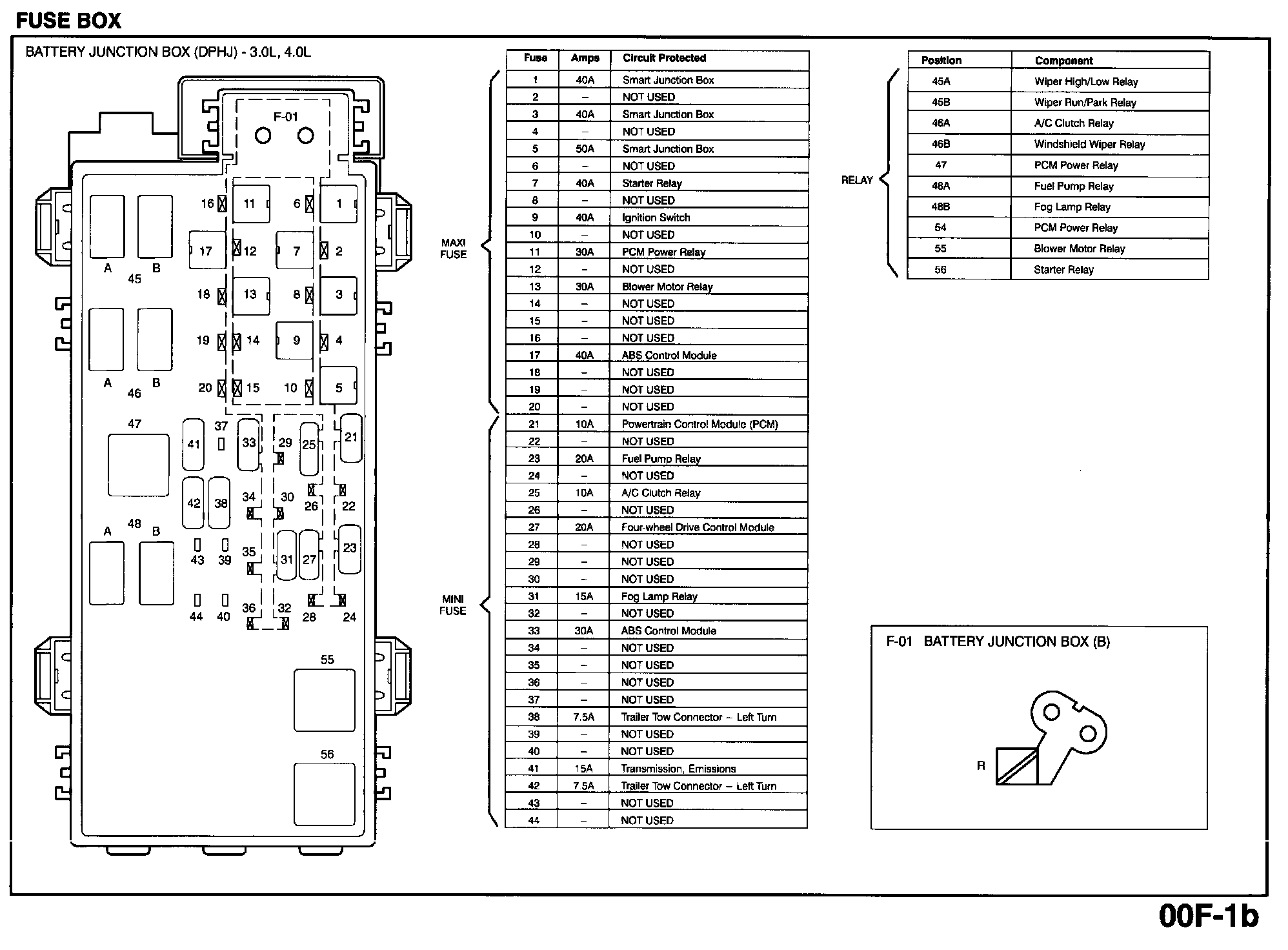

Battery Junction Box (DPHJ):

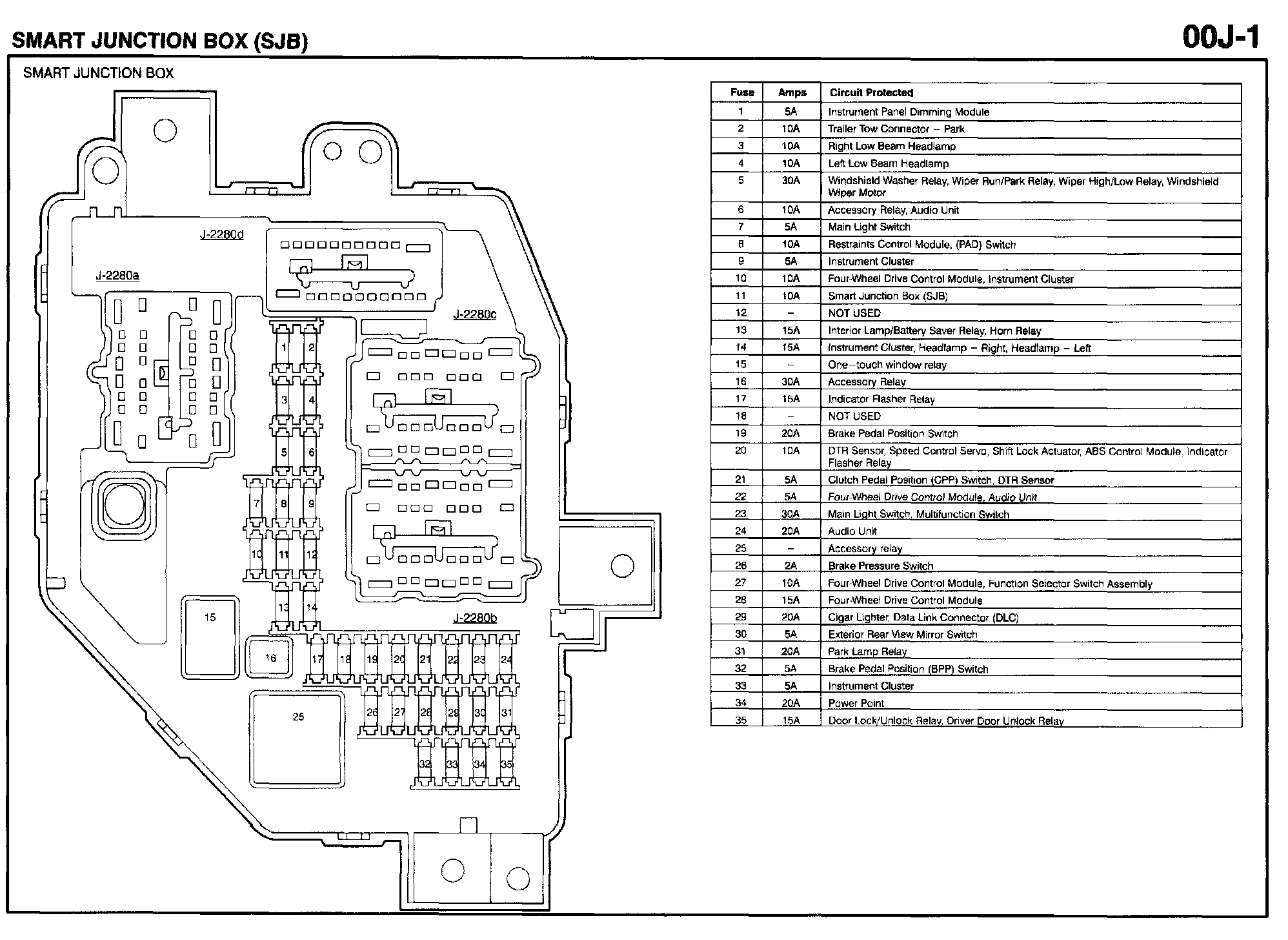

Smart Junction Box (SJB):
