Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSOR REMOVAL/INSTALLATION

1. Disconnect the battery ground cable.

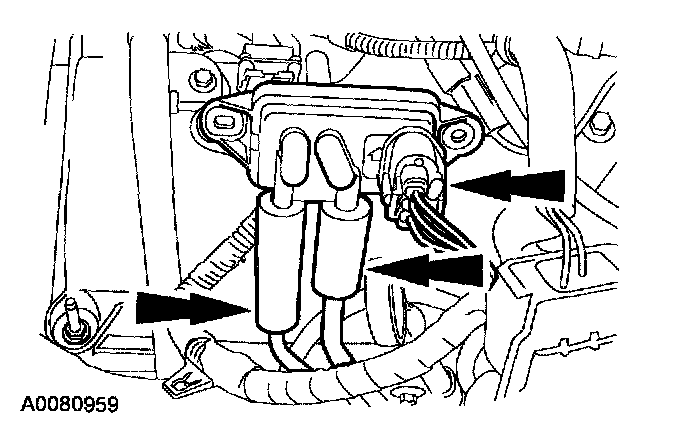

2. Remove the differential pressure feedback exhaust gas recirculation (EGR) sensor.
- Disconnect the electrical connector.
- Disconnect the differential pressure feedback EGR sensor from the hoses.

3. To install, reverse the removal procedure.
