General Specifications

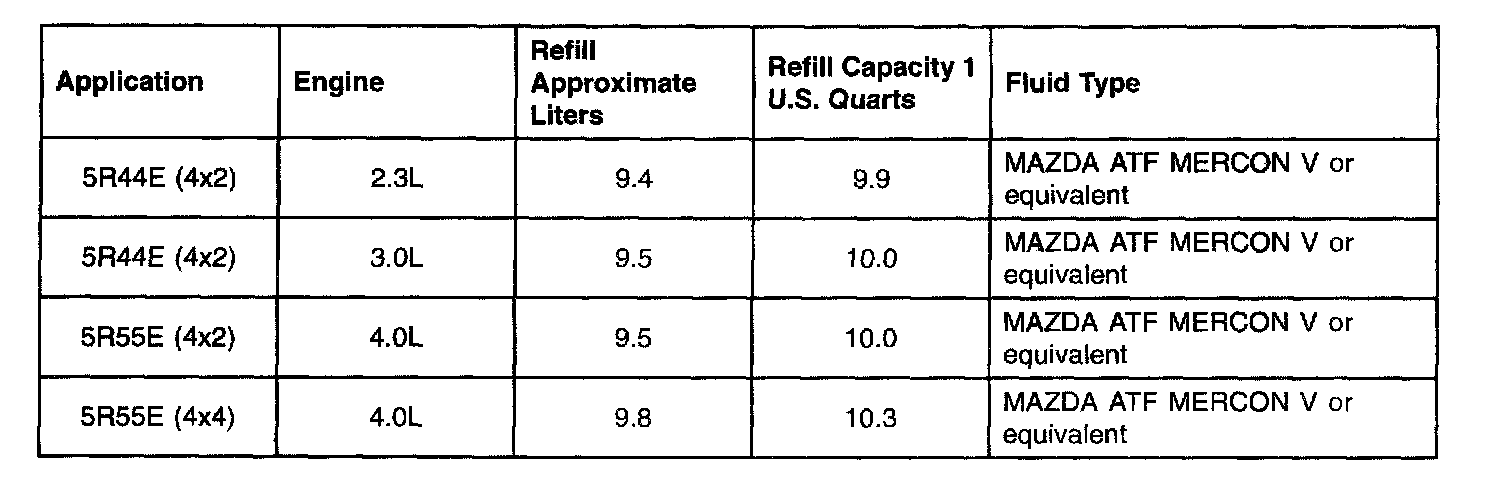

General Specifications





End Play Specifications (5R55E / 5R44E)

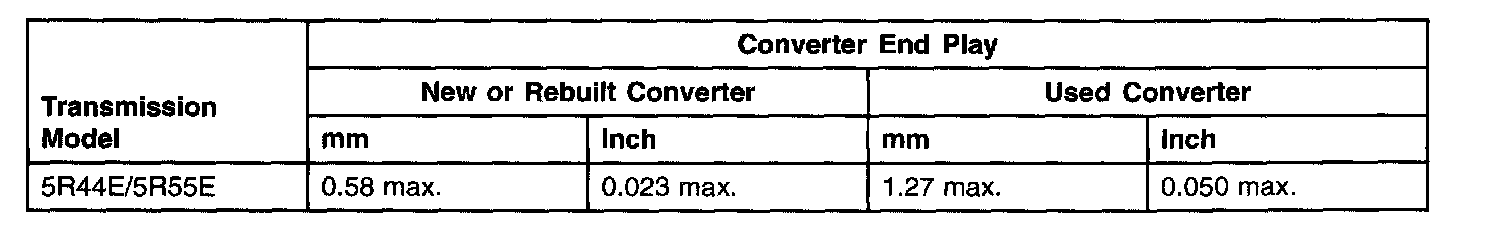

Torque Converter End Play Specifications (51344E and 51155E)

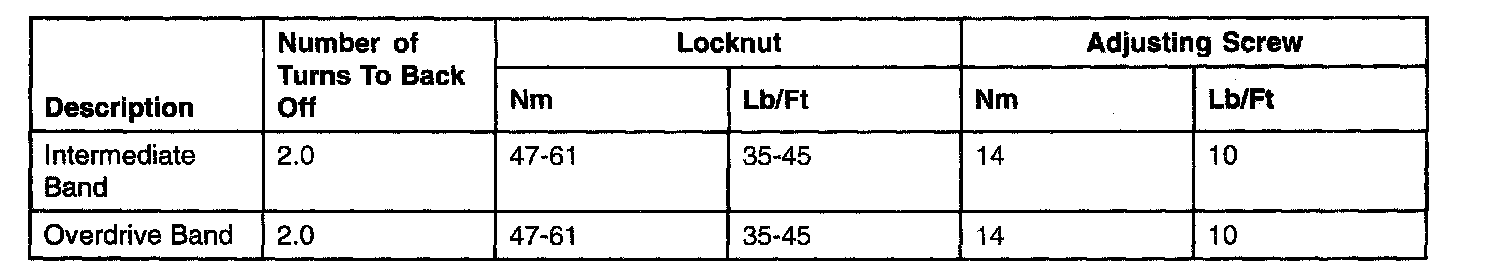

Band Adjustment And Torque Chart (5R44E and 5R55E)





Clutch Plate Usage And Clearance Specifications (5R44E / 5R55E)





Selective Snap Rings (5R44E and 5R55E)





Service Identification Model Chart (5R44E / 5R55E)

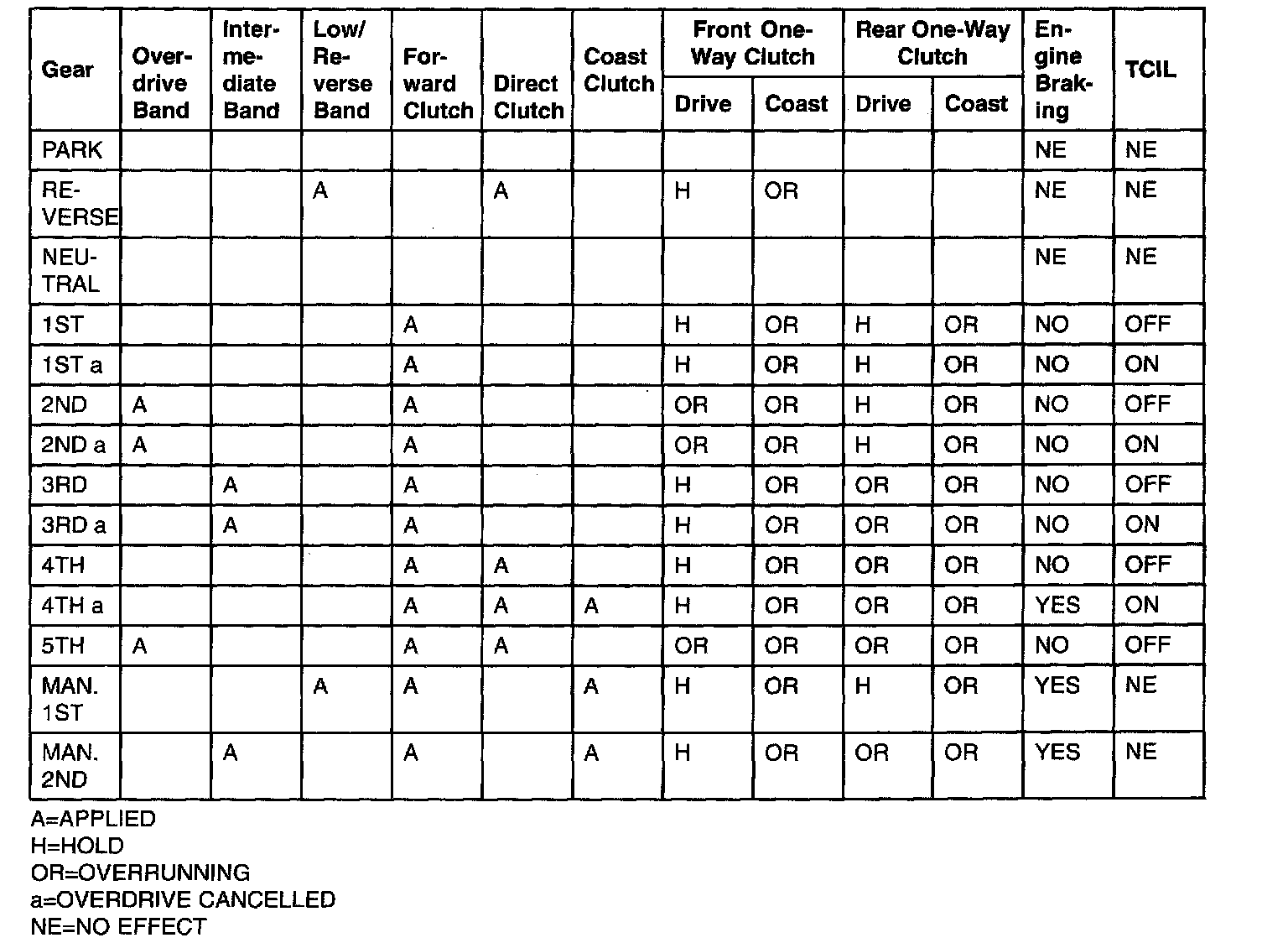

Band/Clutch Application Chart (5R44E / 5R55E)
