Oil Pan, Engine

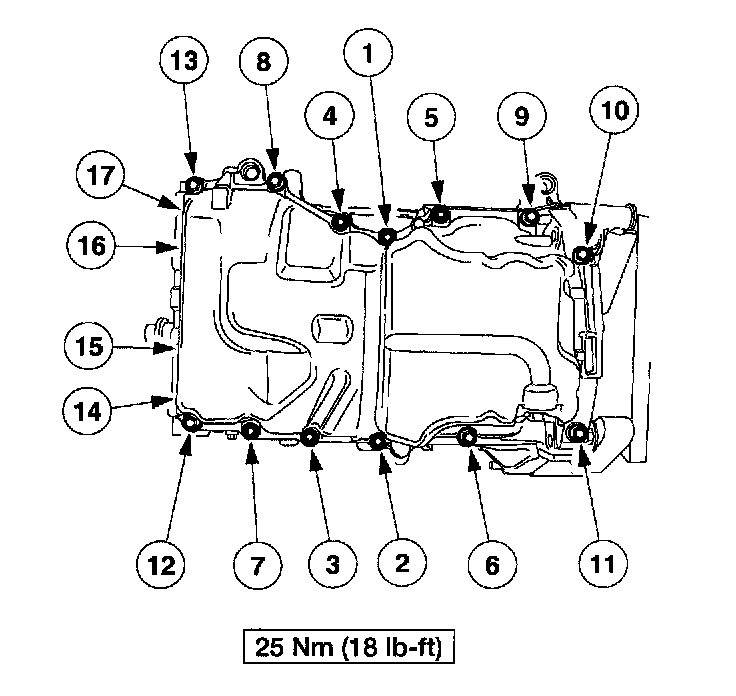

Oil pan sequence





Apply a 2.5 mm (0.1 inch) bead of silicone gasket and sealant to the oil pan. Install the oil pan. Tighten the oil pan in the sequence shown. Tighten fasteners to 25 Nm (18 lb ft.)
