Mazda
>>
2006
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Alarm Module
>>
Locations
>>
Immobilizer Unit
Immobilizer Unit

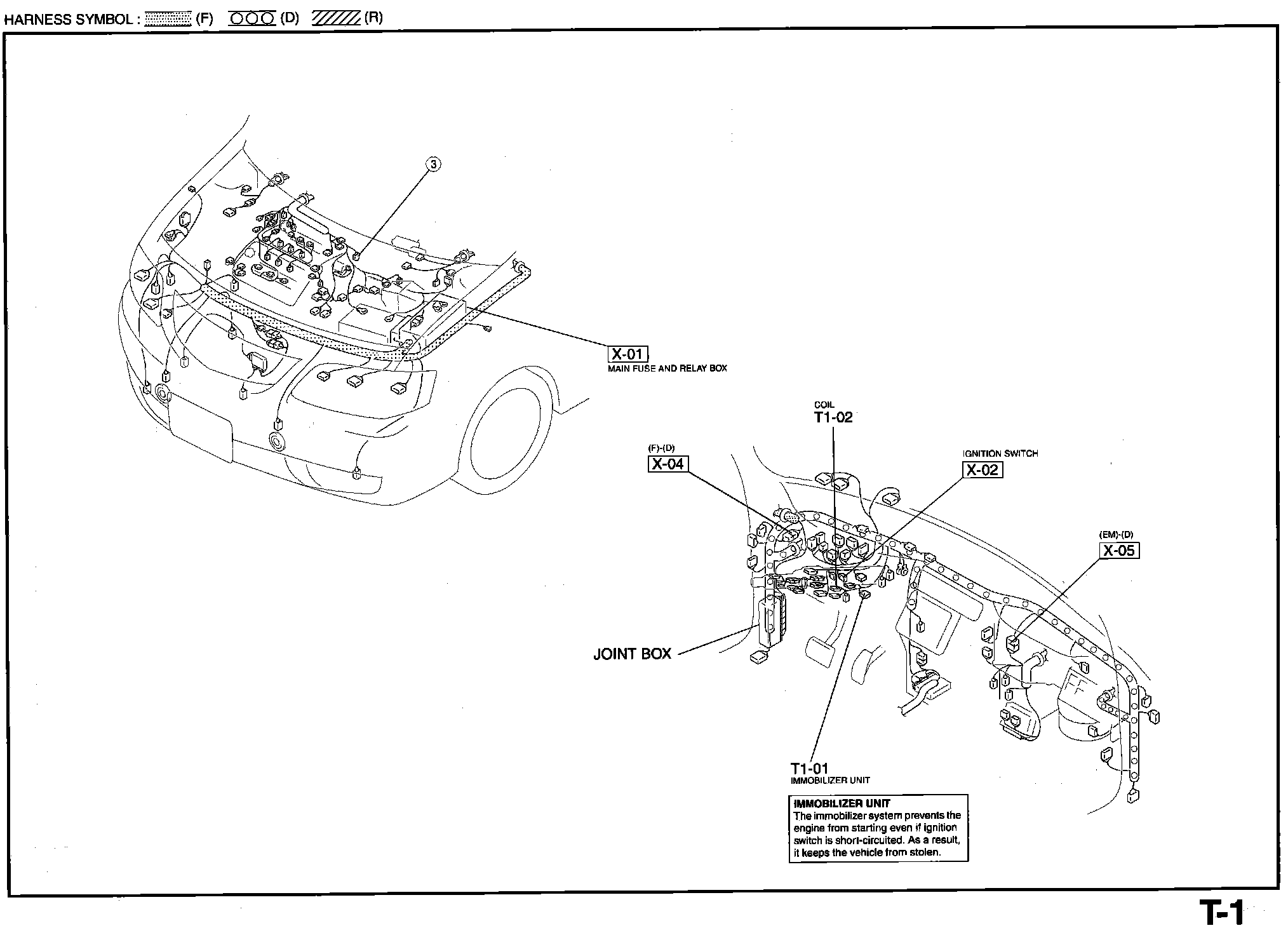

Routing View T-1:

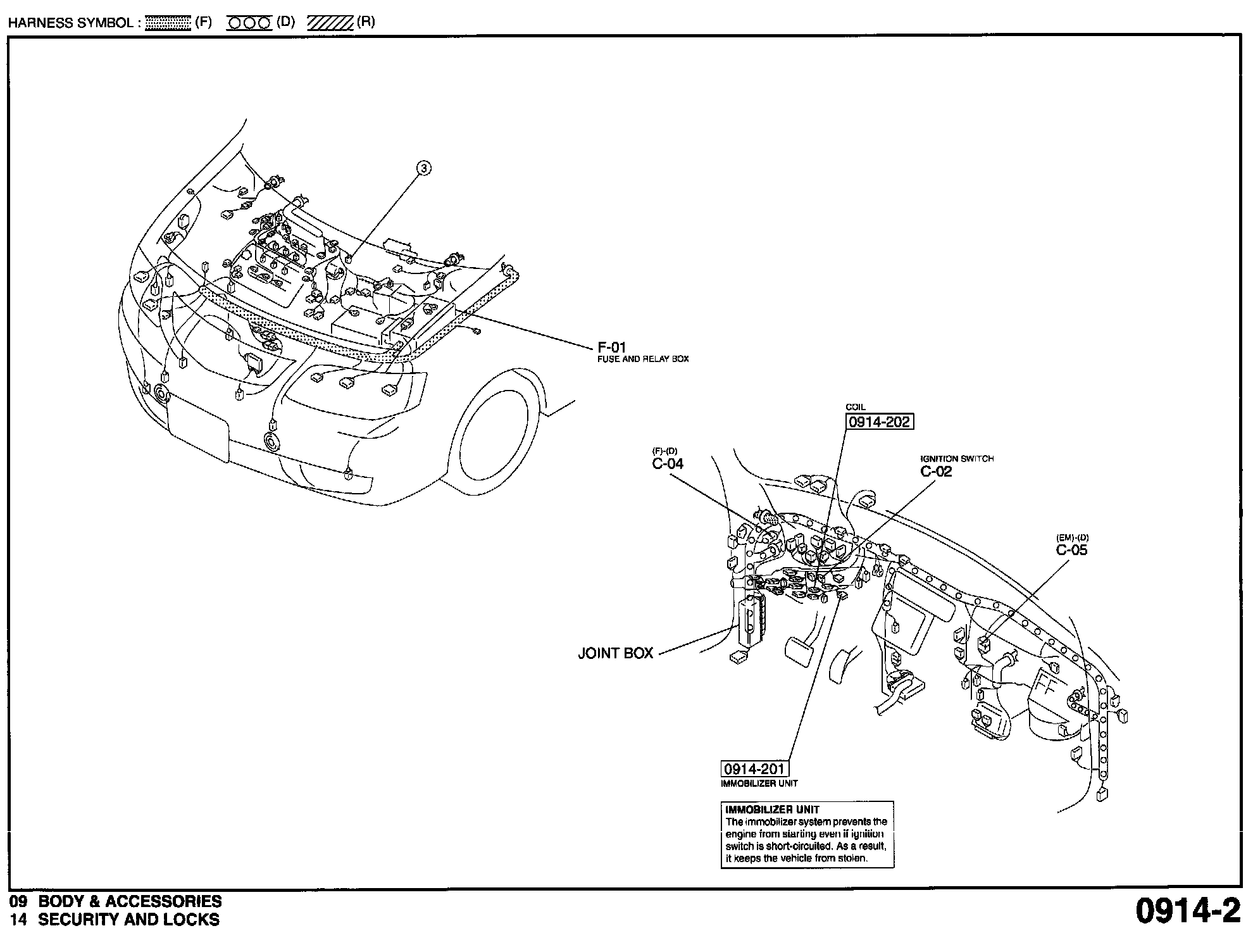

Routing View 0914-2:
