Trunk / Liftgate Lock Cylinder: Testing and Inspection

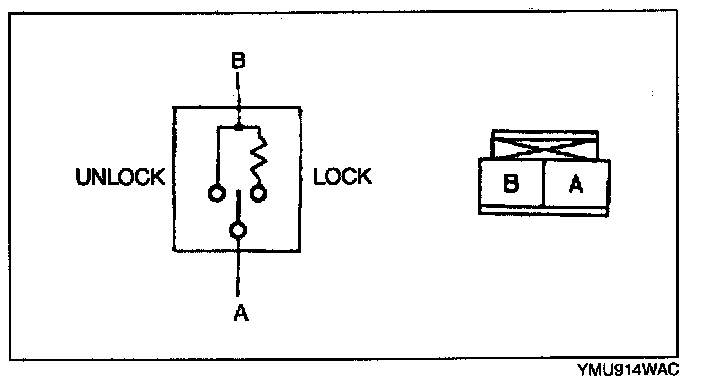

LIFTGATE LOCK CYLINDER SWITCH INSPECTION

1. Disconnect the liftgate lock cylinder switch connector.

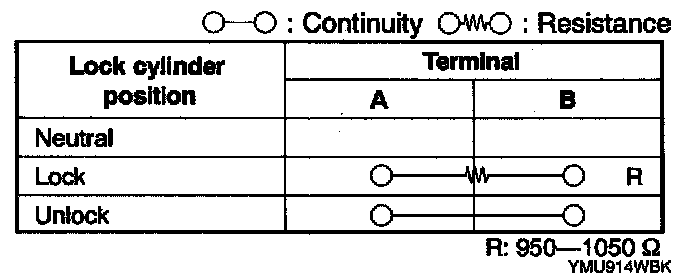

2. Inspect for continuity between the liftgate lock cylinder switch terminals using an ohmmeter.
- If not as specified, replace the liftgate lock cylinder switch.
