Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2006
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Switch
>>
Locations
>>
Connector Locations
Connector Locations

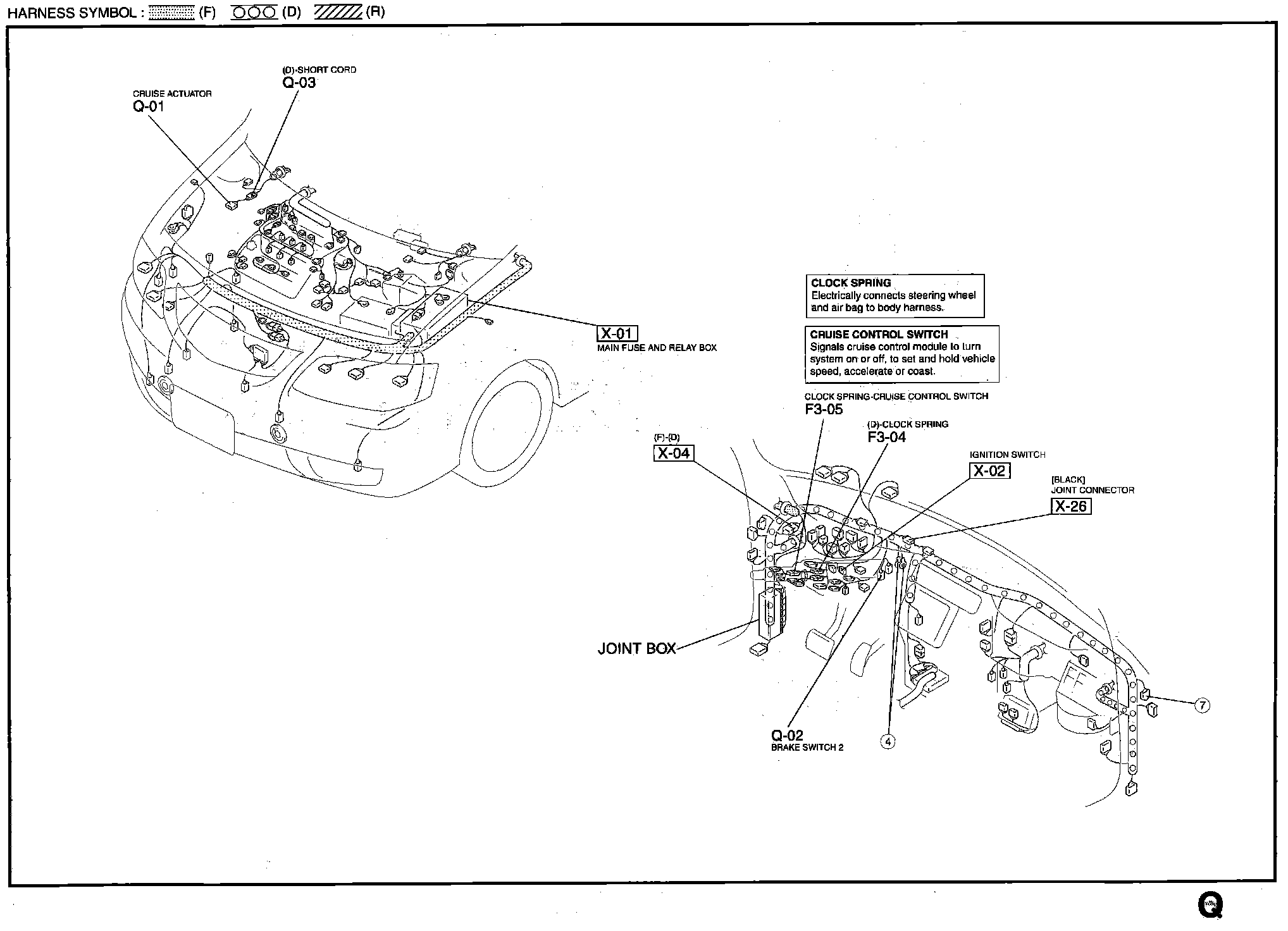

Routing View Q:

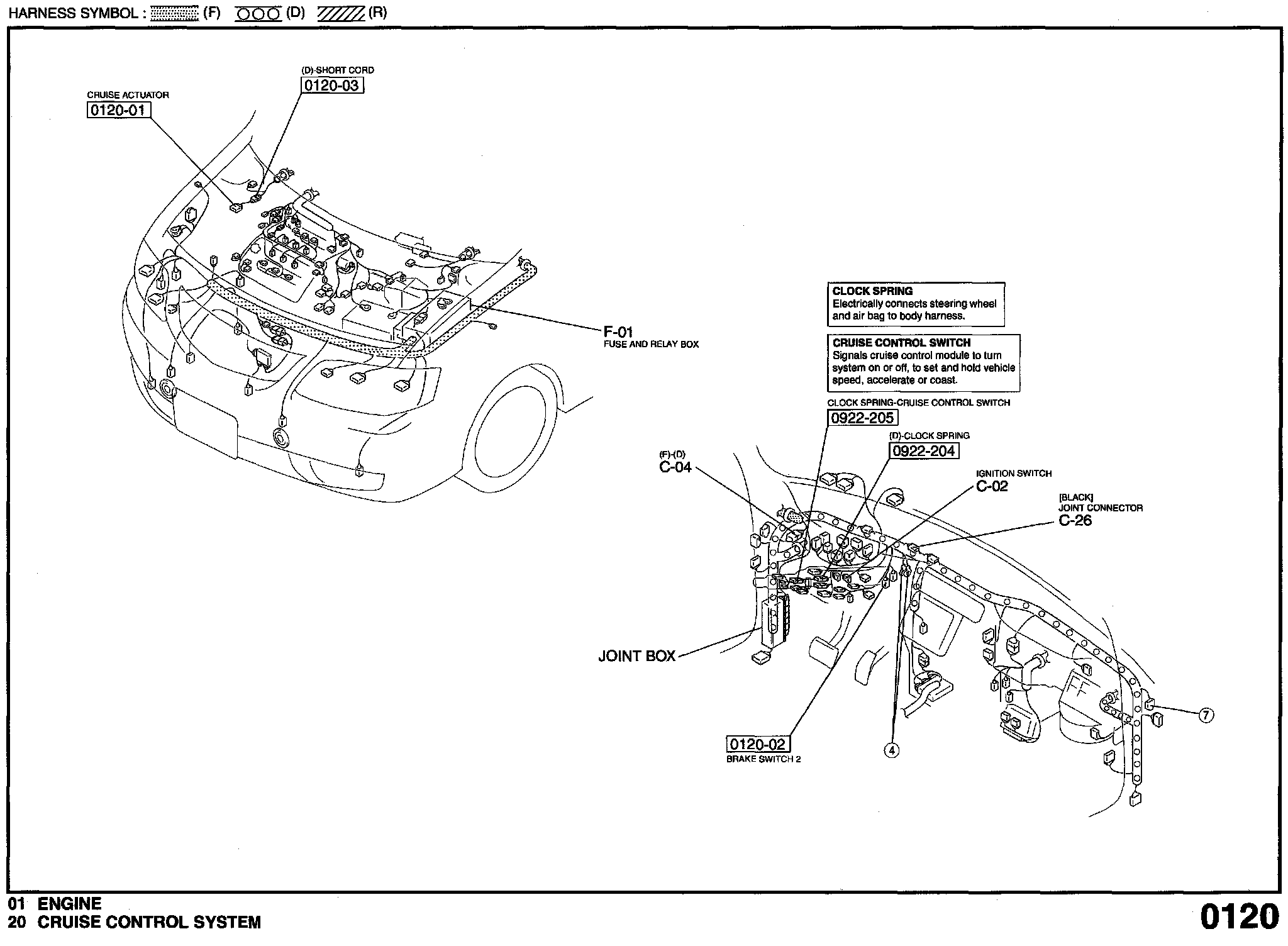

Routing View 0120:

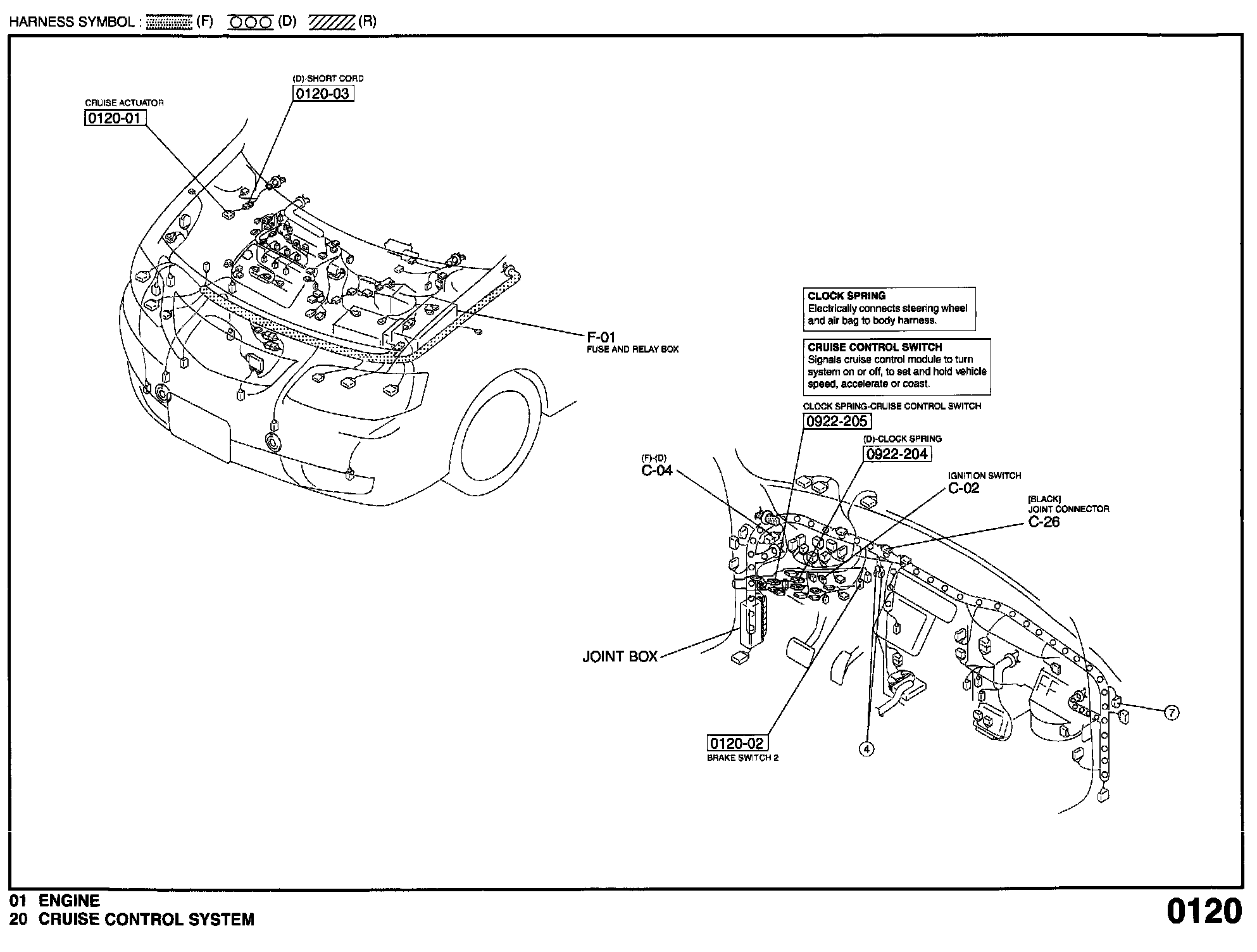

Routing View 0120:
