Front Fan Switch

FRONT FAN SWITCH INSPECTION

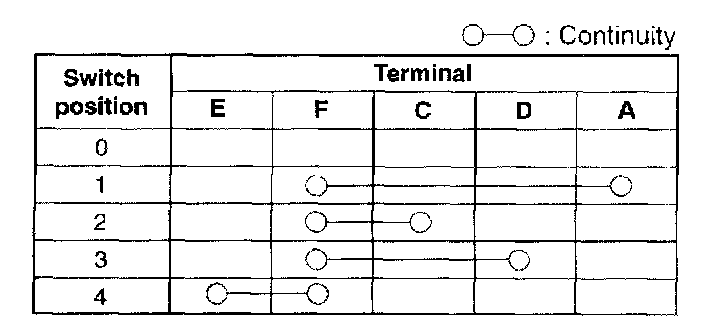

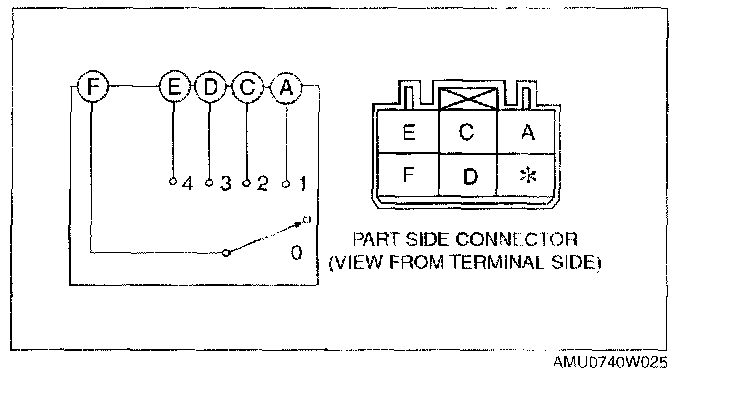

1. Inspect for continuity between the front fan switch terminals using a tester.
- If there is any malfunction, replace the front fan switch.
