Compressor Clutch: Service and Repair

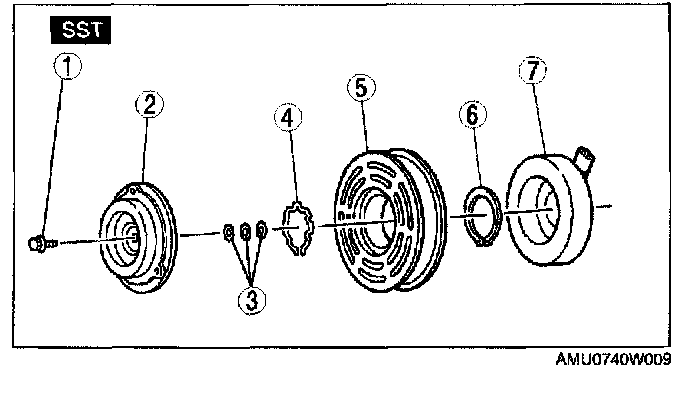

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY1. Remove the A/C compressor.

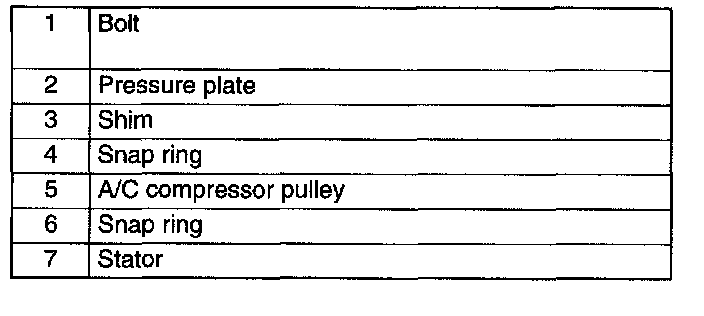

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
4. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)
Bolt Disassembly Note:

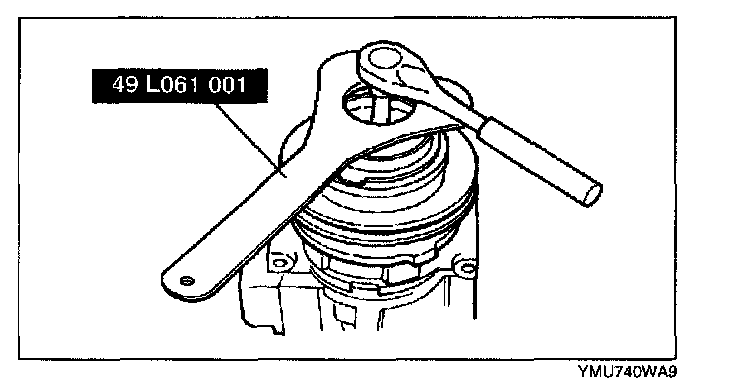

1. Remove the bolt using the SST.
